SY22657FAC

Production
Single Stage buck-boost and PFC Regulator for LED Dimming application
Datasheet
SY22657FAC Single Stage buck-boost and PFC Regulator for LED Dimming application Datasheet
    Part NumberSY22657FAC
    DescriptionPFC, CC, Flyback, PWM Dimming, Int. MOS 600V/3.8Ω
    PackageSO8
    Io_max (A)0.3
    Input Type120Vac,230Vac
    Po_max (W)12
    PF (>)0.9
    ApplicationAC Buck-Boost PWM Dim

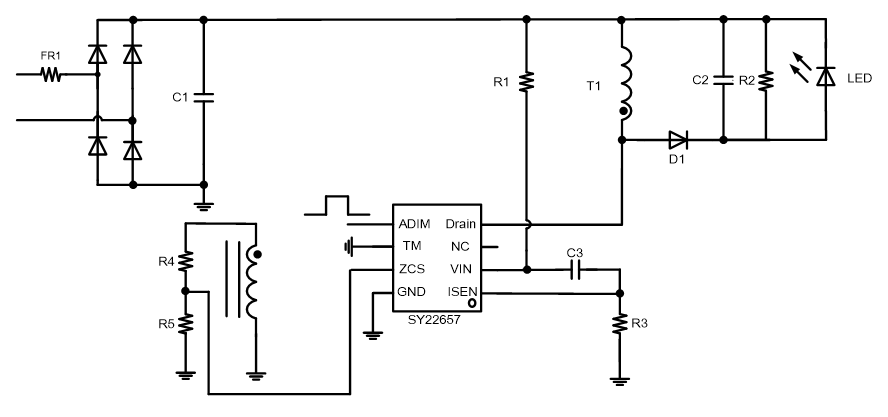

    • Integreated 600V MOSFET
    • 5%~100% Dimming Range
    • Compatible with 500Hz ~5kHz PWM
    • Fast Start up, <500ms
    • Valley Turn-on of the Primary MOSFET to Achieve Low Switching Losses
    • Power Factor >0.90
    • Reliable Short LED and Open LED Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: SO8



    Evaluation Board

    • 2022-02-21_161031

      Photo of evaluation board

    • 2022-02-21_161045

      Photo of evaluation board

    EVB_SY22657FAC

    The EVB_SY22657FAC is intended for evaluating  AC 90~264V input, 42V/200mA output Single Stage buck-boost and PFC Regulator Dimmable LED Driver
