High efficiency，18V/3A Synchronous Step Down Regulator
Datasheet
SY20653CADM High efficiency，18V/3A Synchronous Step Down Regulator Datasheet
    Part NumberSY20653CADM
    Vin_min (V)4.7
    Vin_max (V)18
    Io_max (A)3
    Vref Accuracy±1.875%
    Efficiency up to85% @ 12VIN, 3.3VOUT
    Fsw (MHz)2
    Iq (uA)
    Rdson1
    Rdson2
    Interface
    PackageMQFN3x2.8-8
    • 4.7-18V input voltage range
    • 0.8V to 5.4V adjustable output voltage
    • 3A load current capability
    • FCCM under all the Io range
    • Power Good indicator
    • External programmable soft-start time limits the inrush current
    • Output over current protection with auto recovery
    • Input UVLO
    • Over temperature protection
    • Compact Package: MQFN 3×2.8-8
    • Height: 2mm max

    Evaluation Board

    • 1

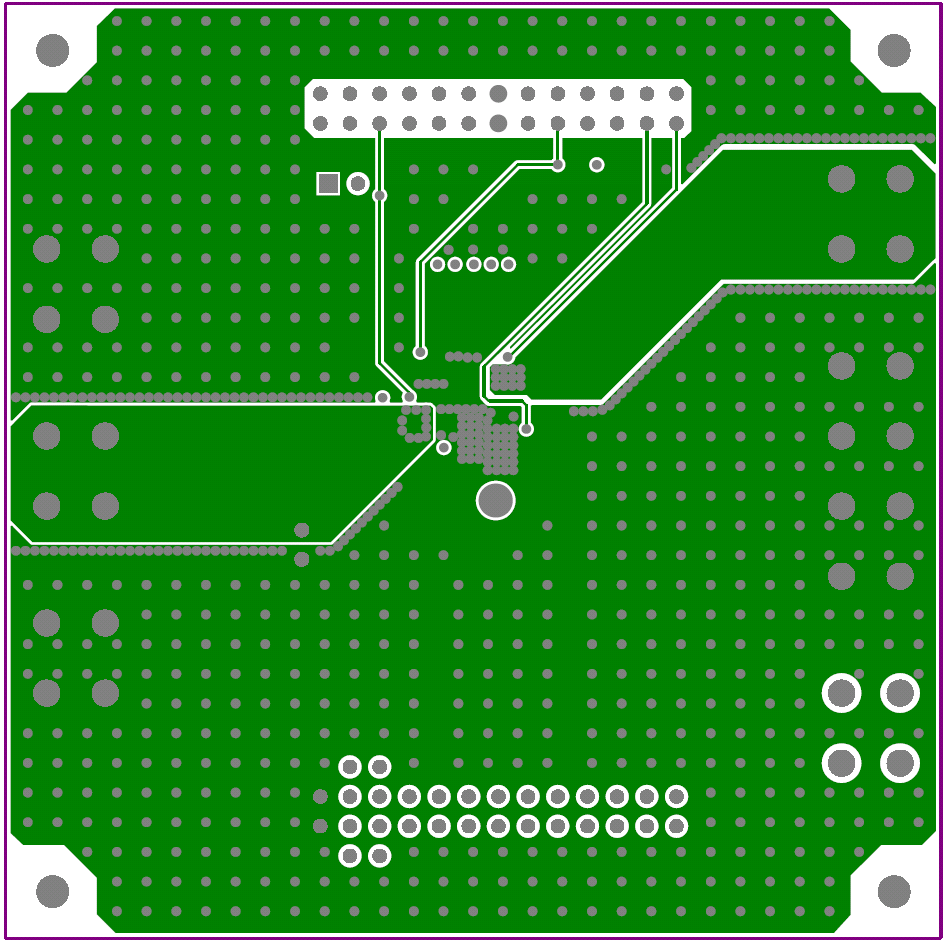

      Photo of evaluation board

    • 2

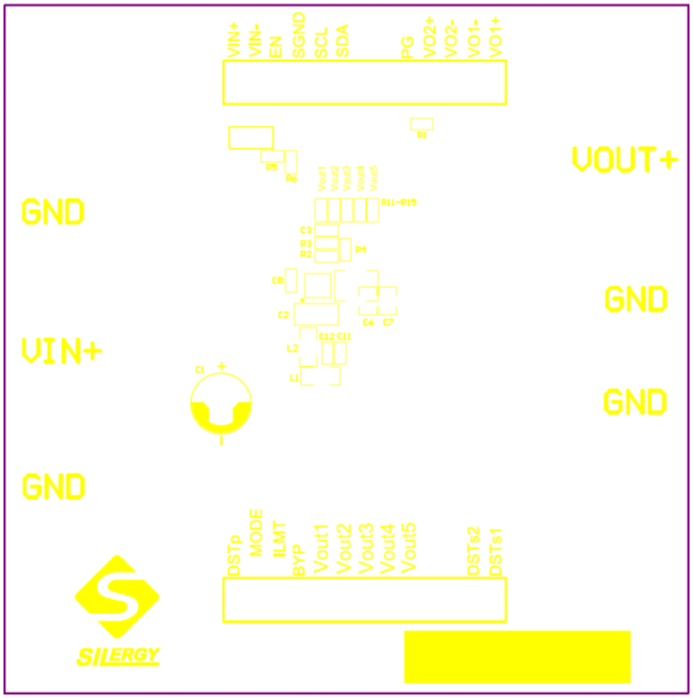

      Photo of evaluation board

    • 3

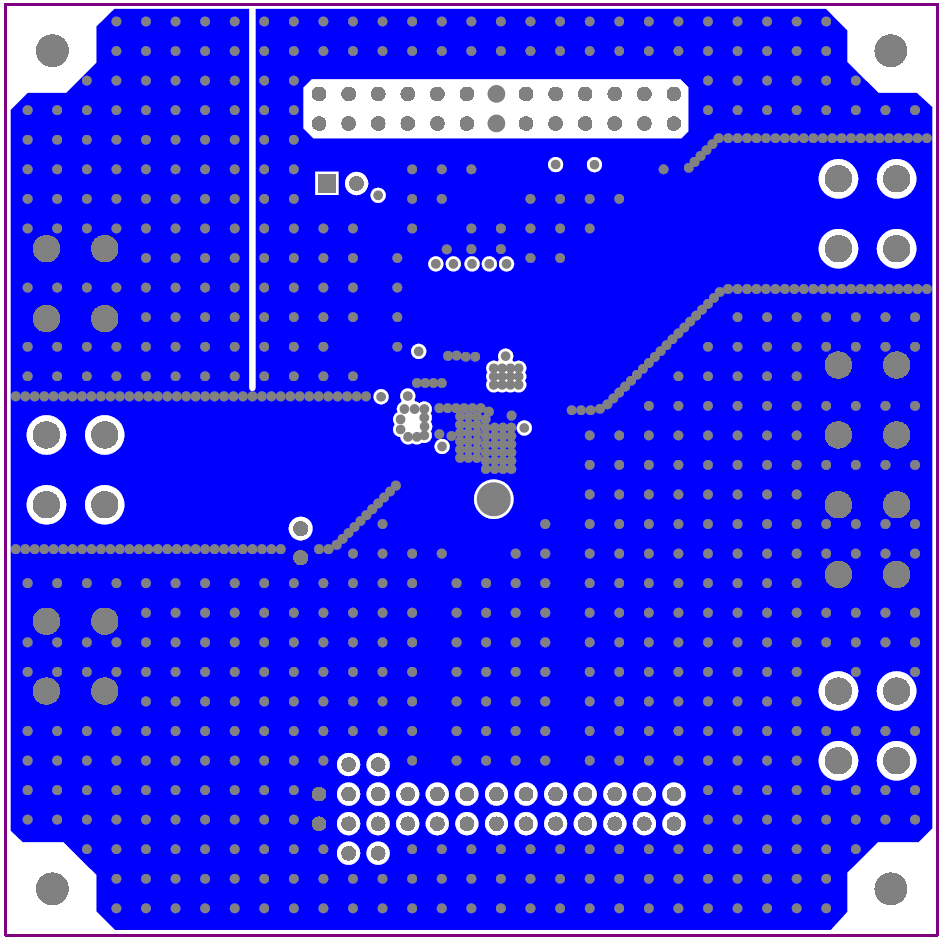

      Photo of evaluation board

    • 4

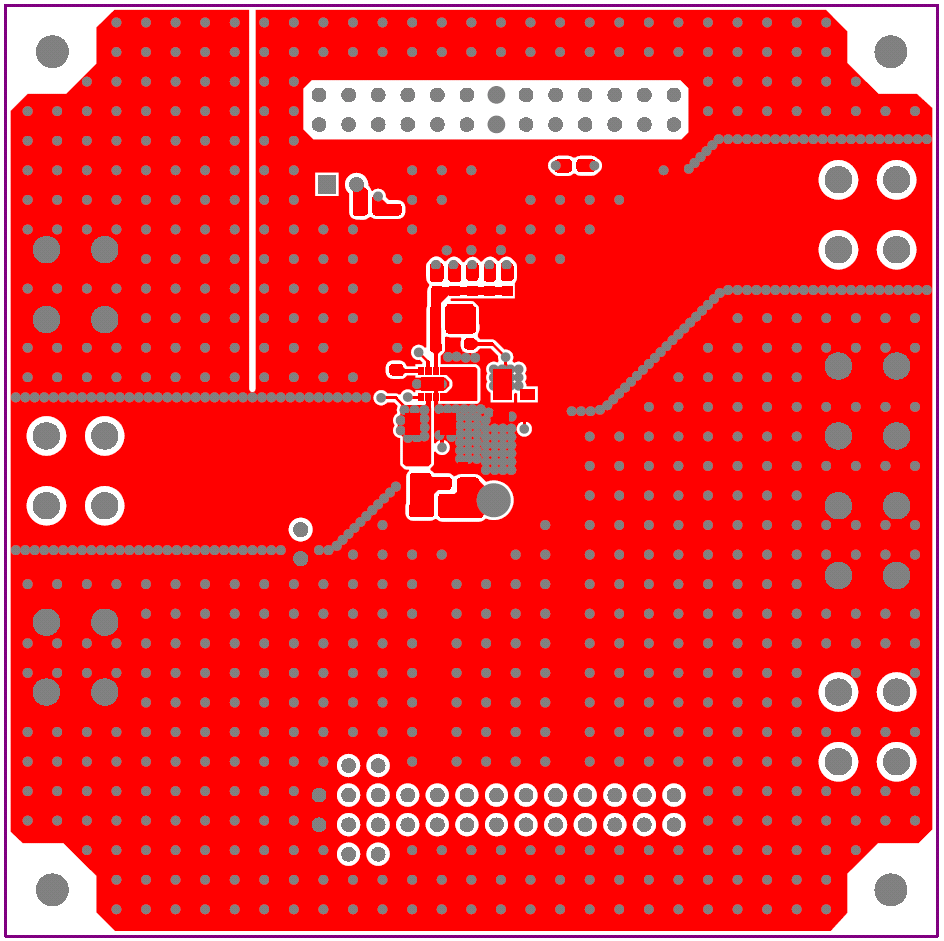

      Photo of evaluation board

    • 5

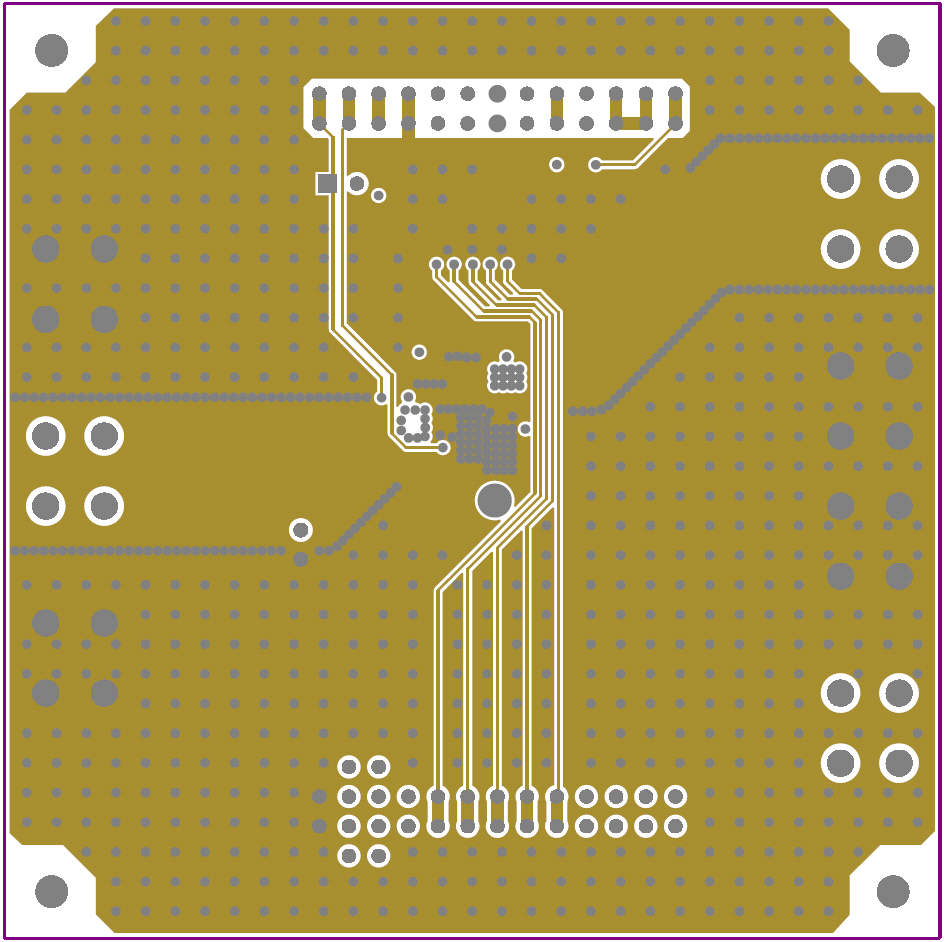

      Photo of evaluation board

    EVB_SY20653CADM

    The EVB_SY20653CADM is used to evaluate High efficiency, 18V/3A

    Synchronous Step Down Regulator SY20653CADM.
