High Efficiency 1.5A, 600kHz, 23V Input, Inductor Built-in Synchronous Buck Regulator
| Part Number | SY20654QLC |
|---|
| Vin_min (V) | 5 |
|---|
| Vin_max (V) | 23 |
|---|
| Io_max (A) | 1.5 |
|---|
| Vref Accuracy | ±1% |
|---|
| Efficiency up to | 87.5% @ 12VIN, 3.3VOUT |
|---|
| Fsw (MHz) | 0.6 |
|---|
| Iq (uA) | |
|---|
| Rdson1 | |
|---|
| Rdson2 | |
|---|
| Interface | |
|---|
| Package | QFN3×4-16 |
|---|
- 5V to 23V Input Voltage Range
- 1.5A Continuous for 5VOUT, 12VIN, 600kHz at 105°C
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal Soft-start Limits the Inrush Current
- Power Good Indicator
- Output Over Current Protection with Auto Recovery
- Output Short Circuit Protection
- Over Temperature Protection with Auto Recovery
- Input UVLO
- RoHS Compliant and Halogen Free
- Compact Package: QFN3×4-16
Evaluation Board

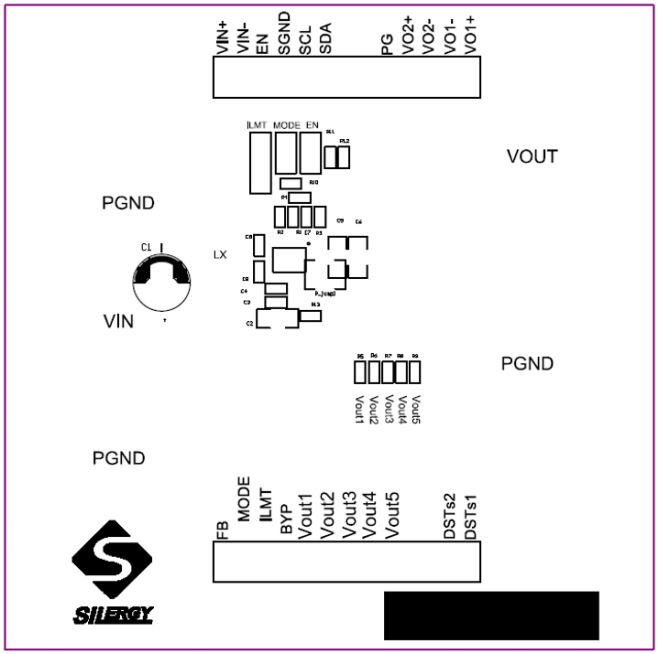

Photo of evaluation board

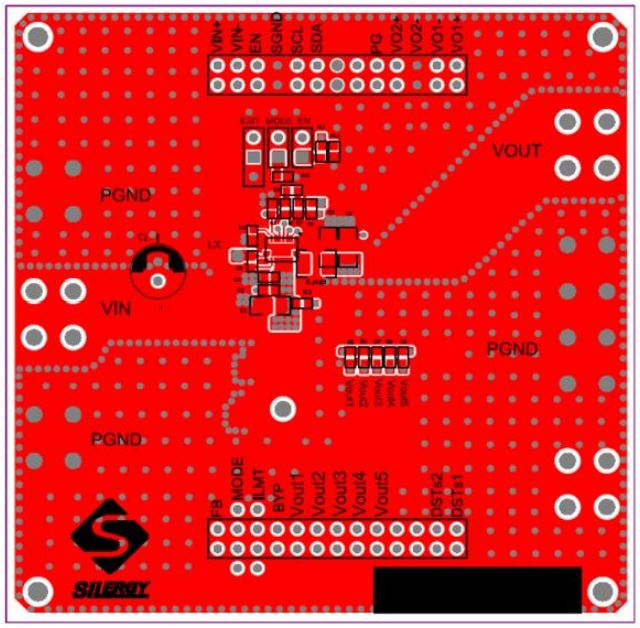

Photo of evaluation board

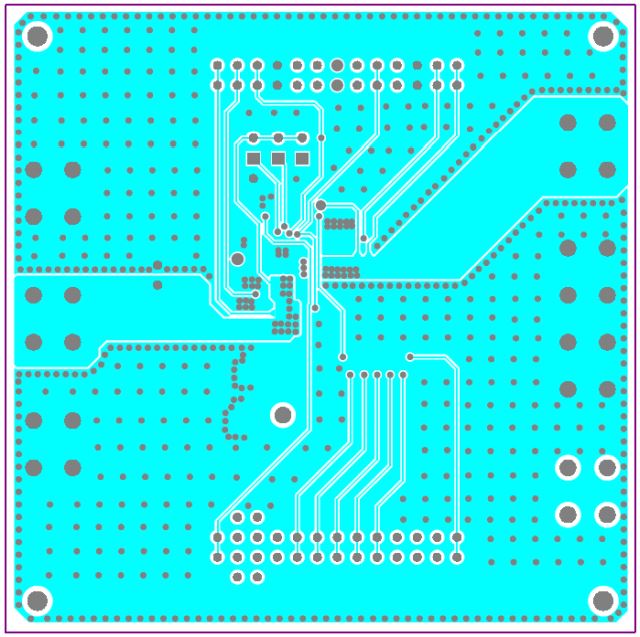

Photo of evaluation board

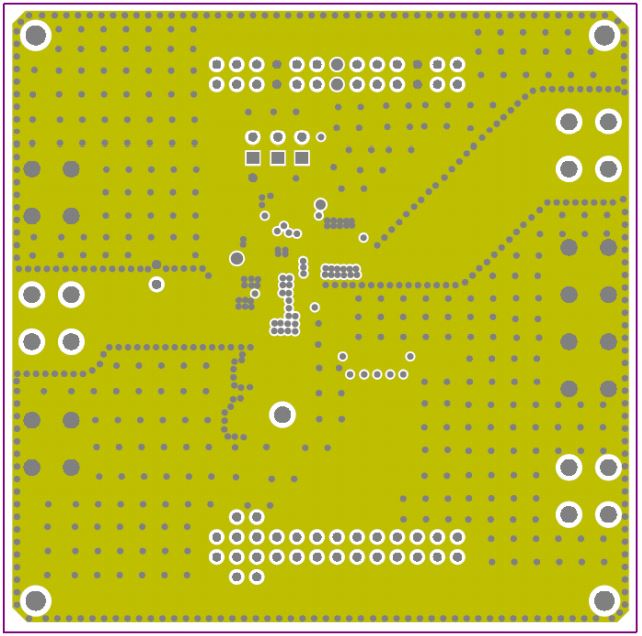

Photo of evaluation board

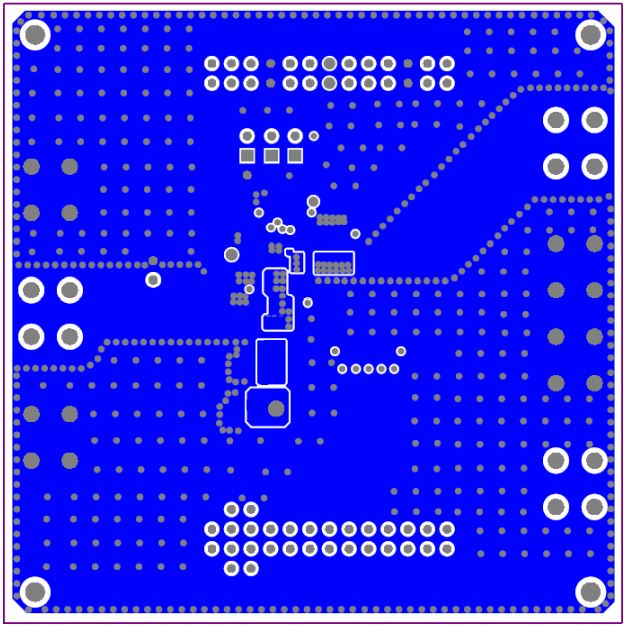

Photo of evaluation board
EVB_SY20654QLC is used to evaluate high efficiency 1.5A, 600kHz, 23V input inductor built-in synchronous buck regulator SY20654QLC.
