SY22653FHC

Production
Datasheet

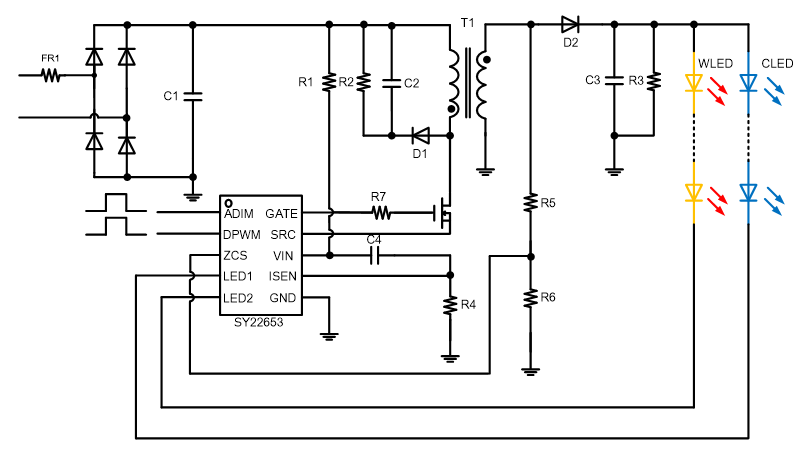

Single Stage non-isolated Flyback and PFC Regulator for Warm/Cold white LED color mixing and Dimming application
    Part NumberSY22653FHC
    ApplicationPFC Controller
    TopologyFlyback
    Dimming ModeWarm&Cold
    Input Type110Vac,220Vac
    PF (>)0.9
    Idrive_max (mA)
    Po_max (W)15
    Protection ModeOLP,SLP
    Features / Special FunctionFast Start-up,Non-Isolated
    PackageSOP10
    Temp Range-40℃ to 125℃
    • 5%~100% Dimming Range
    • 0%~100% Color Mixing Range
    • Compatible with 500Hz ~5kHz PWM
    • Fast Start up, <500ms
    • Valley Turn-on of the Primary MOSFET to Achieve Low Switching Losses
    • Power Factor >0.90
    • Reliable Short LED and Open LED Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: SSOP10



    Evaluation Board

    • 2022-02-21_160547

      Photo of evaluation board

    • 2022-02-21_160601

      Photo of evaluation board

    • 2022-02-21_160547

      Photo of evaluation board

    EVB_SY22653FHC

    The EVB_SY22653FHC is intended for evaluating  AC 176~264V input, 40V/240mA output Single Stage non-isolated Flyback and PFC controller Warm/Cold LED Driver
