High- or Low-Side, Bidirectional, High Accuracy Current Sense Amplifier
- Parameters
- Features
- Description
Part Number | SY24647AHT |
---|
Description | High Accuracy Current Sense Amplifier |
---|
Vcc_min (V) | 3 |
---|
Vcc_max (V) | 5.5 |
---|
CM Sense Range | -0.1-26V |
---|
DM Sense Range | ±24mV |
---|
Iq (uA) | 78 |
---|
Gain | 200V/V |
---|
Accuracy (max) | / |
---|
Gain Error (max) | ±0.5% |
---|
Offset (max) | ±35uV |
---|
Features / Special Function | High- or Low-Side, Bidirectional |
---|
Package | SOT363 |
---|
- Voltage-output, Current-shunt Monitor
- Wide Common Mode Operation Range: -0.1V~26V
- Gain=200V/V
- Amplifier’s Output Referenced to VREF input
- Shunt Drop Range:
-- -10mV to 10mV (VCC=5V,REF=2.5V)
-- 1mV to 24mV (VCC=5V,REF=0V)
- Low Offset Voltage: ±35μV (Maximum)
- 0.5μV/°C Offset Drift (Maximum)
- Accuracy: ±0.5% Gain Error (Maximum)
- 10ppm/°C Gain Drift (Maximum)
- Quiescent Current: 100μA (Maximum)
- Packages: SOT363
The SY24640 is a current sensing comparator with over-current protection and used for the over-current protection applications.
It measures the voltage developed across a shunt resistor and compares this voltage with an externally configured threshold. Independent of the supply voltage, the common voltage range of SY24640 is between 0V to 36V and the differential input range from 0mV to 250mV.
An open drain alert output can be configured to operate in either transparent mode or latched mode. The device response time setting is selectable, which allows over-current alerts to be issued within 10μs.
The SY24640 operates from a single 2.7V to 5.5V supply, drawing a typical supply current of 135μA. The device is provided in DFN2×2-10 package, and is specified over the extended operating temperature range of –40°C to +125°C.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

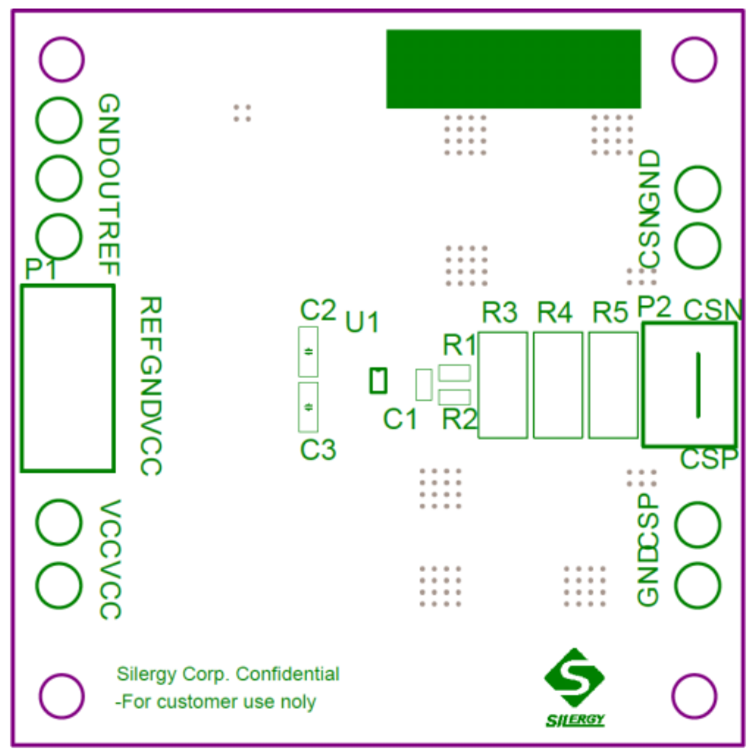

The EVB_SY24647AHT is intended for evaluating High- or Low-Side, Bidirectional, High Accuracy Current Sense Amplifier SY24647AHT.
