SY6881PTC - Programmable 5A Overvoltage Protection Switch


  • Surge Protection IEC 61000-4-5 to +100V
  • Extremely Low Power Path Resistance RPWPT=32mΩ typ.
  • Programmable Over Voltage Threshold from +4V to +22V
  • Default Over Voltage Threshold 6.8V
  • Open Drain Indicator Pin for Operation Status
  • Internal Soft Start to Prevent In-rush Current
  • Thermal Shutdown Protection & Auto Recovery
  • IEC61000-4-2 Air Discharge > 15KV
  • IEC61000-4-2 Contact Discharge > 8KV
  • RoHS Compliant and Halogen Free
  • Compact Package: CSP 1.32mmx1.86mm

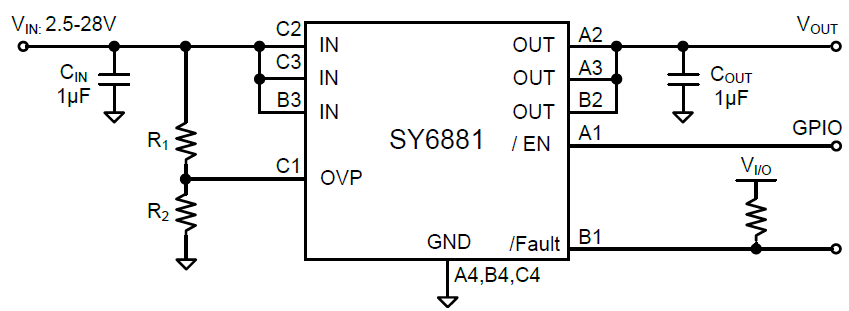

Typical Application


SY6881 is a programmable over voltage protection switch with high current capability to prevent damage to the downstream system with low voltage rating. It achieves wide input voltage range from DC 2.5V to DC 28V. Extremely low power path resistance RPWPT helps to reduce power loss during the normal operation. An open drain indicator pin is opened to show the operation status of device. It integrates the over-temperature protection shutdown and auto-recovery with hysteresis to protect against over current events. This IC along with small CSP (1.32mmx1.86mm) footprint provides small PCB area application.


  • Smart Phone
  • Tablet PCs
  • Mobile Device
