SY20623AQNC - High Efficiency 3MHz, 3A Inductor Built-in Synchronous Step Down Regulator

Features

  • Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
  • 2.75-5.5V Input Voltage Range
  • 3 MHz Switching Frequency Minimizes the External Components
  • Internal Soft-start Limits the Inrush Current
  • 3A Continuous Output Current Capability
  • Shutdown Mode Draws<0.1μA Supply Current
  • 100% Dropout Operation
  • Power Good Indicator
  • OCP/UVLO/OTP Protections
  • RoHS Compliant and Halogen Free
  • Compact Package: QFN3×3-10

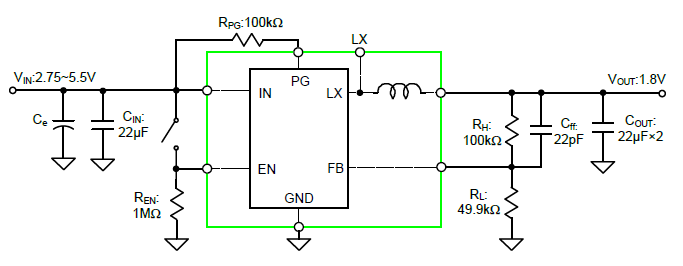

Typical Application

Description

The SY20623A is a 3MHz, 3A synchronous step-down converter which integrates an inductor and a control IC in one tiny package (3.0mm×3.0mm, H=1.1mm max). It operates over a wide input voltage range from 2.75V to 5.5V. It integrates main switch and synchronous switch with very low RDS(ON)  to minimize the conduction loss.

Applications

  • Mobile Phone, Smart Phone
  • Bluetooth Headsets
  • WiMAX PDA, MID, UMPC
  • Portable Game Console
  • Digital Camera, Camcorder
