SY23422AABC

Production
Secondary Side Synchronous Rectification，Controller for PoE Application

Datasheet
SY23422AABC Secondary Side Synchronous Rectification，Controller for PoE Application Datasheet
    Part NumberSY23422AABC
    DescriptionSE Controller
    Po_max (W)60
    Vo_min (V)5
    Vo_max (V)15
    Integrated FETsNO
    Work ModeDCM,CrCM
    ApplicationPoE,PSR,SSR
    Protection ModeOTP
    Features / Special FunctionGate Amplitude Control Technology
    PackageSOT23-6
    • Gate Amplitude Control Technology for SR control
    • Secondary-Side Controller Optimized for 5V~15V Systems
    • Operating Frequency up to 300kHz.
    • Suitable for Discontinuous Mode (DCM) and Critical Conduction Mode (CrCM)
    • Suitable for Primary Side Control(PSR) and Secondary Side Control(SSR)
    • RoHS Compliant and Halogen Free
    • Compact Package:SOT23-6

    Evaluation Board

    • 23422A-9

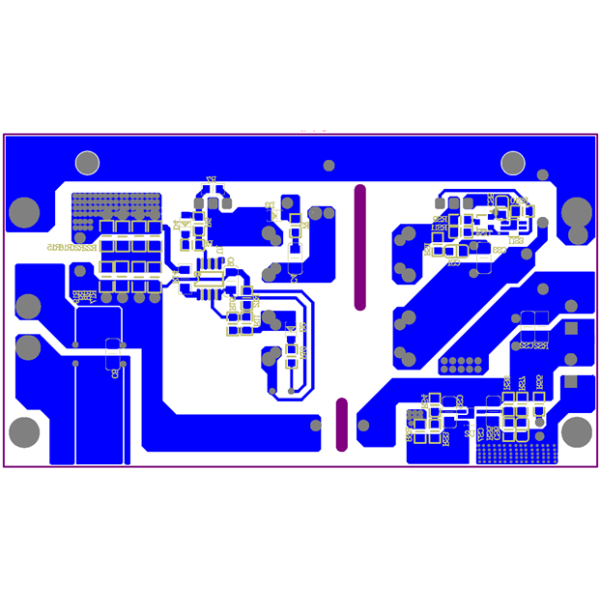

      Photo of evaluation board

    • 23422A-8

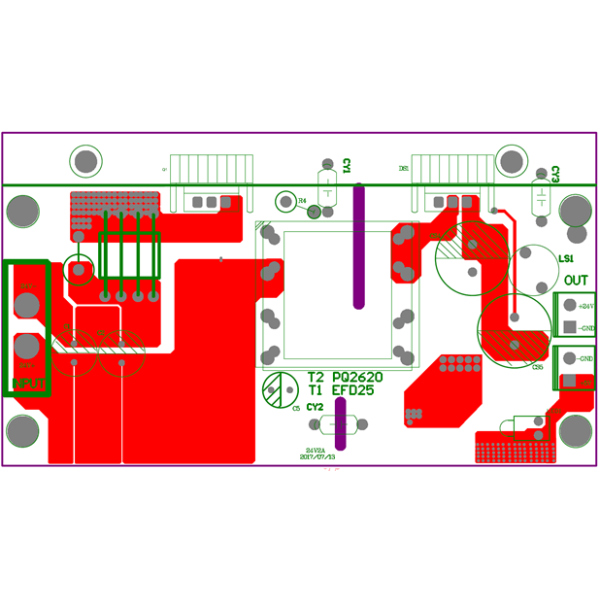

      Photo of evaluation board

    EVB_SY23422AABC

    The EVB_SY23422AABC is used to evaluate a high-performance controller and driver for standard and logic-level N-channel MOSFET power devices used for low-voltage secondary-side synchronous rectification.
