SY6280AAAC - 5.5V, 2A Low Loss Power Distribution Switch

Features

  • Input Voltage: 2.4V to 5.5V
  • 2A Load Current Capability
  • Programmable Current Limit
  • Enable Polarity: Active High
  • Over Temperature Protection
  • Reverse Blocking (No Body Diode)
  • OUT Can be Forced Higher Than IN at Shutdown
  • Output Discharge Function
  • SY6280: Auto Output Discharge Function
  • SY6280A: No Output Discharge Function
  • Compact SOT23-5 Package Minimizes the Board Space

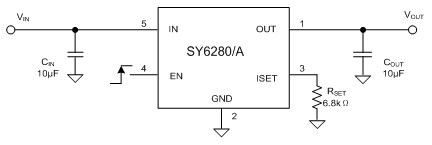

Typical Application

Description

SY6280/ SY6280A is ultra-low RDS(ON) switch with programmable current limit to protect the power source from over current and short circuit conditions. They incorporate over temperature protection and reverse blocking functions. SY6280 automatically discharges the output capacitors during shutdown.

Applications

USB 3G Datacard
USB Dongle
MiniPCI Accessories
