SY6282LACC - 6V, 2.5A Low Loss Power Distribution Switch

Features

  • Input Voltage: 2.4V to 6V
  • 2.5A Load Current Capability
  • Programmable Current limit
  • Over Temperature Protection
  • Reverse Blocking (No Body Diode)
  • OUT Can be Forced Higher Than IN at Shutdown
  • Compact TSOT23-5 Package Minimizes the Board Space
  • RoHS Compliant and Halogen Free

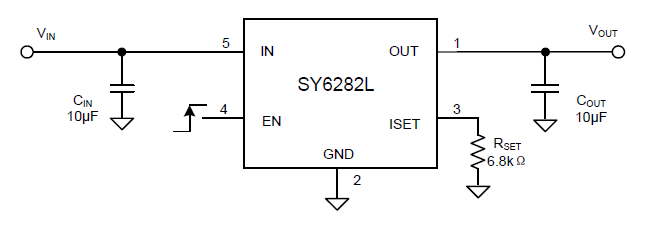

Typical Application

Description

SY6282L is ultra-low RDS(ON) switch with programmable current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.

Applications

  • USB3GDatacard
  • USB Dongle
  • MiniPCI Accessories
  • USB Charger
  • Public Place Multi-USB Charger
