SY6283ADRC - Low Loss Power Distribution Load Switch

Features

  • Distribution Voltages: 2.5V to 5.5V
  • Over Temperature Shutdown and Automatic Retry
  • Reverse Blocking (No Body Diode)
  • At shutdown, OUT Can Be Forced Higher than IN
  • Built-in Soft-start
  • Output Discharge Function
  • Auto Output Discharge Function
  • RoHS Compliant and Halogen Free
  • Compact Packages Minimize Board Space: DFN1.2x1.6-4

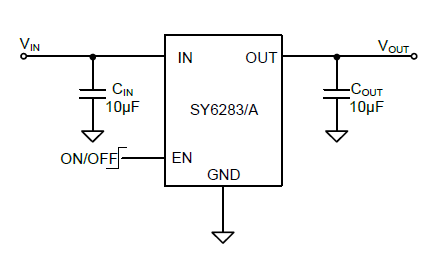

Typical Application

Description

The SY6283A is an ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.
