SY6288D7AAC - Low Loss Power Distribution Switch

Features

·       Distribution Voltages: 2.5V to 5.5V

·       Over Temperature Shutdown and Automatic Retry

·       Reverse Blocking (No Body Diode)

·       At Shutdown, OUT Can be Forced Higher Than IN

·       Fault Flag (OCB) Output if Over Current, Thermal Shut Down, Reverse Blocking Happens

·       Automatic Output Discharge at Shutdown

·       Built-in Softstart

·       0.4ms Rise Time

·       RoHS Compliant and Halogen Free

·       Active Low/2.5A

·       Compact Packages Minimize Board Space: SOT23-5

·       UL Certification NO. E491480

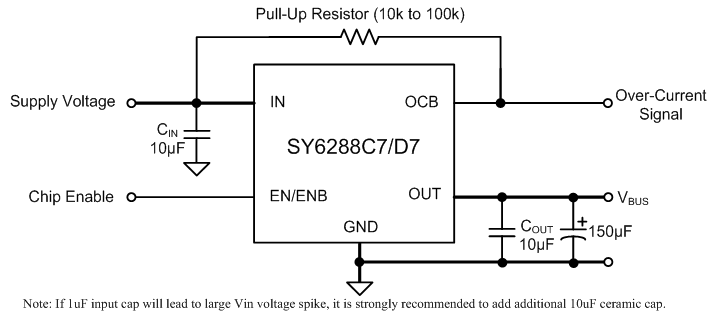

Typical Application

Description

SY6288D7 is an ultra-low RDS(ON) switch with current limiting function to protect the power source from over current and short circuit conditions.
