SY6288F3ABC - 3A Low Loss Power Distribution Switch

Features


  • Input Voltage: 2.5V to 5.5V
  • Extremely Low Power Path Resistance: 45mΩ (typ.)
  • 3A Load Current Capability
  • Over Temperature Shutdown and Automatic Retry
  • Reverse Blocking (no Body Diode)
  • Fault Flag (OCB) Output for over Current and Fault Conditions
  • Programmable Current Limitation
  • At shutdown, OUT Can Be Forced Higher Than IN
  • Built-in Soft-start
  • Compact Package Minimizes the Board Space: SOT23-6
  • RoHS Compliant and Halogen Free
  • UL Certification NO. 20160229-E333762

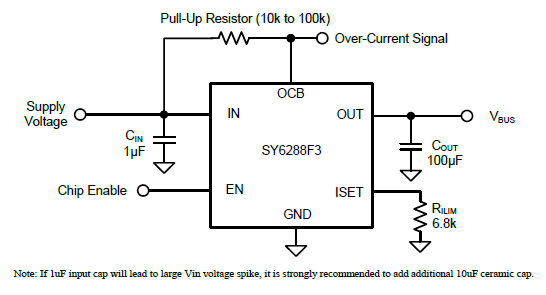

Typical Application

Description

The SY6288F3 is an ultra-low RDS(ON), 3A Low Loss Power Distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.

Applications


  • USB 3.1 Application
  • USB3GDatacard
  • USB Dongle
  • MiniPCI Accessories
  • USB Charger
  • Public Place Multi-USB Charger
