SY6875ADBC - Programmable Current Limit Switch


  • Wide Input Voltage Range From 2.5V to 15V with surge up to 30V
  • Extremely Low RDS(ON) for the Integrated Protection Switch: 40 mΩ
  • Programmable Soft-Start Time
  • Programmable Current Limit
  • Short-circuit Protection
  • Selectable Input Range and Clamping Output Voltage Threshold.
  • Enable Interface Pin
  • Thermal Shutdown Protection & Auto Recovery
  • RoHS Compliant and Halogen Free
  • Compact package: DFN3X3-10

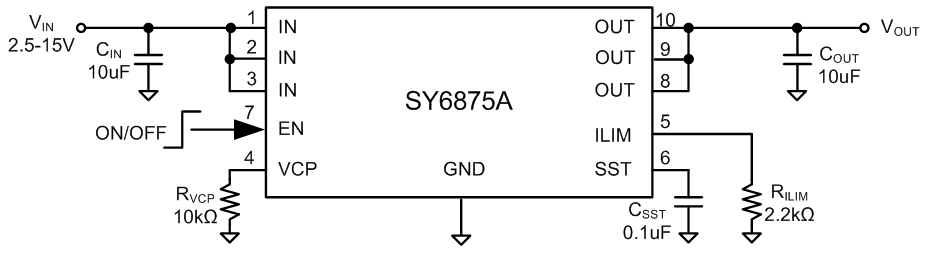

Typical Application


SY6875A is a programmable current limit switch with input voltage range selection and output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel FET helps to reduce power loss during the normal operation. Programmable soft-start time controls the slew rate of the output voltage during the start-up time. Independent enable control allows the complicated system sequencing control. It integrates the over-temperature protection shutdown and auto-recovery with hysteresis. This IC along with small DFN3X3-10 footprint provides small PCB area application.


  • Notebook PC
  • I-pad Mini
  • Server
  • Service PC
