SY6880CPGC - Programmable High Current Overvoltage Protection Switch With Integrated Reverse Blocking FET

Features

  • VIN=2.5V to 28V. Absolute Maximum VIN=29V
  • Extremely Low Power Path Resistance RPWPT=38mΩ typ.
  • Internal 6.8V Default OVP Thresholds
  • Open-drain Indicator Pin for Operation Status
  • Surge Protection up to +80V
  • Internal Soft-start to Prevent In-rush Current
  • Thermal Shutdown Protection & Auto Recovery
  • Enable Control
  • RoHS Compliant and Halogen Free
  • Compact Package: CSP 2.0mm×1.8mm

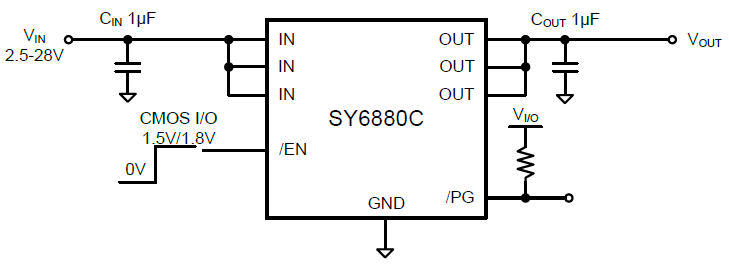

Typical Application

Description

The SY6880C is an over voltage protection switch with high current capability to prevent damage to the downstream system with low voltage rating. It achieves wide input voltage range from 2.5VDC to 28VDC. Metal option is available for two different default OVP thresholds. Integrated reverse blocking FET prevents the leakage current from the output side to the input side when the input power supply is removed, but without output discharging. Extremely low power path resistance RPWPT helps to reduce power loss during the normal operation. An open-drain indicator pin is opened to show the operation status of the device. It integrates the over-temperature protection shutdown and auto-recovery with hysteresis to protect against over current events. This IC along with small CSP (2.0mm×1.8mm) footprint provides the small PCB area application.

Applications

  • Smart Phone
  • Tablet PCs
  • Mobile Device
