SY6883ABC - Over Voltage Protection Switch

Features

  • Low RDS(ON) for the N-channel MOSFET Switch: 100 mΩ typical
  • 2.0A Maximum Continuous Current
  • Over-Voltage Protection up to 25V
  • External Programmable Over-Voltage Protection Threshold
  • Thermal Shutdown Protection& Auto Recovery
  • OVP and OTP Fault Flag
  • 300µA Maximum Quiescent Current
  • 20µA Maximum in shutdown Current
  • RoHS Compliant and Halogen Free
  • Compact Package: SOT23-6

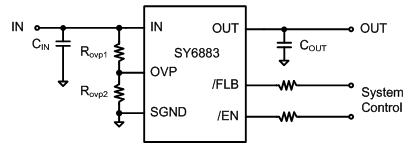

Typical Application

Description

SY6883 integrates an extremely low RDS(ON) N-channel MOSFET with precise over-voltage protection to against high-voltage faults up to 25V. Linear mode is active to maintain the output voltage at 5.5V with the input voltage up to the input over-voltage threshold. SY6883 has programmable over-voltage threshold using two external resistors. The internal NFET is turned off to disconnect input and output when VIN is higher than the over-voltage threshold. Low RDS(ON) of the integrated switch helps to reduce power loss during the normal operation.

Control the /EN pin to enable or disable the device and /FLB indicates OVP and OTP.

Applications

  • Cell Phones
  • Digital Still cameras
  • GPS
  • MP3 Players
  • Personal Data Assistants(PDAs)
  • USB Hot Swap/Live Insertion Device
