SY6885BQDC - 60V, 5A Full Protection Switch

Features

  • Wide Input Voltage Range from 4V to 48V With Surge up to 60V
  • Low Bias Current: 100µA Typical
  • Extremely Low RDS(ON) for the Integrated Protection Switch: 40mΩ
  • Programmable Soft-start
  • Programmable Current Limit
  • OCP/TSD/OVP Protection: Auto-recovery
  • Input Over Voltage Protection with Adjustable Threshold and Auto-recovery
  • Programmable Output Voltage Clamping
  • RoHS Compliant and Halogen Free
  • Compact Package: QFN3×3-16

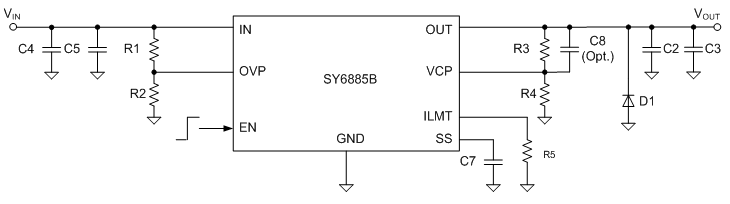

Typical Application

Description

SY6885B is a current limit switch with programmable input over voltage protection and output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel FET helps to reduce power loss during normal operation. Programmable soft-start time controls the slew rate of the output voltage during start-up. Independent enable control allows the complicated system sequencing control. The device also integrates thermal shutdown protection. This device along with small QFN3×3-16 footprint provides small PCB area application.

Applications

  • Notebook PC
  • Server
  • Service PC
