SYT01M12DXC - Low Capacitance TVS Protection


  • Transient protection for high-speed data lines

IEC 61000-4-2(ESD)   ±15kV (Air)

±8kV (Contact)

  • Package optimized for high-speed lines
  • Ultra-small package: DFN0.6*0.3-2L
  • Protects one data, control or power line
  • Low capacitance: 8pF (Typical)
  • Low leakage current: 0.01μA @ VRWM (Typical)
  • Low clamping voltage
  • Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge

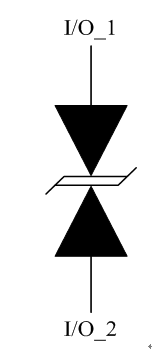

Typical Application


SYT01M12 is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 8pF only, SYT01M12 is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2(ESD), Level 4 (±15kV air, ±8kV contact discharge), etc.

SYT01M12 uses ultra-small DFN1.0*0.6-2L & DFN0.6*0.3-2L package. Each SYT01M12 device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.


  • Portable Electronics
  • Desktops, Servers and Notebooks
  • Cellular Phones
  • MP3 Ports
  • Digital Camera Ports
