SY7M007 - Isolated Dual ADC for Electricity Metering

Features

  • Capacitively coupled serial interface to a compati- ble Silergy metrology processor, e.g. SY7T625
  • Capable of ±0.1% Wh accuracy over 5,000:1 cur- rent range
  • Dual delta-sigma ADCs with pin selectable gains and up to 8kHz effective sample rate
  • On-chip digital temperature sensor
  • Built-in 5V-to-3V LDO
  • Compact 3x3mm 16-pin TQFN package

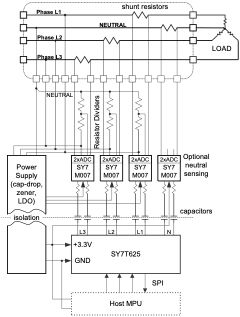

Typical Application

Description

The SY7M007 is the sensor side device of an isolated metering chipset for single-phase and poly-phase elec- tricity metering applications. It can be combined with a compatible Silergy host and other SY7M007 devices to form a fully isolated meter based on shunt sensors. The SY7M007 provides two analog inputs interfacing to voltage and current sensors. Scaled voltages from the sensors are digitized by the SY7M007 using high- resolution delta-sigma ADCs with pin-selectable gains. The device continuously sends trim data, silicon ver- sion, voltage/current measurement and device temperature measurement to a compatible Silergy host processor. Isolation of the SY7M007 from the rest of the chipset is accomplished using capacitive coupling and can be implemented with discrete components or

with PCB capacitors.

Applications

• Poly-phase smart meters

• Industrial meters
