高效率，快速响应，11A，28V 输入同步降压稳压器
技術文檔
| 標題 | 日期 |
|---|---|
| Automotive_Solutions_Q1_2026 | 2026-03-06 |
| Silergy_Catalog_Q1_2026 | 2026-02-09 |
| Part number | SY8370C1TMC |
|---|---|
| Channel(#) | 2 |
| Vin (min) (V) | 5.5 |
| Vin (max) (V) | 24 |
| Switching frequency (min)(kHz) | 600 |
| Switching frequency (max)(kHz) | 600 |
| Vout (min) (V) | 5.15 |
| Vout (max) (V) | 5.15 |
| Iout (max) (A) | 11 |
| Vout2 (min)(V) | 4.9 |
| Vout2 (max )(V) | 5.15 |
| Iout2 (max)(A) | 0.31 |
| Vref accuracy (±%) | |
| Vout accuracy(±%) | 1.5 |
| Control mode | COT+Ripple |
| Duty cycle (max)(%) | 98 |
| Operation mode | Auto PFM |
| Iq (typ) (uA) | 110 |
| Features | Power good,Output discharge,Latch-off SCP,LDO output |
| Package | QFN3×4-13 |
| Operating temperature range(°C) | -40 to 125 |
| Functional safety category |

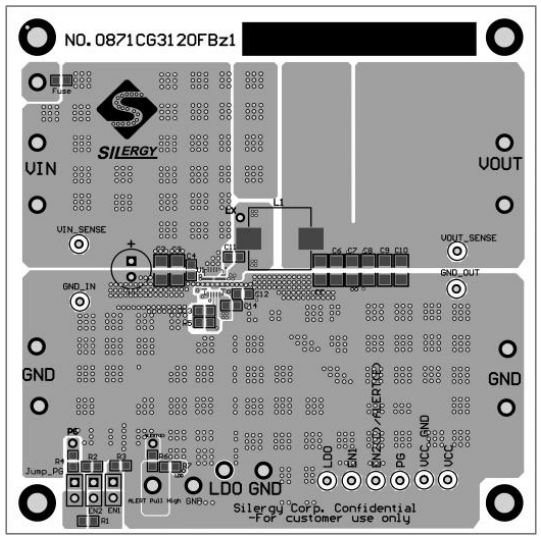

評估板照片
評估板照片
評估板照片
評估板照片
評估板照片
EVB_SY8370C1TMC评估板用于评估11A， 24V输入同步降压稳压器SY8370C1TMC。
