SA24401FCA

5μA静态电流，0.6A输出电压，40V输入电压同步降压稳压器

Part number	SA24401FCA
Channel(#)	1
Vin (min) (V)	4.25
Vin (max) (V)	40
Switching frequency (min)(kHz)	500
Switching frequency (max)(kHz)	500
Vout (min) (V)	1
Vout (max) (V)	37.6
Iout (max) (A)	0.6
Vout2 (min)(V)
Vout2 (max )(V)
Iout2 (max)(A)
Vref accuracy (±%)	3
Vout accuracy(±%)
Control mode	Peak current control
Duty cycle (max)(%)	94
Operation mode	PFM
Iq (typ) (uA)	5
Features	Power Good Indicator, Auto-Discharge
Package	SO8E
Operating temperature range(°C)	-40 to 125
Functional safety category

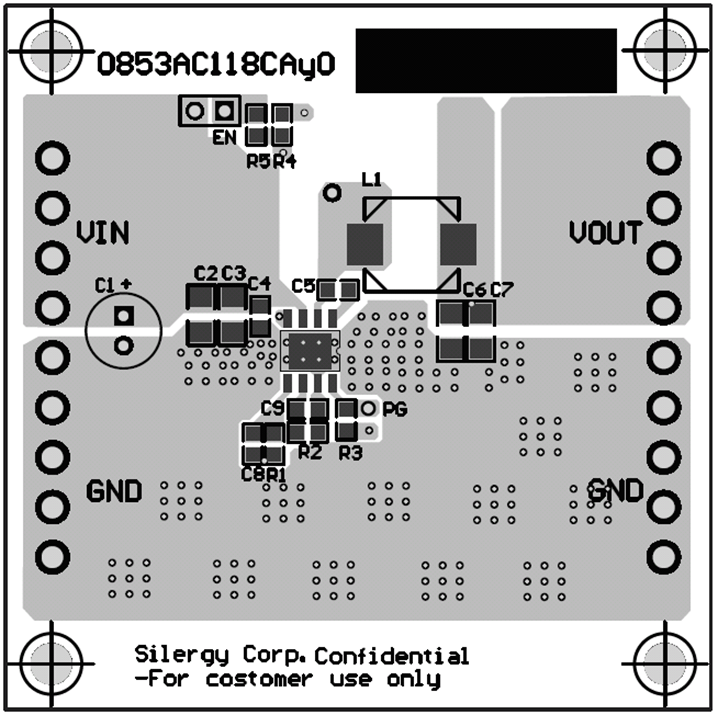

EVB_SA24401FCA

EVB_SA24401FCA_1用于评估0.6A、40V快速响应同步降压稳压器。它具有逐周期峰值电流限制、可调输出电压、500kHz固定开关频率。
