36V输入,150mA 低压差线性稳压器
| Part number | SA21345NFCP |
|---|
| Vin (max) (V) | 36 |
|---|
| Vin (min) (V) | 4 |
|---|
| Iout (max) (A) | 0.15 |
|---|
| Output type | Fixed |
|---|
| Vout (max) (V) | 5 |
|---|
| Vout (min) (V) | 5 |
|---|
| Iq (typ) (uA) | 15 |
|---|
| PSRR at 100kHz (dB) | 35 |
|---|
| Accuracy (±%) | 2 |
|---|
| Features | Enable,Fixed soft-start,Auto-discharge,Low Iq,Over current protection,Output short to ground protection (hiccup mode),Thermal shutdown |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Package | SO8E |
|---|
| Functional safety category | Functional safety capable |
|---|
- 宽输入电压范围: 4V to 36V
- 固定5V 输出
- 可调输出FB电压精度: 2%
- 低压差: 150mA输出时,压差为150mV
- 极低静态电流
- 极低关断电流
- 出色的负载和线性调整率
- 150mA最大负载电流
- 使能控制输入
- 过流保护
- 热关断保护
- 紧凑型封装: SO8E
- 符合RoHS标准且无卤素
- 获得汽车AEC- Q100 Grade 1 认证

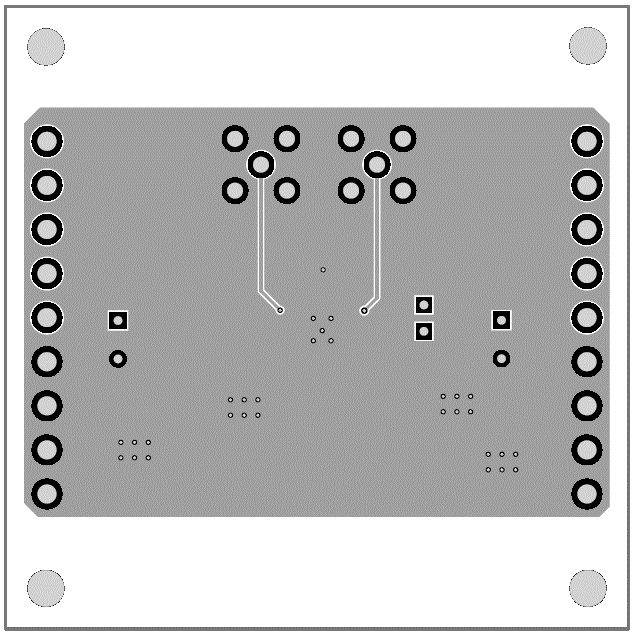

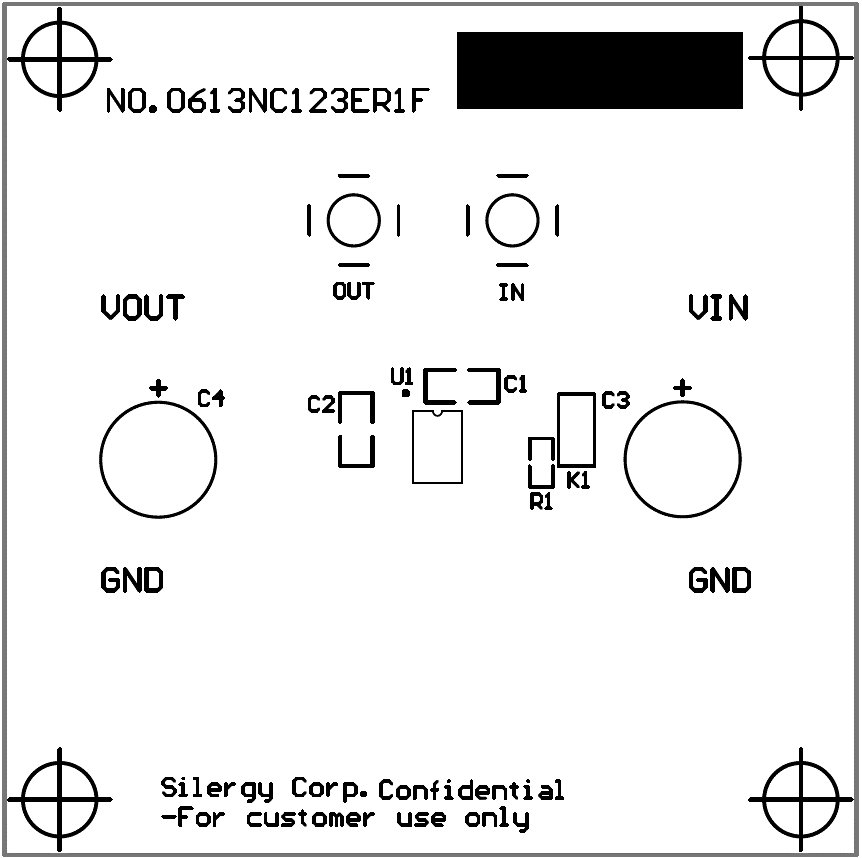

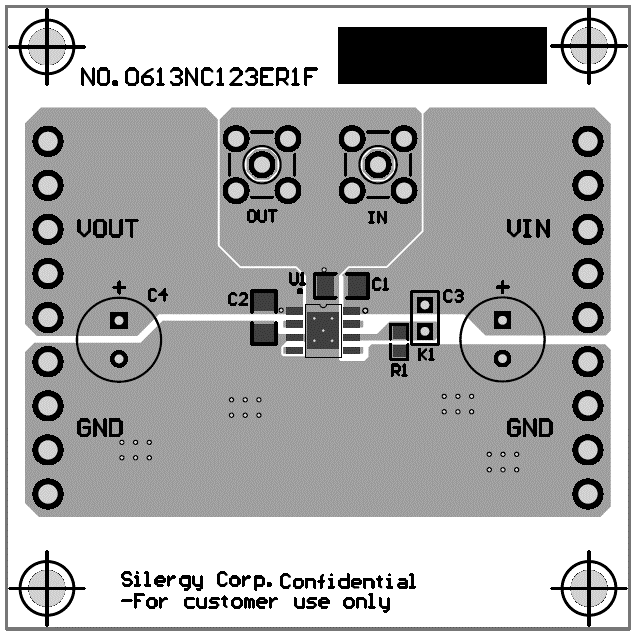

評估板
EVB__SA21345NFCP 评估板适用于评估36V输入, 150mA 低压差线性稳压器SA21345NFCP。
