2.8V-5.5V 输入电压, 6A 单同步降压转换器
| Part number | SA23006XHQ |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 2.8 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Switching frequency (min)(kHz) | 1800 |
|---|
| Switching frequency (max)(kHz) | 3000 |
|---|
| Vout (min) (V) | 0.6 |
|---|
| Vout (max) (V) | 5.5 |
|---|
| Iout (max) (A) | 6 |
|---|
| Vout2 (min)(V) | |
|---|
| Vout2 (max )(V) | |
|---|
| Iout2 (max)(A) | |
|---|
| Vref accuracy (±%) | 1.2 |
|---|
| Vout accuracy(±%) | |
|---|
| Control mode | Peak current control |
|---|
| Duty cycle (max)(%) | 100 |
|---|
| Operation mode | PFM/FCCM |
|---|
| Iq (typ) (uA) | 38 |
|---|
| Features | Enable,Power good,Auto-Discharge,Adjustable soft-start,Low Iq,Wettable flanks package,UVP with hiccup,100% duty cycle,Low ISD,Adjustable switching frequency,Spread spectrum,Cycle by cycle overcurrent protection,Forced PWM,Frequency synchronization,Pre-Bia |
|---|
| Package | QFN2×3-9 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | Capable |
|---|
- 输入电压范围：2.8~5.5V
- 最大输出电流：6A
- 反馈基准电压精度：±1.2%
- 1μA典型关断电流
- 可调开关频率范围： 1.8MHz~3MHz
- 可选PWM或PFM轻载运行模式
- 外部可编软启动时间
- 支持100%占空比工作
- 带改善EMI的抖频功能
- 逐周期限流保护
- 打嗝模式短路保护
- 电源正常指示
- 过热保护
- 封装: QFN2×3-9
- 获得AEC-Q100 Grade 1认证
評估板

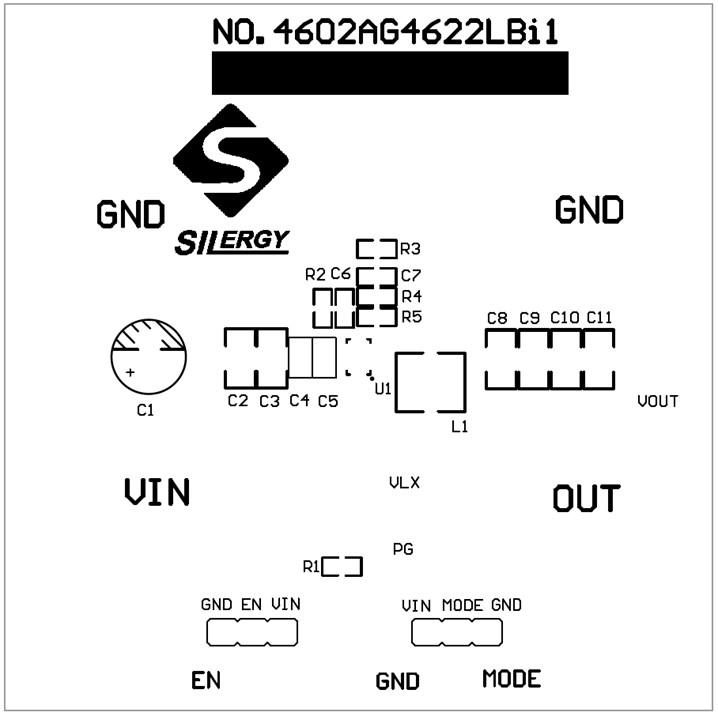

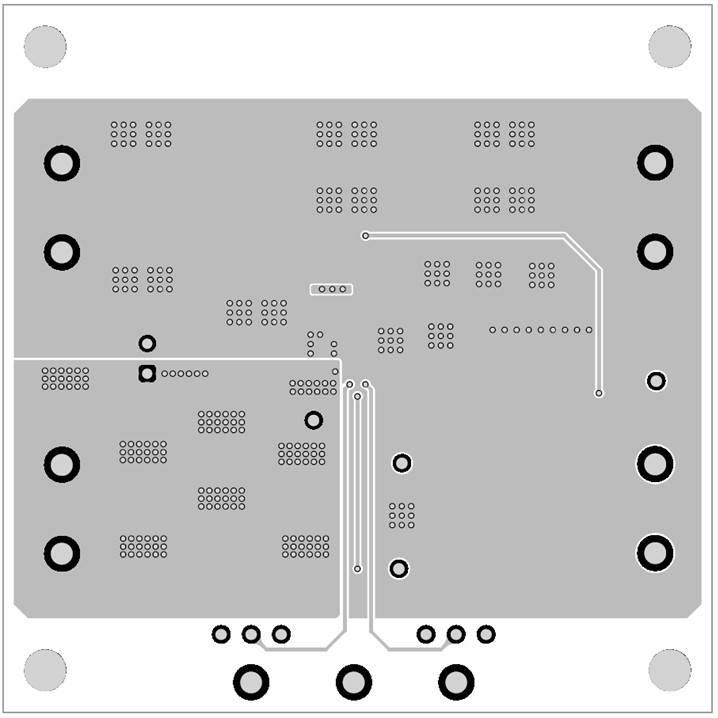

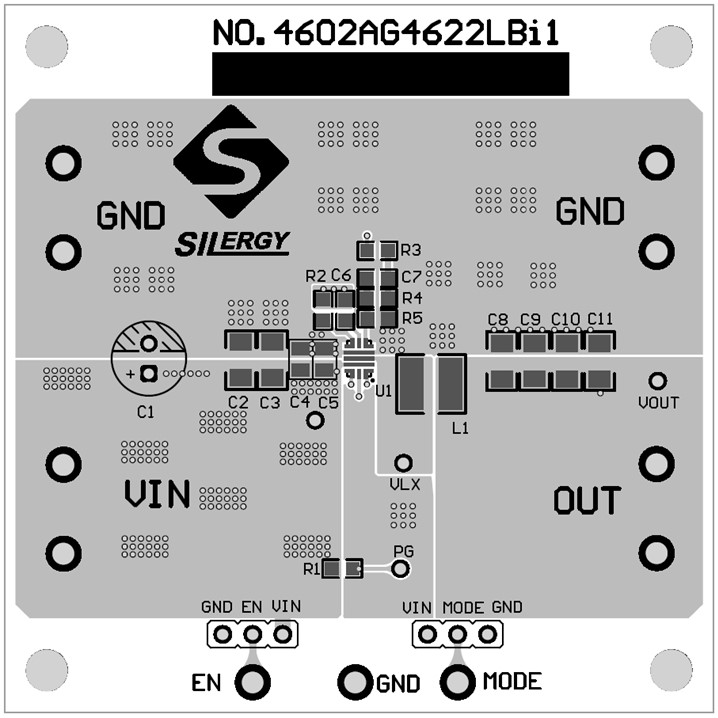

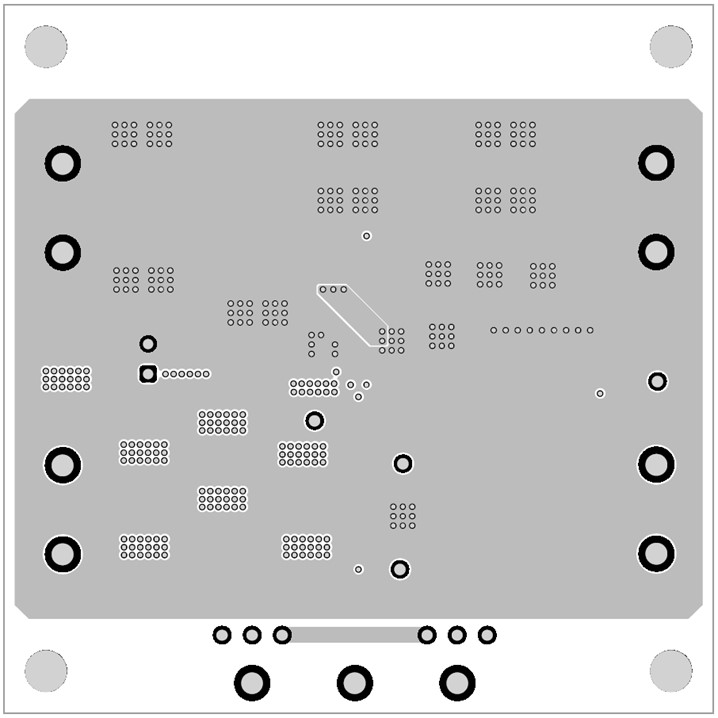

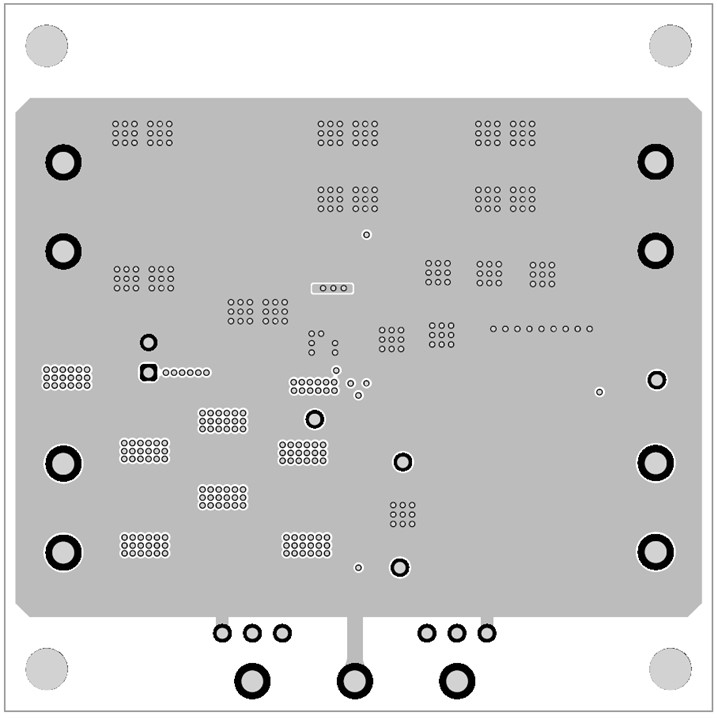

EVB_SA23006XHQ评估板适用于评估2.8V-5.5V 输入电压, 6A 单同步降压转换器。
