SQ24302FCC

低输入，2A低压差线性稳压器

Part number	SQ24302FCC
Vin (max) (V)	6
Vin (min) (V)	1.5
Iout (max) (A)	2
Output type	Adjustable
Vout (max) (V)	5.2
Vout (min) (V)	0.5
Iq (typ) (uA)	800
PSRR at 100kHz (dB)	30
Accuracy (±%)	2
Features	Enable,Fixed soft-start,Auto-discharge,Over current protection,Thermal shutdown,Reverse current blocking
Operating temperature range(°C)	-40 to 125
Package	SO8E
Functional safety category

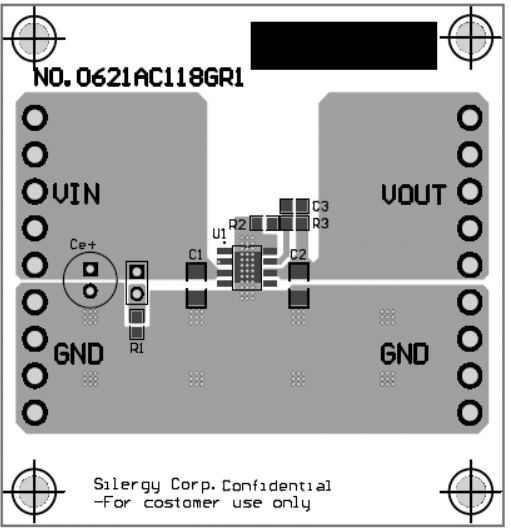

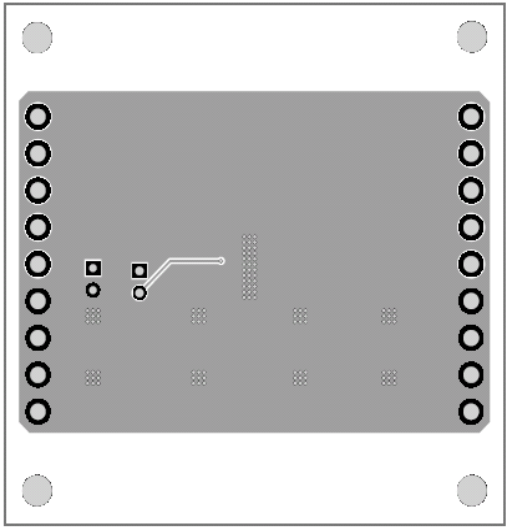

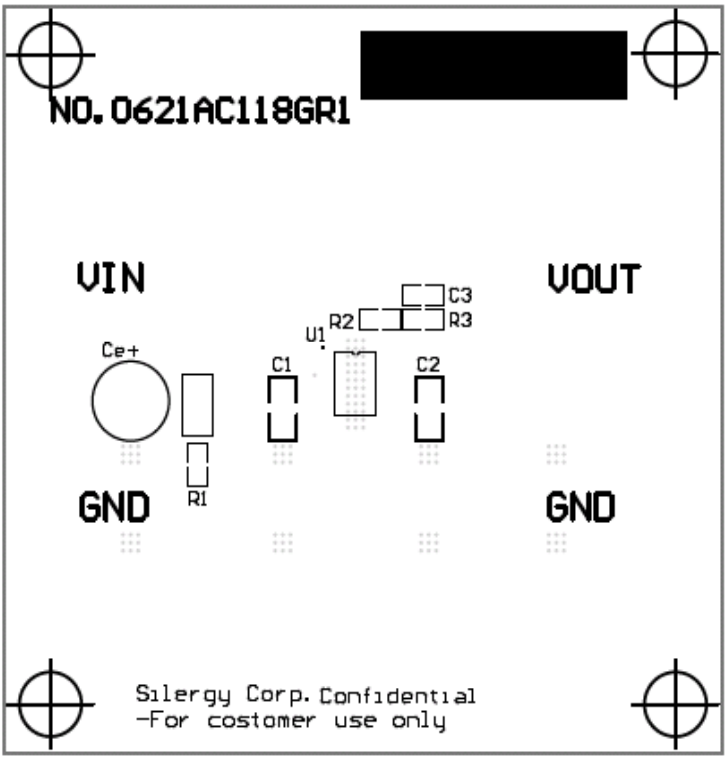

EVB_SQ24302FCC

EVB_SQ24302FCC评估板适用于评估1.5~6V输入，0.5~5.2V输出，2A低压差线性稳压器SQ24302FCC。
