Twelve Half-Bridge Driver with SPI Control
![]()
- Parameters
- Features
- Description
Part Number | SA52122HHP |
---|
Vin_min (V) | 4.5 |
---|
Vin_max (V) | 32 |
---|
Idrive_max (A) | 1A for Each Output |
---|
MOSFET RON HS + LS(mΩ) typ. | 0.75 |
---|
Features / Special Function | |
---|
Application | Automotive/HVAC/DC Brushed Motor Drivers/LEDs |
---|
Package | TSSOP24E |
---|
- 12 Half-Bridge Outputs
- Operating Voltage: 4.5V to 32V
- Compatible with a 5V/3.3V System
- Up to 1A Output Current for Each Output
- Low-Power Sleep Mode
- SPI Up to 5MHz
- Daisy Chain Functionality
- PWM Capable Output for Frequencies of 80Hz, 100Hz, 200Hz, 400Hz, 600Hz, 800Hz, 1kHz and 2kHz with an 8-Bit Duty Cycle Resolution
- Integrated Protection Features:
- -- Overcurrent Protection
- -- Short-Circuit Protection
- -- Open Load Detection
- -- Undervoltage Lockout
- -- Overvoltage Protection
- -- Thermal Shutdown
- nFAULT Pin Output
- TSSOP24E Package
- AEC-Q100 Qualified
- MSL Rating: MSL3
The SA52122 is a twelve half-bridge motor driver solution designed for automotive, industrial, and mechatronic applications. The half-bridges are fully controllable, facilitating forward, reverse, coasting, and braking motor operations. All the functions can be programmed through a serial peripheral interface (SPI).
The device includes protection features such as overcurrent protection, open load detection, undervoltage lockout, overvoltage lockout, and thermal shutdown for reliable operation.
The open-drain nFAULT output can be configured to signal fault conditions to the host.
The device is available in a TSSOP24E package with an exposed pad for improved thermal dissipation.
Evaluation Board

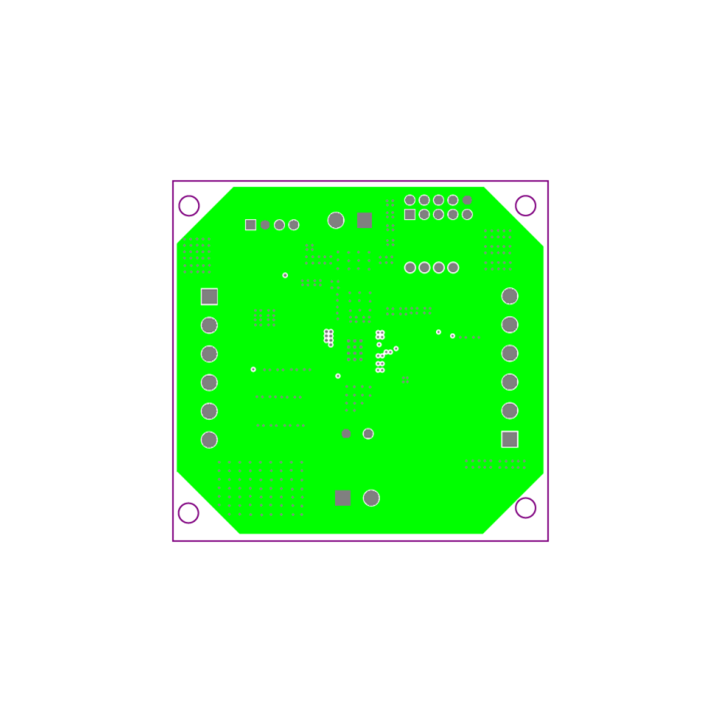

Photo of evaluation board

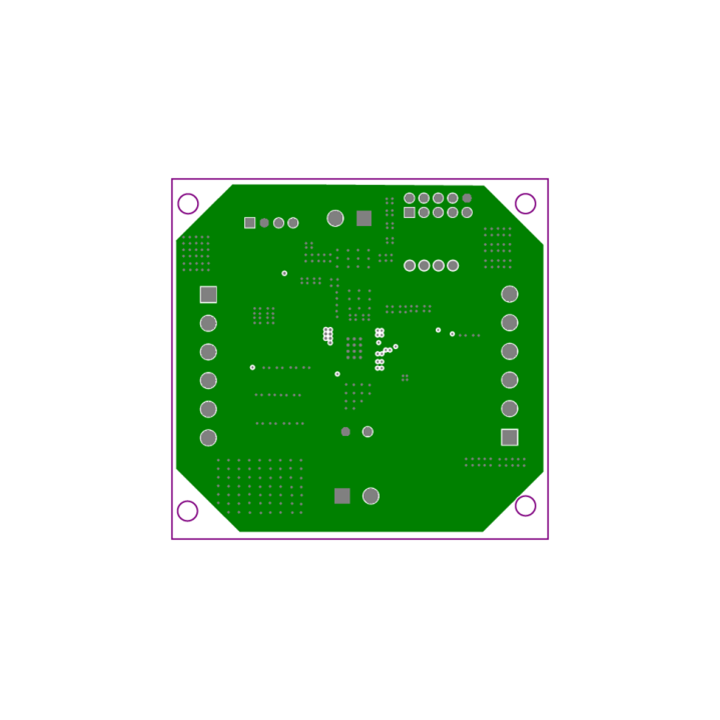

Photo of evaluation board

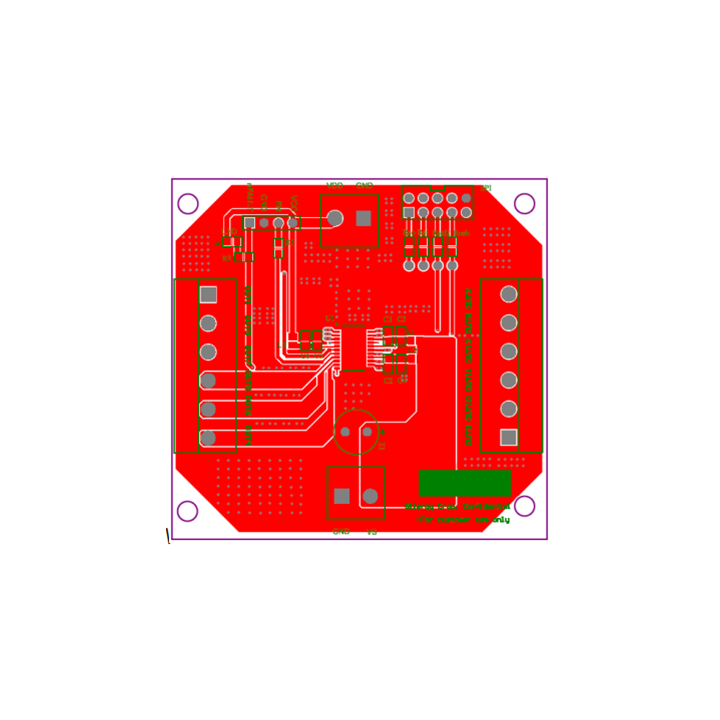

Photo of evaluation board

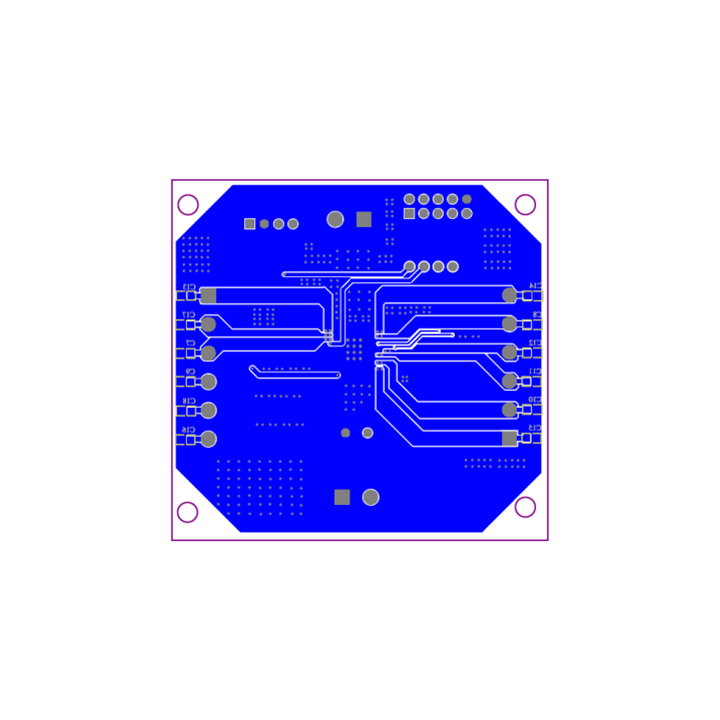

Photo of evaluation board
Photo of evaluation board
The EVB_SA52122HHP is intended for evaluating Twelve Half-Bridge Driver with SPI Control SA52122HHP.
