SY20631QNC

Production
Datasheet
High Efficiency, Built-in Inductor, 2.0MHz, 1A, 0.85V-5.5V Input Synchronous Step Up Regulator
    Part NumberSY20631QNC
    Vin_min (V)0.85
    Vin_max (V)5.5
    Io_max (A)1
    Vref Accuracy±1.5%
    Efficiency up to90% @ 3.3VIN, 5VOUT
    Fsw (MHz)2
    Iq (uA)
    Rdson1
    Rdson2
    Interface
    PackageQFN3×3-10
    • 0.85V Minimum Input Voltage
    • Adjustable Output Voltage From 1.8V to 5.5V
    • 1A Load Current Capability
    • 5.5µA Typical Quiescent Current
    • Load Disconnect During Shutdown
    • Low RDS(ON) (Main Switch/Synchronous Switch) at 3.3V Output: 65/120mΩ
    • Pseudo-constant Frequency:2.0MHz
    • Output OVP
    • Auto Bypass Mode When VIN ≥VOUT
    • RoHS Compliant and Halogen Free
    • Compact Package QFN3×3-10

    Evaluation Board

    • SY20631QNC-a

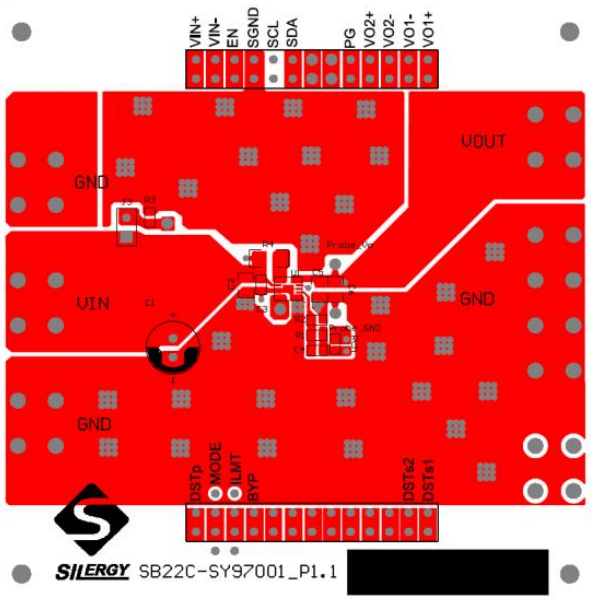

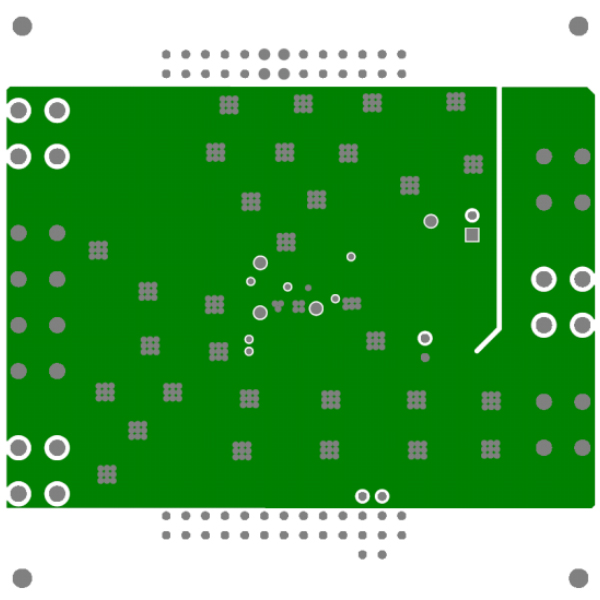

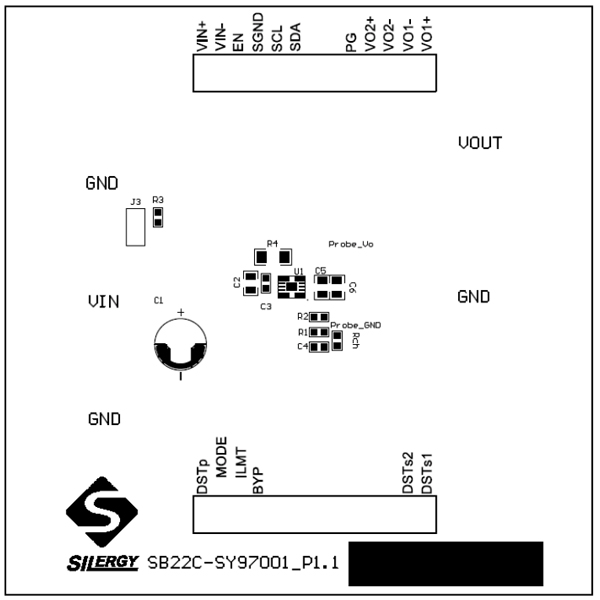

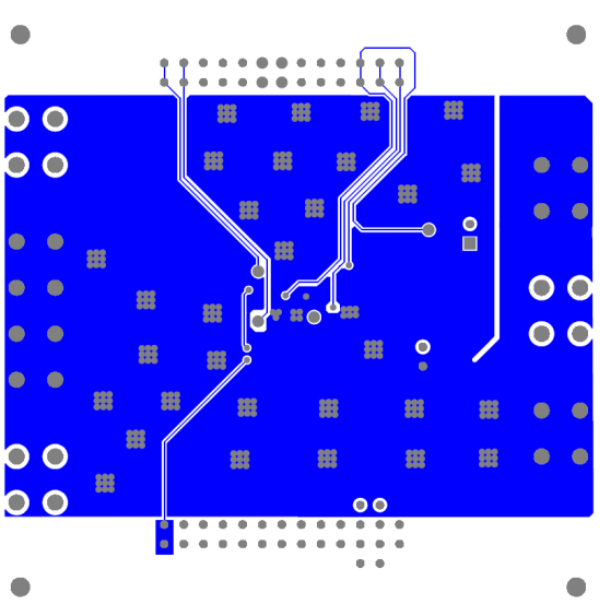

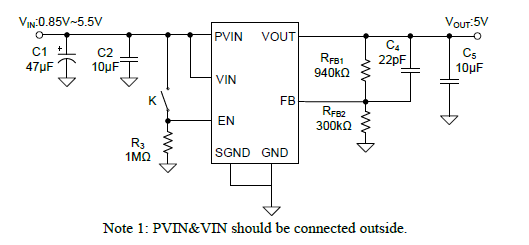

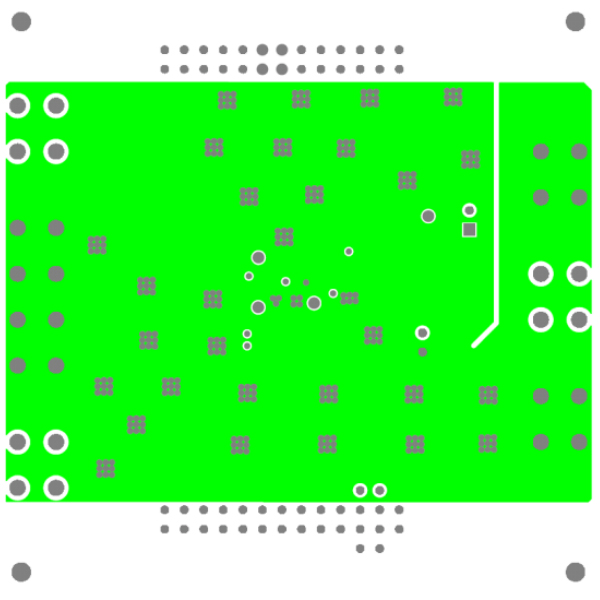

      Photo of evaluation board

    • SY20631QNC-b

      Photo of evaluation board

    • SY20631QNC-d

      Photo of evaluation board

    • SY20631QNC-e

      Photo of evaluation board

    • SY20631QNC-c

      Photo of evaluation board

    EVB_SY20631QNC

    The EVB_SY20631QNC is intended for evaluating a high efficiency, synchronous, step-up Boost converter SY20631. It can disconnect the output fromthe input during the shutdown mode. When input voltage exceeds the regulated output voltage, SY20631 enters bypass mode automatically.
