SY20041BDEC -


·       Low RDS(ON) for Internal Switches (Top/Bottom):

o SY20041B:200mΩ/150 mΩ,1A

·       2.5-5.5V Input Voltage Range

·       1.5MHz Switching Frequency

·       100uA Quiescent Current

·       Internal Softstart Limits the Inrush Current

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

· Compact Package: DFN2x2-6

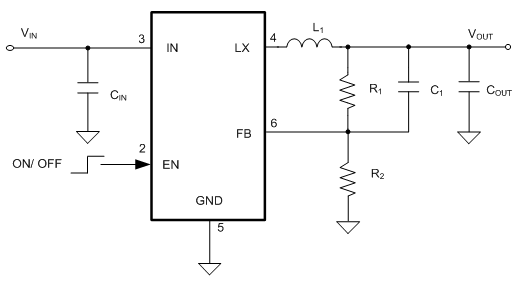

Typical Application


The SY20041B is a high-efficiency 1.5MHz synchronous step-down DC-DC converters capable of delivering up to1.5Aoutput current. It operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


·       Wireless LAN Card

·       DVD Blu-ray Drive

·       USB Datacard
