SY20041VQDC -


·       Low RDS(ON) for Internal Switches (Top/Bottom):

o SY20041V:  180mΩ/120 mΩ1.5A

·       2.5-5.5V Input Voltage Range

·       1.5MHz Switching Frequency

·       100uA Quiescent Current

·       Internal Softstart Limits the Inrush Current

·       1.5% 0.6V Reference

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

·       Compact Package: QFN3x3-16

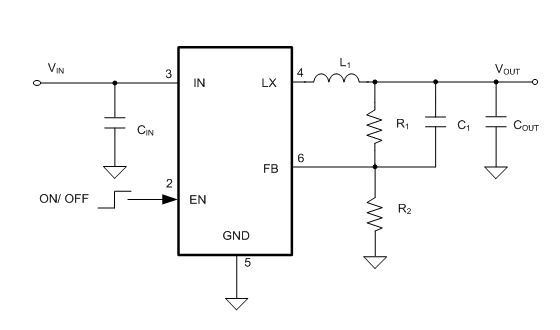

Typical Application


The SY20041V is a high-efficiency 1.5MHz synchronous step-down DC-DC converter capable of delivering up to1.5Aoutput current. It operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


·       Wireless LAN Card

·       DVD Blu-ray Drive

· USB Datacard
