40V, 300mA LDO Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY20725AAC |
| Vin (max) (V) |
40 |
| Vin (min) (V) |
4 |
| Iout (max) (A) |
0.3 |
| Output type |
Adjustable |
| Vout (max) (V) |
40 |
| Vout (min) (V) |
0.6 |
| Iq (typ) (uA) |
7 |
| PSRR at 100kHz (dB) |
30 |
| Accuracy (±%) |
2 |
| Features |
Enable,Fixed soft-start,Auto-discharge,Low Iq,Over current protection,Thermal shutdown |
| Operating temperature range(°C) |
-40 to 125 |
| Package |
SOT23-5 |
| Functional safety category |
|
- Wide Input Voltage Range: 4V to 40V
- Low Dropout Voltage (300mV @ 300mA)
- Ultra-low Quiescent Current
- Extremely Low Shutdown Current
- Stability with Tantalum or Ceramic Capacitors
- Excellent Load and Line Regulation
- ±2% 0.6V Reference Accuracy
- 300mA Maximum Load Current
- Enable Control Input
- Over Current Protection
- Thermal Shutdown
- Compact SOT23-5 Package
The SY20725 is an efficient, precise low-dropout (LDO) regulator designed for high input voltage and ultra-low quiescent current applications.
The SY20725 provides adjustable output voltage with ±2% accuracy and very low dropout (300mV at 300mA). It also features optimized internal compensation, overcurrent protection, and thermal shutdown for stable operation when using low-ESR ceramic or tantalum capacitors.
The device can be enabled by driving the EN pin above the VEN_H threshold (1.5V) and disabled by driving EN below VEN_L (0.4V).

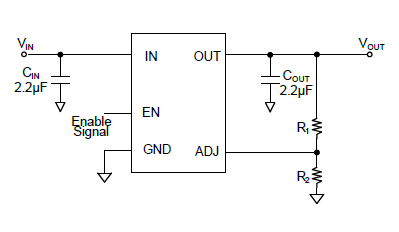

Only the divider resistors, input capacitor, and output capacitor need to be selected for the targeted application.
SY20725 is available in a compact SOT23-5 package.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
The EVB_SY20725AAC is intended for evaluating 40V, 300mA LDO Regulator.
