SY22676FAC - Buck Regulator For LED Lighting

Features


  • Integrated 600V MOSFET
  • Quasi-Resonant (QR) Mode to Achieve Low Switching Losses
  • No Opto-coupler or Auxiliary Winding for Feedback in the Proprietary Floating Switch Configuration.
  • Reliable Short LED and Open LED Protection
  • Thermal Foldback Function
  • Power Factor>0.9 with Internal Loop Compensation
  • Maximum Output Power : 20W
  • RoHS Compliant and Halogen Free
  • Compact Package: SO8

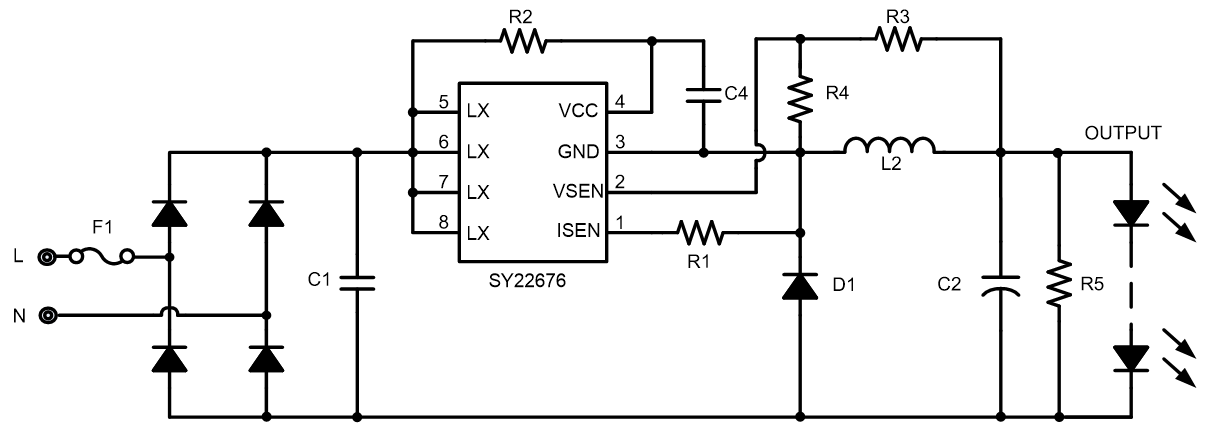

Typical Application

Description

SY22676 is a single stage Buck PFC regulator targeting at LED lighting applications.

SY22676 integrates a 600V MOSFET to decrease physical volume. It adopts the proprietary control architecture to achieve an accurate regulation of LED current, unity power factor.Quasi-Resonant valley turn-on for high efficiency operation. Proprietary self-bias technique saves the bias supply and reduces the start up time.

SY22676 integrates open/short LED protection and eliminates the need for opto-coupler or auxiliary winding (in floating switch application), thus minimizing the component count and board size.

Applications

  • LED Lighting
