SY6829APRC - Low On-resistance Load Switch


  • Low RDS(ON): 80mΩ
  • 1.5A Continuous Load Current Capability
  • 300nA Quiescent Current
  • 100nA Shutdown Current
  • Independent ON/OFF control input
  • Ultra Compact CSP0.79×0.79-4 0.3mm Thick Package
  • RoHS Compliant and Halogen Free

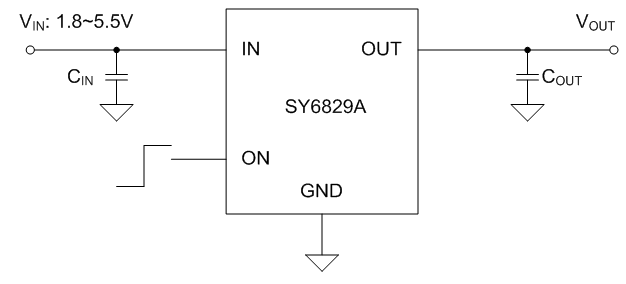

Typical Application


SY6829A integrates an ultra-low RDS (ON) switch with a dedicated ON pin. It makes SY6829A supporting independent ON/OFF control.
SY6829A features low to 300nA quiescent current at ON state and low to 100nA at shutdown mode. The ultra low current consumption significantly extends battery life time. It makes SY6829A the best selection for IoT application.


Smart Phone, Tablet PCs
MID, E-Book
Storage, DSLR, and Portable Devices
