SY6896RYC - Programmable High Current Protection Switch With Integrated Reverse Blocking FET

Features

  • Wide Input Voltage Range from 2.7V to 5.5V with Surge up to 15V
  • Extremely Low Power Path Resistance RPWPT=30mΩ(typ) at 3V Vin Condition
  • Reverse Blocking Function
  • 5A Output Current Capability
  • Programmable Current Limit
  • Programmable Soft-start Time
  • Selectable Clamping Output Voltage Threshold
  • Power Good Indicator Pin for Operation Status
  • FLG Indicator Pin for Input Voltage Status
  • RoHS Compliant and Halogen Free
  • Compact package: QFN2×2-9

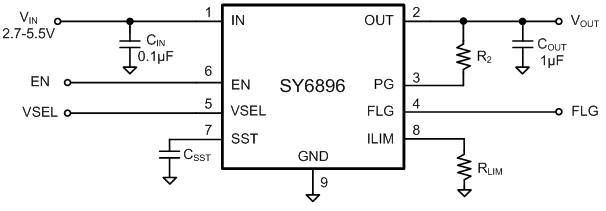

Typical Application

Description

SY6896 is a programmable current limit switch with output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel FET helps to reduce power loss during the normal operation. Programmable soft-start time controls the slew rate of the output voltage during the start-up time. This IC along with small QFN2×2-9 footprint provides small PCB area application.

Applications

  • SSD M.2 From Factor
  • SSD Dual Input Power Application
  • SSD Load Switch
