SY20268QMC (SY8868QMC)

Production
High Efficiency 1MHz, 6A Synchronous Step Down Regulator
Datasheet
SY20268QMC High Efficiency 1MHz, 6A Synchronous Step Down Regulator Datasheet
    Part numberSY20268QMC
    Channel(#)1
    Vin (min) (V)2.7
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)1000
    Switching frequency (max)(kHz)1000
    Vout (min) (V)0.6
    Vout (max) (V)4.4
    Iout (max) (A)6
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)1
    Vout accuracy(±%)
    Control modeCOT+Ivalley
    Duty cycle (max)(%)80
    Operation modeAuto PFM
    Iq (typ) (uA)50
    FeaturesPower good, Output discharge
    PackageQFN2×2-10
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Low RDS(ON) for Internal Switches (Top/Bottom): 35/15mΩ
    • 2.7-5.5V Input Voltage Range
    • Pseudo-constant Frequency: 1MHz
    • External Adjustable Soft-start Limits the Inrush Current
    • Power Good Indicator
    • Output Auto Discharge at Shutdown
    • Latch off Protection under Short Circuit and OVP Conditions
    • RoHS Compliant and Halogen Free
    • Compact Package: QFN2x2-10
    • Built-in Over-temperature Protection

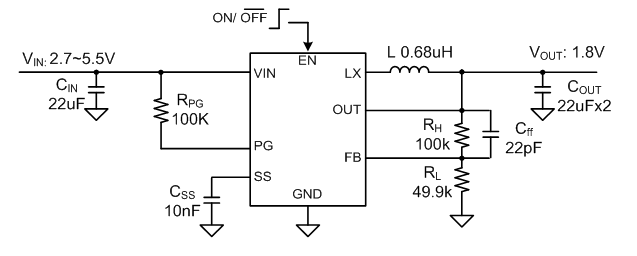

     The SY20268 is a high efficiency 1MHz synchronous step-down DC/DC regulator capable of delivering up to 6A output current.

    The SY20268 operates over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Evaluation Board

    • 20268-1

      Photo of evaluation board

    • 20268-2

      Photo of evaluation board

    • 20268-3

      Photo of evaluation board

    • 20268-4

      Photo of evaluation board

    • 20268-5

      Photo of evaluation board

    EVB_SY20268QMC

    The EVB_SY20268QMC is intended for evaluating 5.5V input, 6A, 1 MHz synchronous step-down DC/DC regulator.
