SY20334DCC (SY8024DCC)

Production
High Efficiency 1.5MHz, Dual 3A Synchronous Step Down Regulator
Datasheet
SY20334DCC High Efficiency 1.5MHz, Dual 3A Synchronous Step Down Regulator Datasheet
    Part numberSY20334DCC
    Channel(#)2
    Vin (min) (V)2.7
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)1000
    Switching frequency (max)(kHz)1000
    Vout (min) (V)0.6
    Vout (max) (V)5
    Iout (max) (A)3
    Vout2 (min)(V)0.6
    Vout2 (max )(V)5
    Iout2 (max)(A)3
    Vref accuracy (±%)2
    Vout accuracy(±%)
    Control modeClock+Ipeak
    Duty cycle (max)(%)100
    Operation modeAuto PFM
    Iq (typ) (uA)110
    FeaturesOutput discharge
    PackageDFN3×3-12
    Operating temperature range(°C)-40 to 125
    Functional safety category



    • Low RDS(ON) for internal switches (top/bottom):  105/85mΩ
    • 2.7-5.5V input voltage range
    • 1.5MHz switching frequency minimizes the external components
    • Internal soft-start limits the inrush current
    • 100% dropout operation
    • RoHS Compliant and Halogen Free
    • Compact and thermally enhanced package: DFN3x3-12

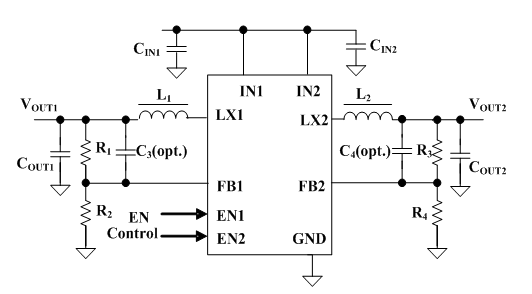

    The SY20334 is a dual-output, high-efficiency 1.5MHz synchronous step-down DC-DC IC capable of delivering up to 3A output current per output respectively.  The SY20334 operates over a wide input voltage range from 2.7V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1.5MHz switching frequency.

    Evaluation Board

    • 20334-1

      Photo of evaluation board

    • 20334-2

      Photo of evaluation board

    • 20334-3

      Photo of evaluation board

    EVB_SY20334DCC

    The EVB_SY20334DCC is intended for evaluating 1.5MHz, Dual 3A synchronous Buck regulator. It features Enable controls.
