SY21041ABC (SY8201ABC)

Production
High Efficiency Fast Response, 1A, 27V Input Synchronous Step Down Regulator
Datasheet
SY21041ABC High Efficiency Fast Response, 1A, 27V Input Synchronous Step Down Regulator Datasheet
    Part numberSY21041ABC
    Channel(#)
    Vin (min) (V)4.5
    Vin (max) (V)27
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)
    Vout (min) (V)0.6
    Vout (max) (V)
    Iout (max) (A)1
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)±2%
    Vout accuracy(±%)
    Control mode
    Duty cycle (max)(%)
    Operation mode
    Iq (typ) (uA)
    Features
    PackageSOT23-6
    Operating temperature range(°C)
    Functional safety category
    •      Low RDS(ON) for Internal Switches (Top/Bottom): 350/150 mΩ
    •      4.5-27V Input Voltage Range
    •      Instant PWM Architecture to Achieve Fast Transient Responses
    •      Internal Soft-start Limits the Inrush Current
    •      2% 0.6V Reference
    •      RoHS Compliant and Halogen Free
    •      Compact Package: SOT23-6

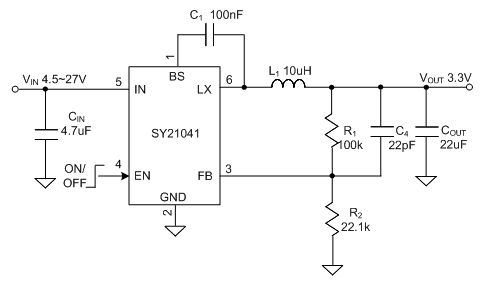

    SY21041 develops high efficiency synchronous step-down DC/DC converter capable of delivering 1A . SY21041 operates over a wide input voltage range from 4.5V to 27V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.



    SY21041 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 500 kHz under heavy load conditions to minimize the size of inductor and capacitor.

    Evaluation Board

    • 21041-1

      Photo of evaluation board

    • 21041-2

      Photo of evaluation board

    • 21041-3

      Photo of evaluation board

    EVB_SY21041ABC

    The EVB_SY21041ABC is intended for evaluating fast response, 1A, 27V synchronous Buck regulator. It features Enable control, output voltage selection inputs.
