High Efficiency, 800kHz, 40V Input, 2A Asynchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY21102ABC |
|---|
| Channel!(#) | 1 |
|---|
| Vin (min) !(V) | 5 |
|---|
| Vin (max) !(V) | 40 |
|---|
| Switching frequency (min)!(kHz) | 800 |
|---|
| Switching frequency (max)!(kHz) | 800 |
|---|
| Vout (min) !(V) | 0.6 |
|---|
| Vout (max) !(V) | 12 |
|---|
| Iout (max) !(A) | 2 |
|---|
| Vout2 (min)!(V) | |
|---|
| Vout2 (max )!(V) | |
|---|
| Iout2 (max)!(A) | |
|---|
| Vref accuracy! (±%) | 2 |
|---|
| Vout accuracy!(±%) | |
|---|
| Control mode | COT OFF+Ipeak |
|---|
| Duty cycle (max)!(%) | 80 |
|---|
| Operation mode | Auto PFM |
|---|
| Iq (typ) !(uA) | 160 |
|---|
| Features | Asynchronous |
|---|
| Package | SOT23-6 |
|---|
| Operating temperature range!(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- 5-40V Input Voltage Range
- Low RDS(ON) for Internal N-Channel Power FET:180 mΩ
- 800kHz Switching Frequency
- Adaptive Constant Off Time Control
- Internal Softstart Limits the Inrush Current
- 2% 0.6v Reference
- Hic-cup Mode Short Circuit Protection
- Cycle by Cycle Peak Current Limit
- Thermal Shutdown Protection
- RoHS Compliant and Halogen Free
- Compact Package: SOT23-6

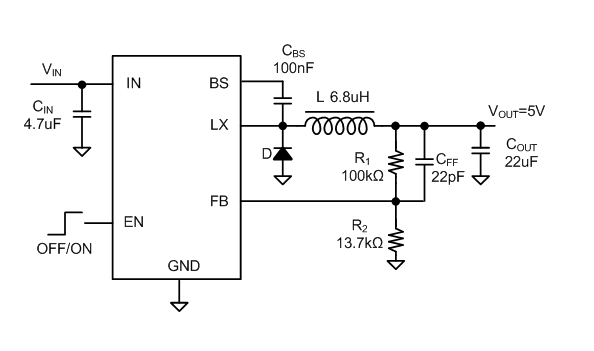

The SY21102 high efficiency asynchronous Buck converter can deliver 2A output current over a wide input voltage range from 5V to 40V. The SY21102 employs a constant off-time and peak current mode control strategy to achieve fast transient responses. It integrates a power MOSFET with low RDS(ON) to minimize conduction loss.
The 800kHz switching frequency permits low output voltage ripple and reduces external inductor and capacitor sizes. The SY21102 also provides cycle-by-cycle current limit protection, over temperature protection, and output short circuit protection.
The SY21102 is available in a compact SOT23-6 package.
Evaluation Board

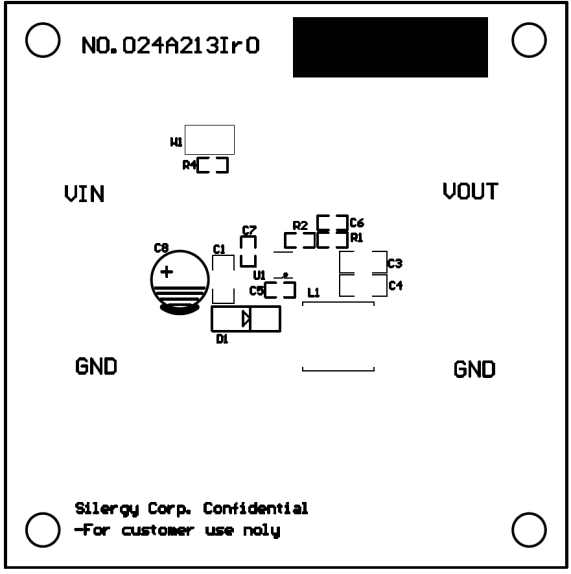

Photo of evaluation board

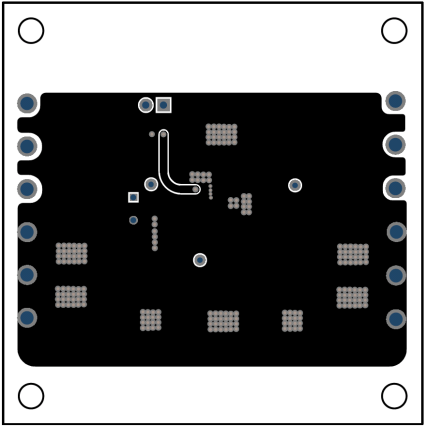

Photo of evaluation board

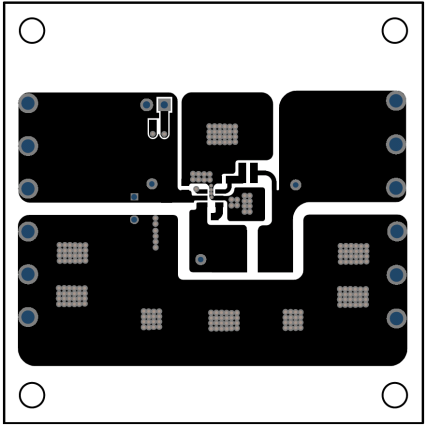

Photo of evaluation board
The EVB_SY21102ABC is intended for evaluating 2A output current, 40V Input, non-synchronous step down DC/DC regulator.
