SY22665AAC (SY58561AAC)

Production

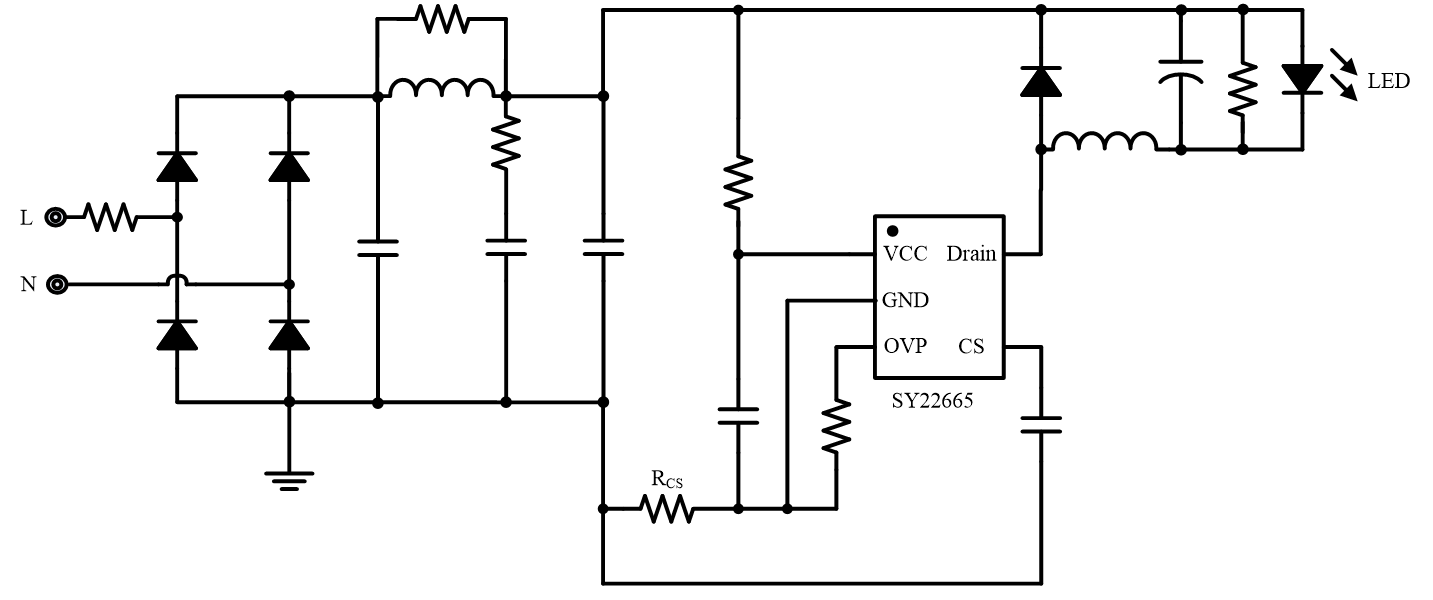

Single Stage Buck PFC LED Driver Dimmable, High PF and Low BOM Cost
Datasheet
SY22665AAC Single Stage Buck PFC LED Driver Dimmable, High PF and Low BOM Cost Datasheet
    Part numberSY22665AAC
    DescriptionSingle stage buck PFC LED driver with 350V/4.5Ω MOS, QR, and triac dimming
    TopologyBuck
    Dimming modeTriac dimming
    PF (>)0.9
    Input type120VAC
    Iout (max) (A)0.32
    Pout (max) (W)10
    PackageSOT23-5
    ApplicationBuck, phase-cut dimming
    • Compatible with Leading Edge/Trailing Edge Dimmer
    • High PF without any Dimmer
    • 350V MOSFET Integrated
    • Quasi-Resonant Operation
    • Reliable Open/Short LED Protection
    • Thermal Fold Back
    • Low BOM Cost
    • Maximum Output Power:10W
    • RoHS Compliant and Halogen Free
    • Compact Package: SOT23-5



    Evaluation Board

    • 2022-02-21_161924

      Photo of evaluation board

    • 2022-02-21_161947

      Photo of evaluation board

    EVB_SY22665AAC

    The EVB_SY22665AAC is intended for evaluating  AC 90~264V input, 42V/200mA output Buck Regulator For LED Lighting
