SY22795FAC (SY59011FAC)

Production
Linear AC/DC Constant Current Driver With Integrated 500V MOSFET
Datasheet
SY22795FAC Linear AC/DC Constant Current Driver With Integrated 500V MOSFET Datasheet
    Part NumberSY22795FAC
    DescriptionLinear, Int. MOS 500V/20Ω
    PackageSO8
    Io_max (A)0.07
    Input Type120Vac,230Vac
    Po_max (W)8
    PF (>)0.5
    ApplicationAC Linear non-dim
    • Integrated 500V MOSFET
    • Power Factor >0.5
    • ±3% Output Current  Precision
    • Eliminate Magnetic Components
    • Excellent EMC Performance
    • Built-in Thermal Fold Back
    • RoHS Compliant and Halogen Free
    • Compact Package: SO8

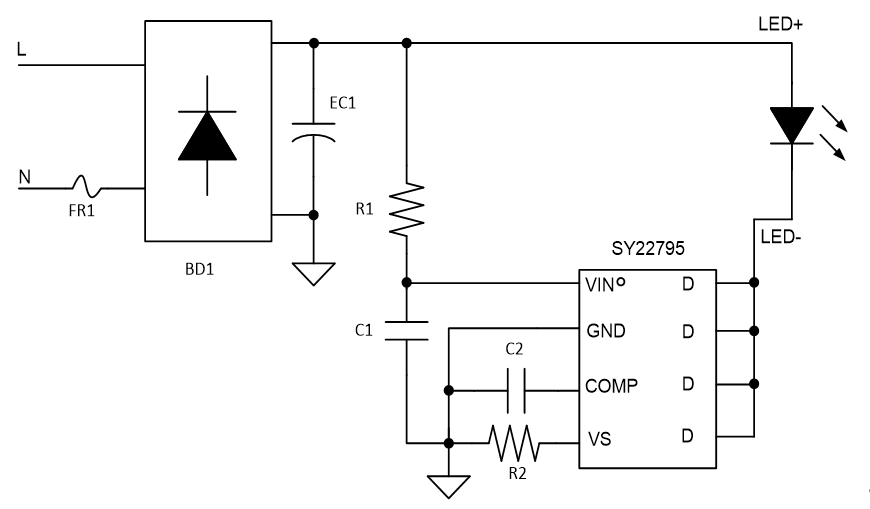

    The SY22795 is a linear AC/DC driver with integrated 500V MOSFET. Constant current control leads to good line regulation and load regulation. The compact package and less peripheral components make it available for small structure lamps application.

    Evaluation Board

    • 2022-02-21_175627

      Photo of evaluation board

    • 2022-02-21_175637

      Photo of evaluation board

    • 2022-02-21_175647

      Photo of evaluation board

    • 2022-02-21_175647

      Photo of evaluation board

    EVB_SY22795FAC

    The EVB_SY22795FAC is intended for evaluating  AC 100~132V input, 135V/60mA output Linear AC/DC Constant Current Driver With Integrated 500V MOSFET
