SY21306RAC (SY7120RAC)

Production
High Efficiency, 16V, 10A Synchronous Step Up Regulator
Datasheet
SY21306RAC High Efficiency, 16V, 10A Synchronous Step Up Regulator Datasheet
Part number SY21306RAC
Vin (min) (V) 2.8
Vin (max) (V) 16
Current limit (A) 2 to 10
Switching frequency (min)(kHz) 300
Switching frequency (max)(kHz) 2000
Vout (min) (V) 2.8
Vout (max) (V) 16
Vref accuracy (±%) 1
Vout accuracy(±%)
Duty cycle (max)(%)
Iq (typ) (uA) 200
Features PFM/FCCM
Package QFN3×3-20
Operating temperature range(°C) -40 to 125
Functional safety category
  • Input Range: 2.8-16V
  • Programmable Pseudo-constant Frequency: 300kHz-2MHz
  • Low RDS(ON) for  Internal Switch

Main FET: 10mΩ

Rectifier FET: 20mΩ

  • PFM/PWM Selectable Light Load Operation Mode
  • Internal Loop Compensation
  • Programmable Peak Current Limit
  • Internal Soft-start Time Limit the Inrush Current
  • Input Voltage UVLO
  • Over Temperature Protection
  • Over Voltage Protection
  • RoHS Compliant and Halogen Free
  • Compact Package:QFN3×3-20



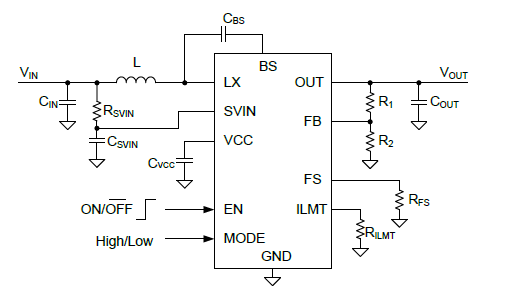

The SY21306 is a high efficiency, high power density synchronous boost regulator. The device uses adaptive constant off time and current mode control. The integrated low RDS(ON) switches minimize the conduction loss.

The SY21306 provides selectable PFM/PWM light load operation mode. The device features cycle-by-cycle peak current limit. The low output voltage ripple, the small external inductor and the capacitor size are achieved at programmable pseudo-constant frequency.

The SY21306 is available in a compact QFN3×3- 20 package.

Evaluation Board

  • SY21306RAC-a

    Photo of evaluation board

  • SY21306RAC-c

    Photo of evaluation board

  • SY21306RAC-d

    Photo of evaluation board

  • SY21306RAC-e

    Photo of evaluation board

  • SY21306RAC-b

    Photo of evaluation board

EVB_SY21306RAC

The EVB_SY21306RAC is intended for evaluating a high efficiency, high power density synchronous Boost regulator SY21306. The device adopts adaptive constant off time and current mode control. The integrated low RDS(ON) switches minimize the conduction loss.

Technical Documentation

Title Date
Silergy_Catalog_Q2_2026 2026-06-12
QFN3x3-20 2022-05-20
