SY21607BFCC - Medium Voltage H-Bridge IC

Features

  • H-bridge Motor Driver
       - Drives a Brush DC Motor or One Winding of a Stepper Motor or Other Loads
       - Low MOSFET On-resistance:
  • 3.5A Maximum Drive Current
  • Power Supply Voltage Range From 8V to 40V
  • PWM (IN/IN) Interface
  • Low Power Standby Mode with Less Than 12µA Supply Current
  • Internal Over Current Protection, Short Circuit Protection, Under Voltage Lockout and Over Temperature Protection
  • Internal Charge Pump with Capacitor Inside
  • Synchronous Rectification
  • Compact Package: SO8E

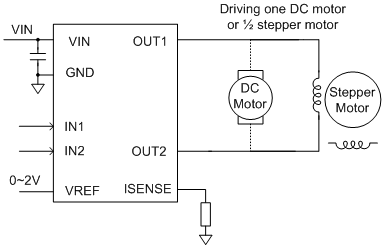

Typical Application

Description

The SY21607B is an H-bridge motor driver solution for motion-control applications. The device can drive one winding of a stepper motor or one brush DC motor. The highly integrated H-bridge driver block consists of two half-bridges with internal logic control, gate drive, over current protection and charge pump circuit. The device is packaged in SO8E package.
The SY21607B operates with a power-supply voltage range from 8V to 40V, and 3.5A maximum output current.
To be compatible with industry-standard devices, the SY21607B uses the PWM (IN/IN) input interface.
The SY21607B provides over current protection, short circuit protection, under voltage lockout and over temperature protection.

Applications

  • Cameras
  • Consumer Products
  • Robotics
  • Medical Devices
