Medium Voltage H-Bridge IC
![]()
- Parameters
- Features
- Description
| Part number |
SY21634FCC |
| Vin (max) (V) |
32 |
| Vin (min) (V) |
5 |
| Number of half bridges |
2 |
| RDS(on) (HS + LS) (mΩ) |
500 |
| Peak output current (A) |
4.5 |
| Sleep current (µA) |
15 |
| Integrated FETs(Yes/No) |
Yes |
| Control interface |
HW |
| Features |
Low power standby mode, OCP, Undervoltage lockout, Automatic fault recovery |
| Operating temperature range(°C) |
-40 to 125 |
| Package |
SOP8E |
| Functional safety category |
|
- Power Supply Voltage Range from 5V to 40V
- 3.6A Maximum Drive Current
- H-bridge Motor Driver
- PWM Interface
- Low Power Standby Mode with Less than 15µA Supply Current
- Internal Over Current Protection, Under Voltage Lockout and Thermal Shutdown
- Automatic Fault Recovery
- Synchronous Rectification
- Compact Package: SO8E

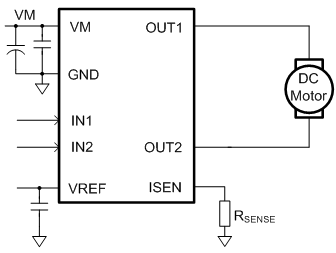

The SY21634 is an H-bridge motor driver solution for motion-control applications. The highly integrated H-bridge driver block consists of two half-bridges with internal logic control, a gate driver, over-current protection, and a charge pump circuit.
The SY21634 operates with a power-supply voltage range from 5V to 40V and has a maximum output current of 3.6A. The SY21634 uses a PWM input interface to ensure compatibility with industry-standard devices. The SY21634 also provides over-current protection, under-voltage lockout, and thermal shutdown protection.
The SY21634 is available in a compact SO8E package.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
The EVB_SY21634FCC is intended for evaluating Medium Voltage H-Bridge IC.
