SY20623EAFM

Production
High Efficiency, 3 A , 2.5V- 6V Input Synchronous Step Down DC/DC converter
Datasheet
SY20623EAFM High Efficiency, 3 A , 2.5V- 6V Input Synchronous Step Down DC/DC converter Datasheet
    Part NumberSY20623EAFM
    Vin_min (V)2.5
    Vin_max (V)6
    Io_max (A)3
    Vref Accuracy±1%
    Efficiency up to88% @ 3.3VIN, 1.8VOUT
    Fsw (MHz)2.4
    Iq (uA)
    Rdson1
    Rdson2
    Interface
    PackageMDFN2.5x2-10
    • Wide Input Voltage Range: 2.5V to 6V
    • Capable of 3A constant output current
    • High Output Voltage Accuracy Over Temperature Range (Ta -40°C to 105°C)
    • PFM under light load condition
    • Pseudo 2.4MHz switching frequency
    • Internal Soft-start Limits the Inrush Current
    • Reliable Protection Mode:
    • Auto-retry Mode for UVLO and OTP.
    •  Hiccup Mode for OCP
    •  Power good indicator
    • 100% dropout operation
    • RoHS Compliant and Halogen Free
    • Compact Package: 2.5×2×1.3 mm

    Evaluation Board

    • 1

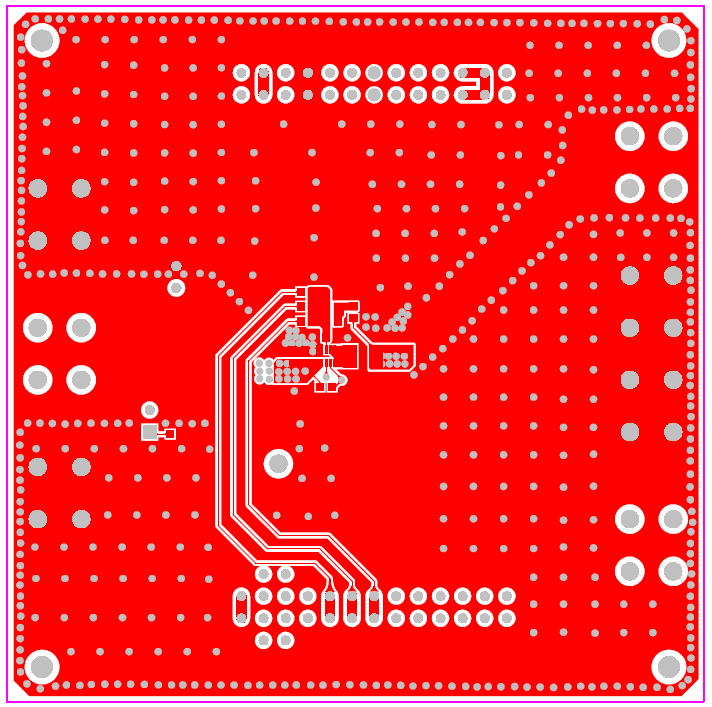

      Photo of evaluation board

    • 2

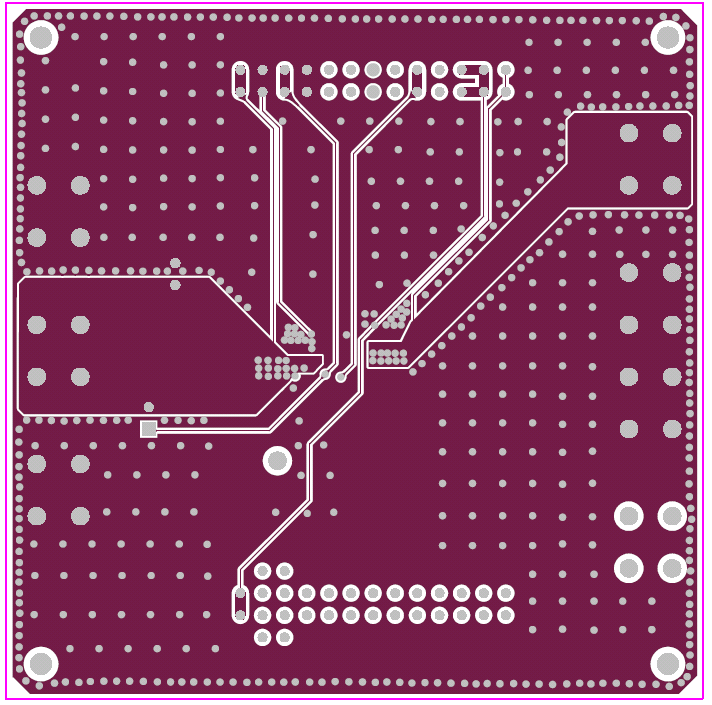

      Photo of evaluation board

    • 3

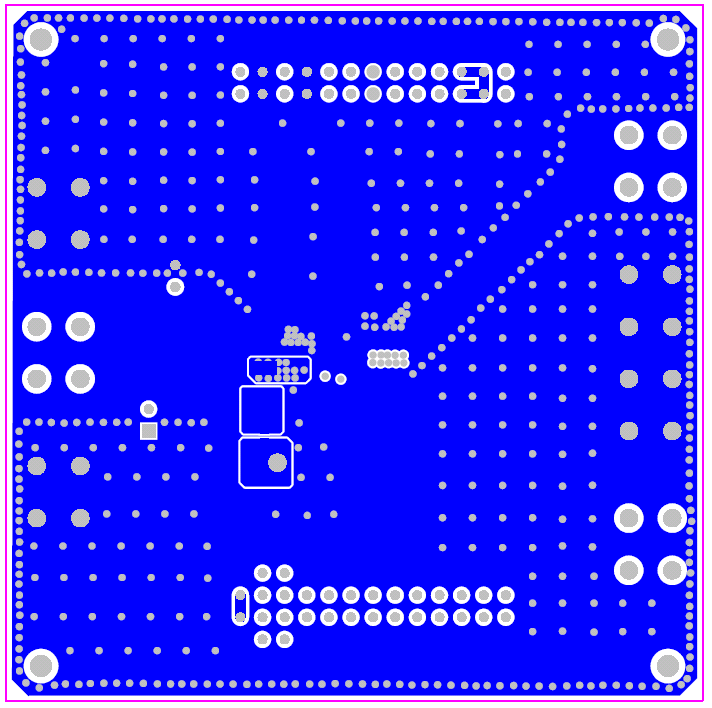

      Photo of evaluation board

    • 4

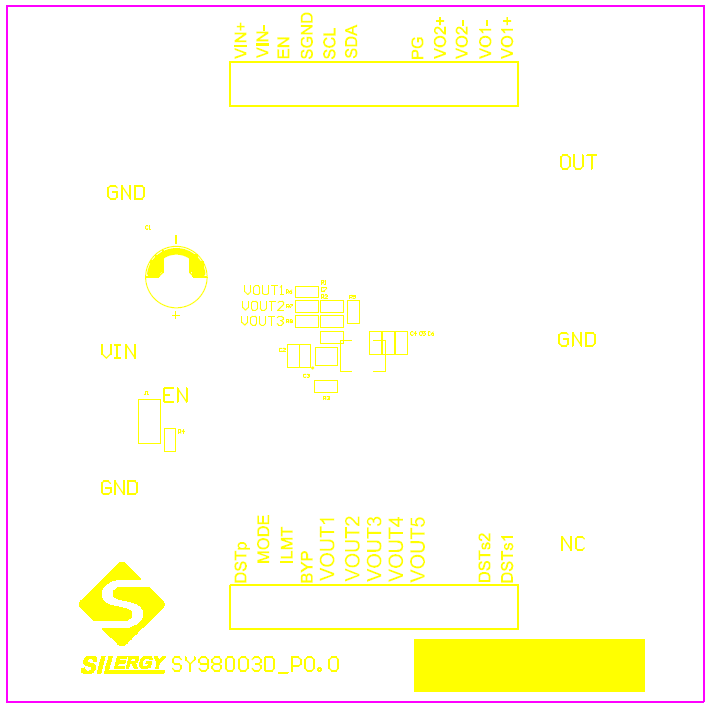

      Photo of evaluation board

    • 5

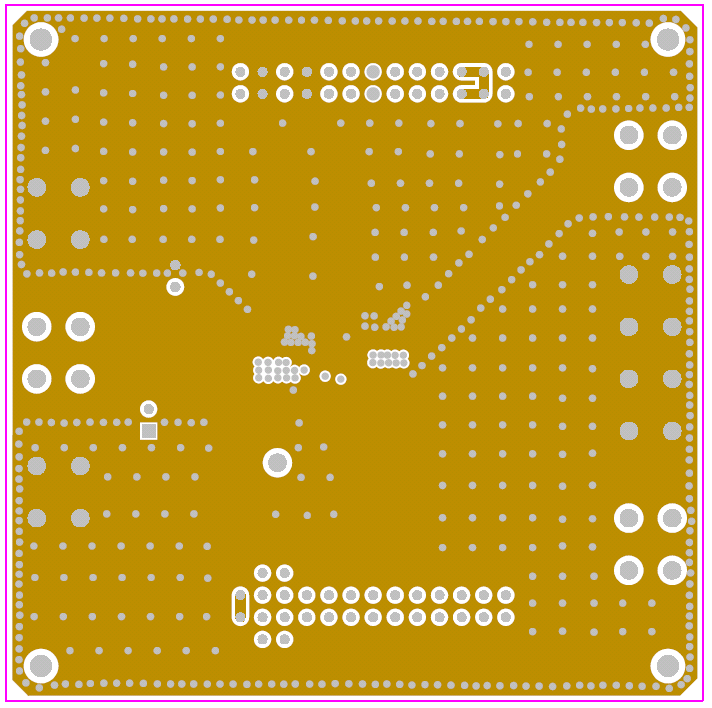

      Photo of evaluation board

    EVB_SY20623EAFM

    The EVB_SY20623EAFM is intended for High Efficiency 3MHz, 3A

     Inductor Built-in Synchronous Step Down Regulator SY20623EAFM.

    Technical Documentation
