SY20661AWHQ

Production
6μA Quiescent Current , 1A, 2.1MHz 36V Input Synchronous Step Down Regulator
Datasheet
SY20661AWHQ 6μA Quiescent Current , 1A, 2.1MHz 36V Input Synchronous Step Down Regulator Datasheet
    Part NumberSY20661AWHQ
    Vin_min (V)4.25
    Vin_max (V)36
    Io_max (A)1
    Vref Accuracy±1%
    Efficiency up to90% @ 12VIN, 3.3VOUT
    Fsw (MHz)2.1
    Iq (uA)6
    Rdson1
    Rdson2
    Interface
    PackageQFN3x2.5-10
    • 4.25-36V Input Voltage Range
    • 1A Load Current Capability
    • Output Adjustable from 1V
    • 2.1MHz Fixed Switching Frequency
    • Low IQ Design
    • Internal Soft-start Limits the Inrush Current
    • Hic-cup Mode Output Short Circuit Protection
    • Over Temperature Protection with Auto Recovery
    • Power Good Indicator
    • RoHS Compliant and Halogen Free
    • Compact Package: QFN3×2.5-10, Max Height: 1.75mm

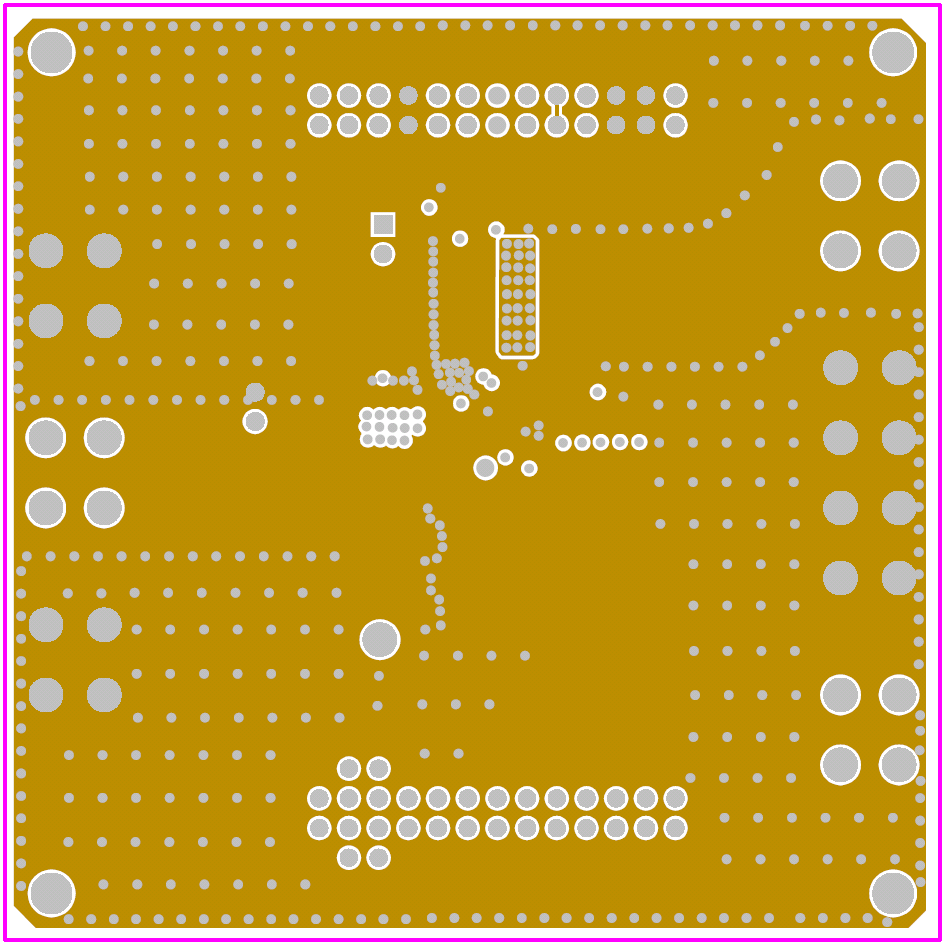

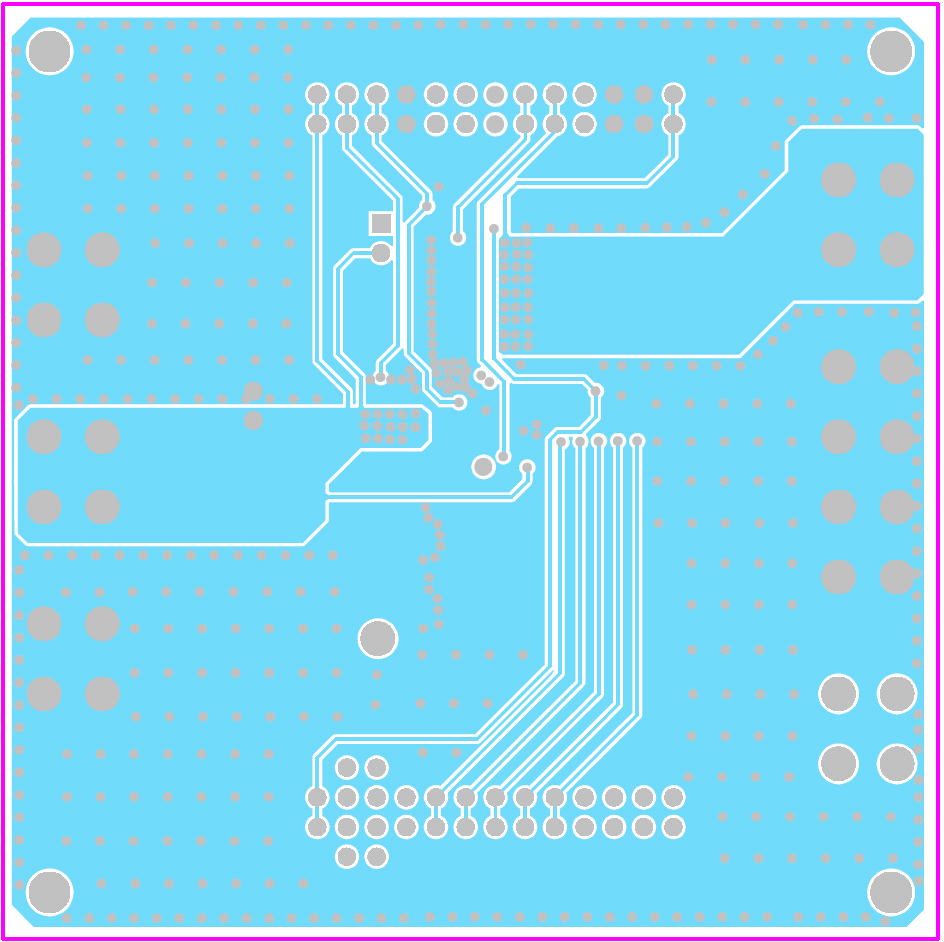

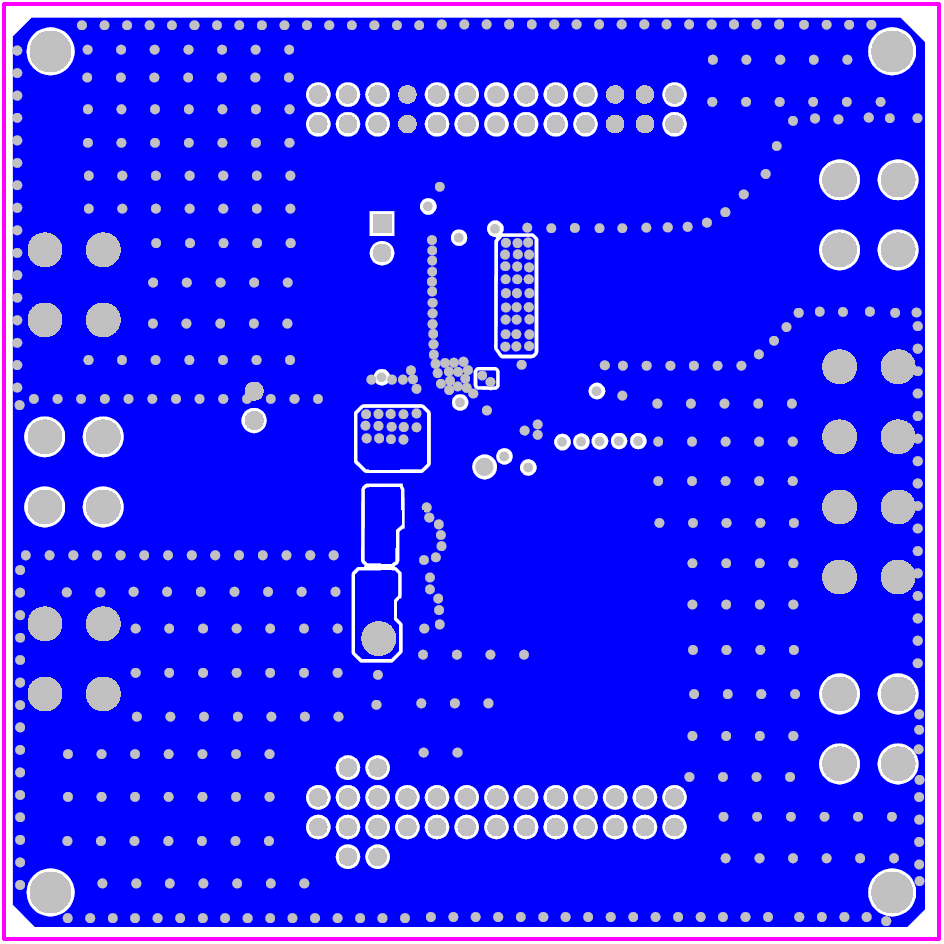

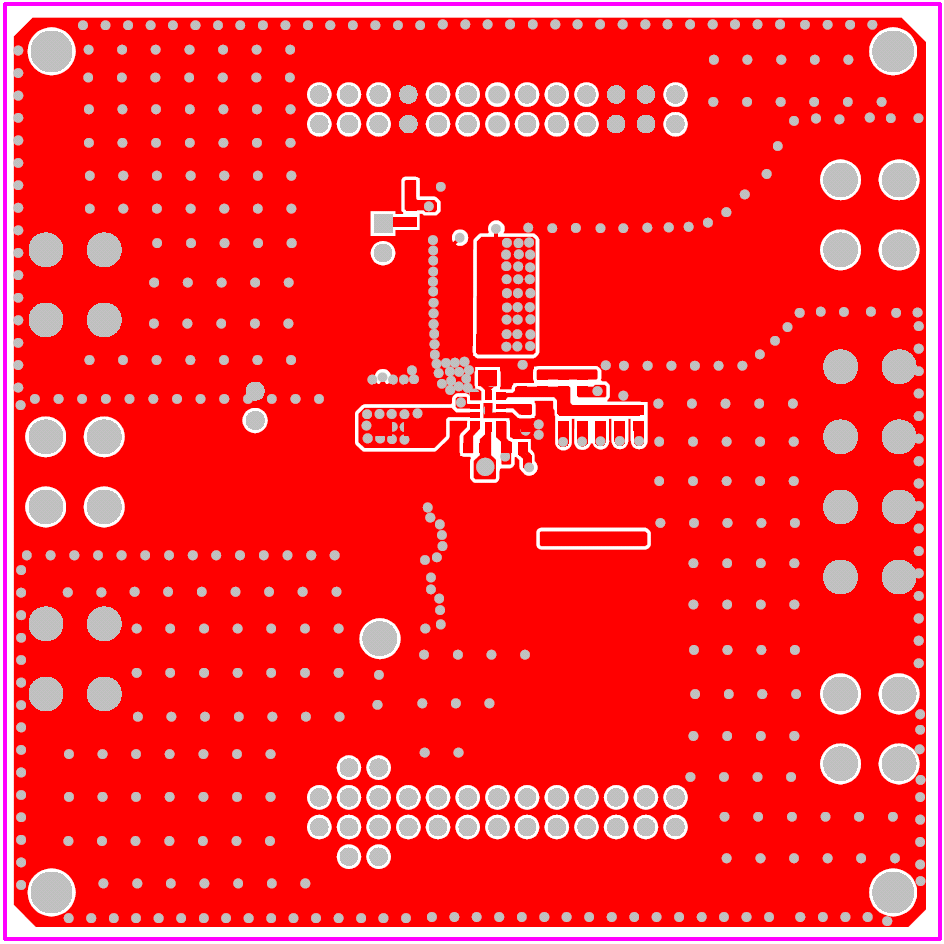

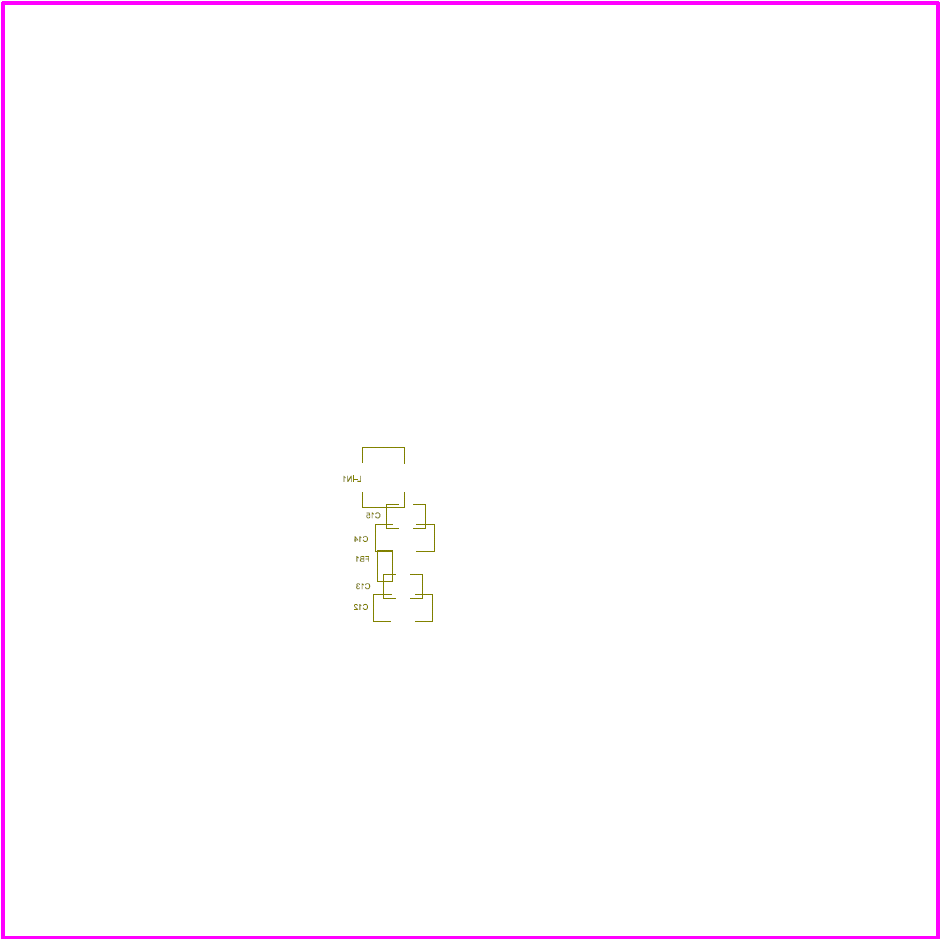

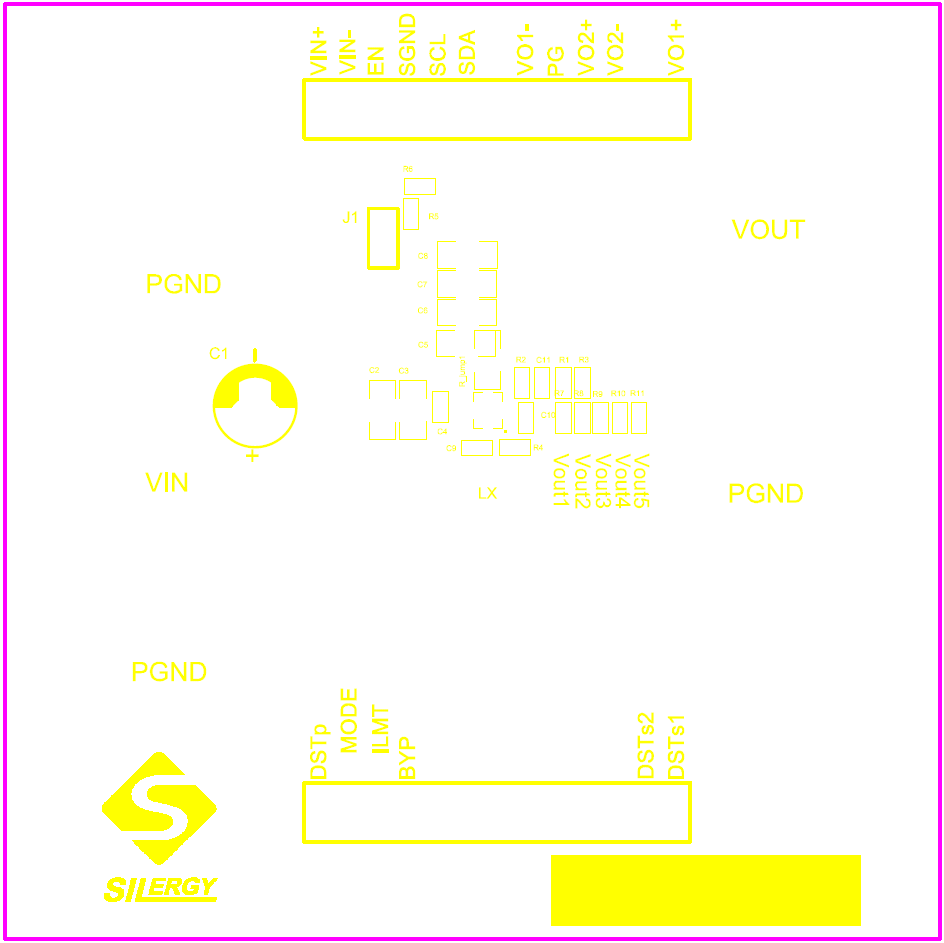

    Evaluation Board

    • 1

      Photo of evaluation board

    • 2

      Photo of evaluation board

    • 3

      Photo of evaluation board

    • 4

      Photo of evaluation board

    • 5

      Photo of evaluation board

    • 6

      Photo of evaluation board

    EVB_SY20661AWHQ

    The EVB_SY20661AWHQ is used to evaluate 6μA Quiescent Current , 1A, 2.1MHz

     36V Input Synchronous Step Down Regulator SY20661AWHQ.
