SY20694WNQ

Production
14V Input, 5V/1W Output, Isolated DCDC converter
Datasheet
SY20694WNQ 14V Input, 5V/1W Output, Isolated DCDC converter Datasheet
    Part NumberSY20694WNQ
    Vin_min (V)4.5
    Vin_max (V)14
    Io_max (A)0.2
    Vref Accuracy
    Efficiency up to65% @ 5VIN, 5VOUT
    Fsw (MHz)1.6
    Iq (uA)
    Rdson1
    Rdson2
    Interface
    PackageQFN4x5.5-14
    • 3kV DC(1s) Isolated Voltage
    • 4.5 to 14V Input Voltage Range
    • Secondary Output: 5V/1W Capability
    • ±1% Typical Output Voltage Regulation
    • Internal Soft-start Limits the Inrush Current
    • Output Over Current Protection with Auto Recovery
    • Output Short Circuit Protection
    • Over Temperature Protection with Auto Recovery
    • Input UVLO
    • RoHS Compliant and Halogen Free
    • Compact Package: QFN4×5.5-14
    • Height: 4.55mm

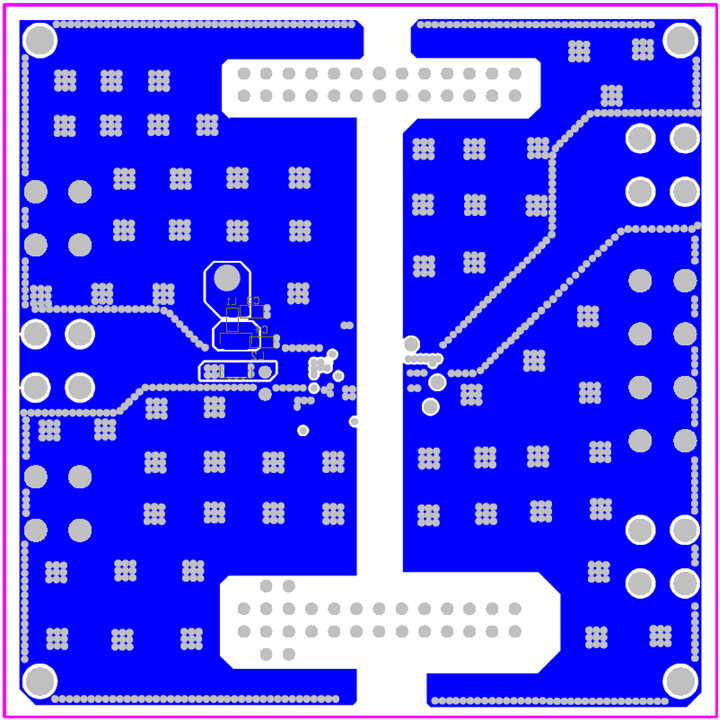

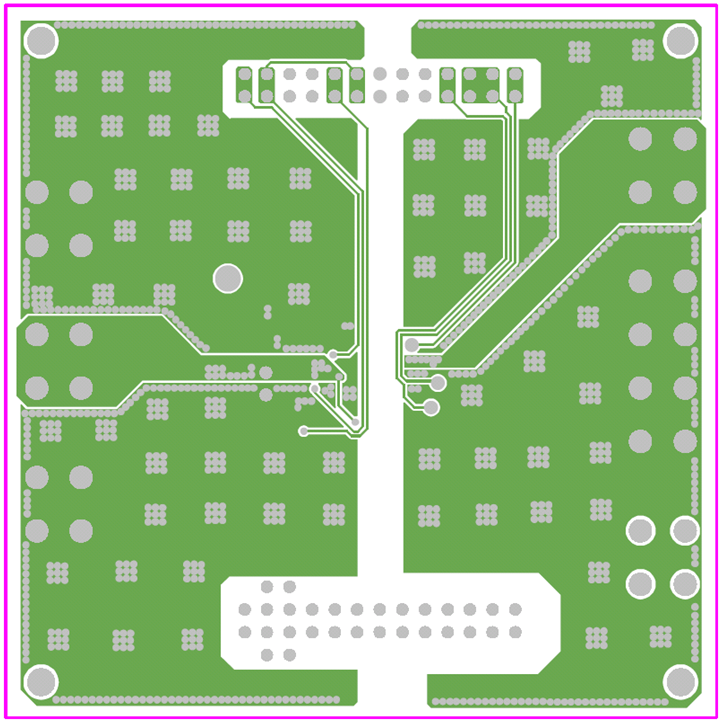

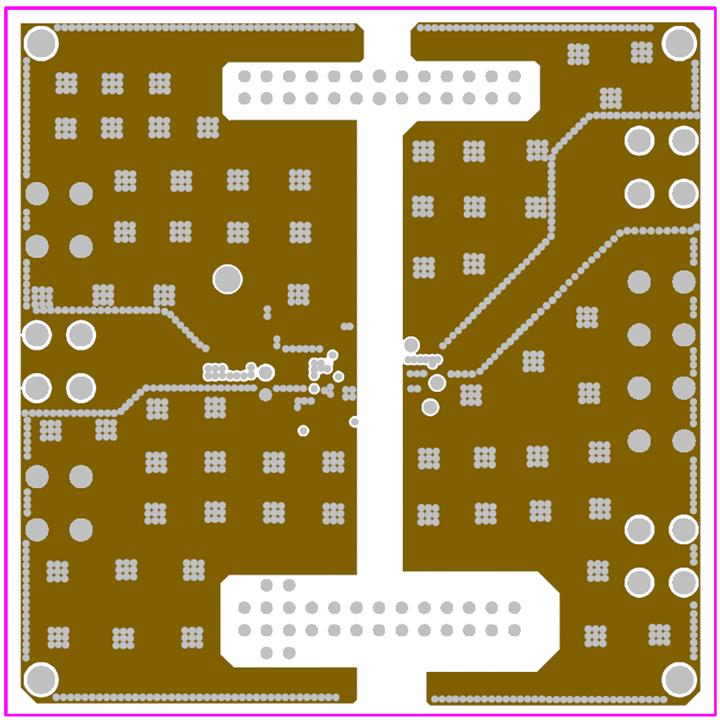

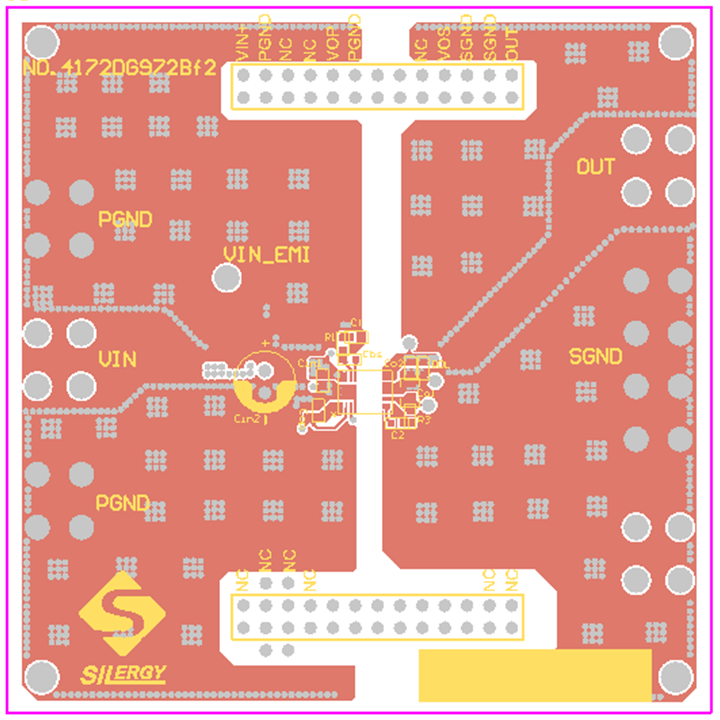

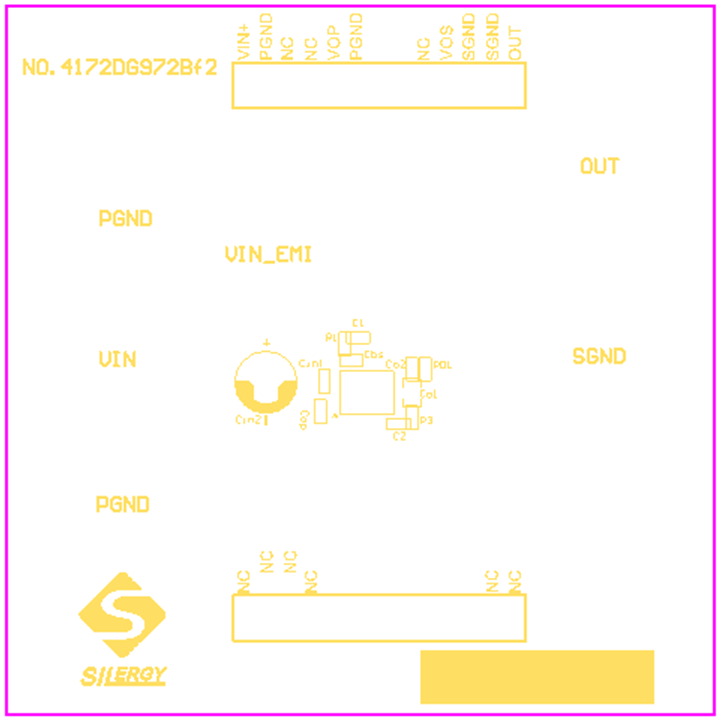

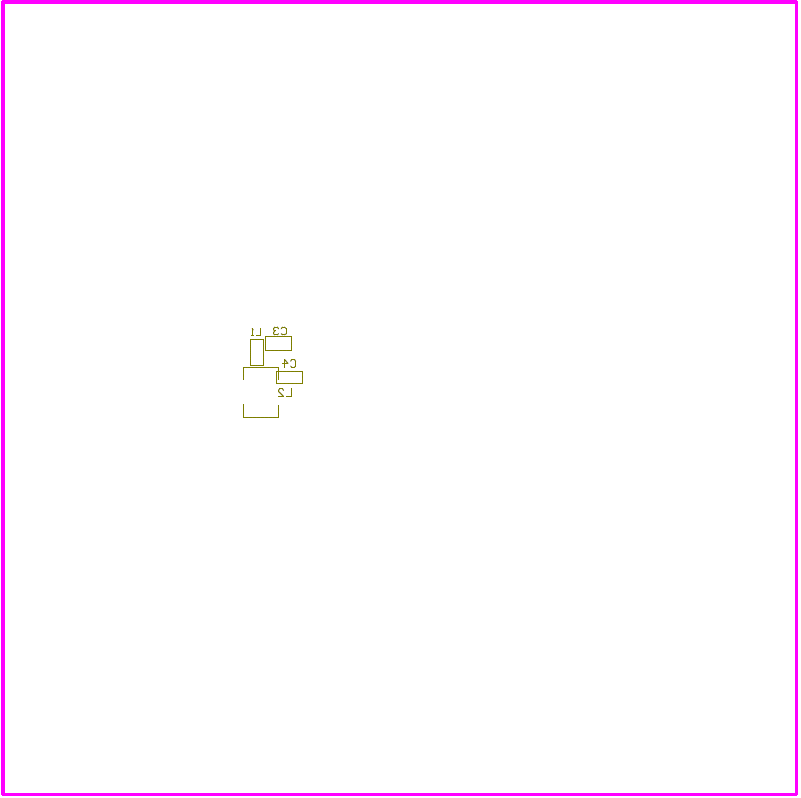

    Evaluation Board

    • 1

      Photo of evaluation board

    • 2

      Photo of evaluation board

    • 4

      Photo of evaluation board

    • 3

      Photo of evaluation board

    • 3

      Photo of evaluation board

    • 3

      Photo of evaluation board

    • 6

      Photo of evaluation board

    • 5

      Photo of evaluation board

    • 5

      Photo of evaluation board

    EVB_SY20694WNQ

    The EVB_SY20694WNQ is used to evaluate 14V Input, 5V/1W Output, Isolated DCDC converter SY20694WNQ.
