SY21566WDQ (SQ40103WDQ)

Power Management Unit for DDR5 With 4 Buck Regulator and 2 LDOs

SY21566WDQ Power Management Unit for DDR5 With 4 Buck Regulator and 2 LDOs Datasheet

Parameters
Features
Description

Part number	SY21566WDQ
Vin (min) (V)	4.25
Vin (max) (V)	15
Channel(#)	4 Chs Buck+2 Chs LDO
Application	DDR5 Power Supply
Features	Compliant with JESD301-1 specification, ±0.75% feedback reference accuracy for Buck channels, independently programmable parameters for each channel, embedded 8-bit ADC, UVLO, OVP, OCP, OTP functions
Package	QFN5×5-35

• 4.25V to 15V wide input voltage range

• Programmable dual phase and single phase regulator for SWA and SWB

• Automatic switchover from VIN_Mgmt input supply to VIN_Bulk input supply

• Error injection capability

• Persistent error log registers

• Write protect function

• Independently programmable output voltages, power up and power down sequence for switch regulators

• Input and output power good status reporting mechanism

• Thermal shutdown protection

• Output switch regulators protection feature: output over voltage, output under voltage, output current limiter

• Output current and power measurement, output current threshold mechanism

• Temperature measurement, temperature warning threshold, critical temperature shutdown threshold

• Multi time programmable non-volatile memory

• Programmable and DIMM specific registers for customization

• General status interrupt function

• VIN_Bulk input supply protection feature: input over voltage

• Flexible open drain IO (I2C) and push pull (I3C) IO support

• 8 bits ADC

• Channel 1 and Channel 2 dual phase synchronous buck converter

--Feedback reference accuracy: ±0.75%

--Typical output voltage: 1.1V

--Programmed output voltage range: 0.6V to 1.435V

--Maximum continuous output current: 10A

--Programmable quasi-fixed switching frequency

--Output over voltage protection

--Output under voltage protection

--Cycle-by-cycle valley current limit

• Channel 3 synchronous buck converter

--Feedback reference accuracy: ±0.75%

--Typical output voltage: 1.1V

--Programmed output voltage range: 0.6V to 1.435V

--Maximum continuous output current: 5A

--Programmable quasi-fixed switching frequency

--Output over voltage protection

--Output under voltage protection

--Cycle-by-cycle valley current limit

• Channel 4 synchronous buck converter

--Feedback reference accuracy: ±0.75%

--Typical output voltage: 1.8V

--Programmed output voltage range: 1.5V to 2.835V

--Maximum continuous output current: 5A

--Programmable quasi-fixed switching frequency

--Output over voltage protection

--Output under voltage protection

--Cycle-by-cycle valley current limit

• Channel 5 LDO

--Output voltage: 0.9V to 1.2V

--Minimum output current: 20mA

• Channel 6 LDO

--Output voltage: 1.7V to 1.9V

--Minimum output current: 25mA

• Package: QFN5×5-35

• MSL rating: MSL3

The SY21566 is a high efficiency PMIC designed for Server DDR5 DIMM modules. The SY21566 meets PMIC5000 of JESD301-1 specification.

This IC integrates 4-channel synchronous Buck converter and 2-channel LDO. The device works in a wide input voltage range from 4.25V to 15V.

Channel 1 and channel 2 are dual phase Buck regulator with typical 1.1V output voltage and totally 10A average, 12A peak current capability. Interleaved control logic is integrated internally to reduce output voltage ripple. Channel 3 is also typical 1.1V output Buck regulator. The current capability is 5A average and 6A peak. Channel 4 is typical 1.8V output, 5A average and 6A peak current capability Buck regulator. Channel 5 and Channel 6 are both LDO. Channel 5 output voltage is 1.0V and channel 6 output voltage is 1.8V.

The SY21566 supplies under voltage lockout, over voltage, over current and over temperature protection to ensure reliable operation of the system.

An 8 bits ADC is integrated internally to achieve real time current and temperature measurement. The host can read the measure result through I2C/I3C interface.

The SY21566 is available in QFN5×5-35 package.

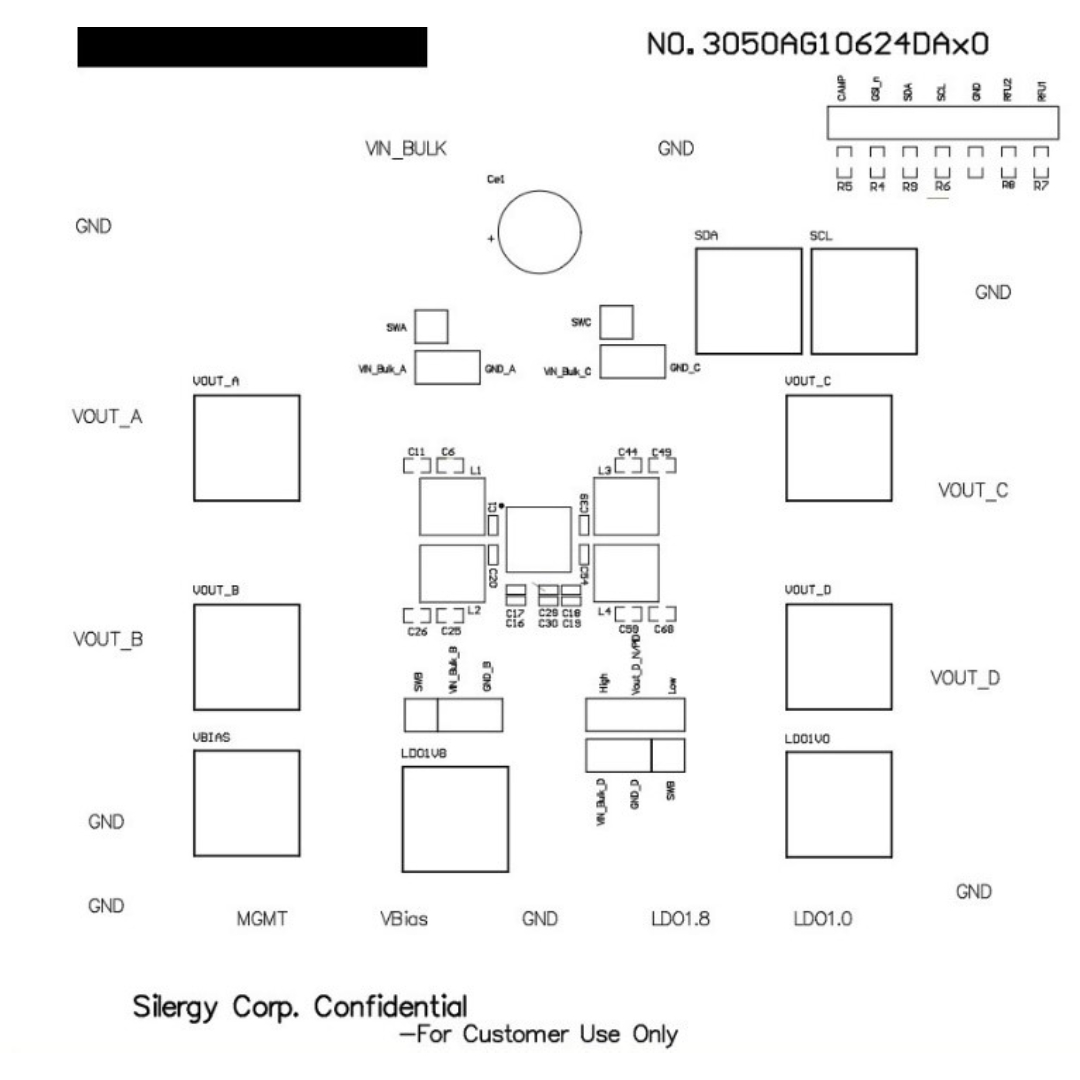

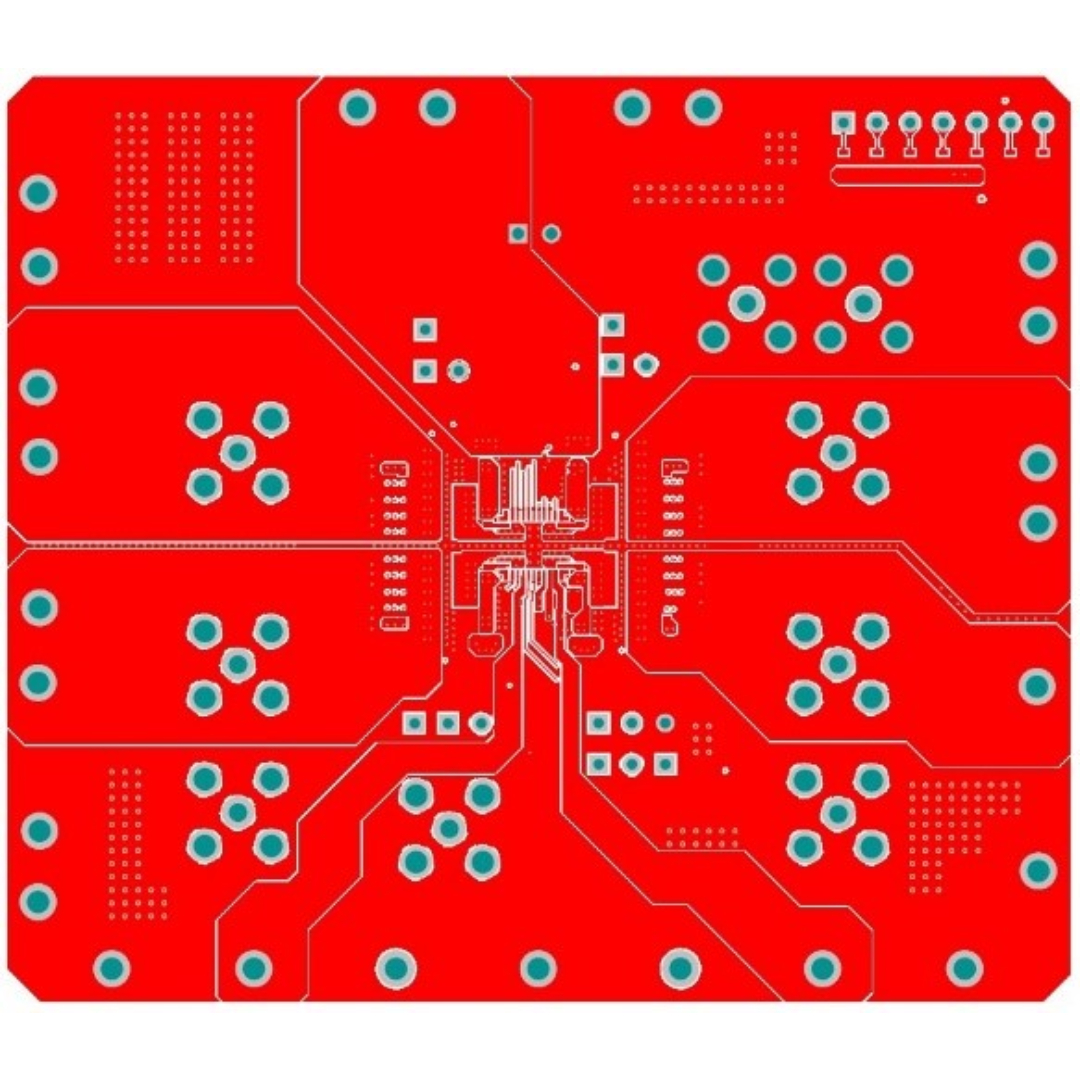

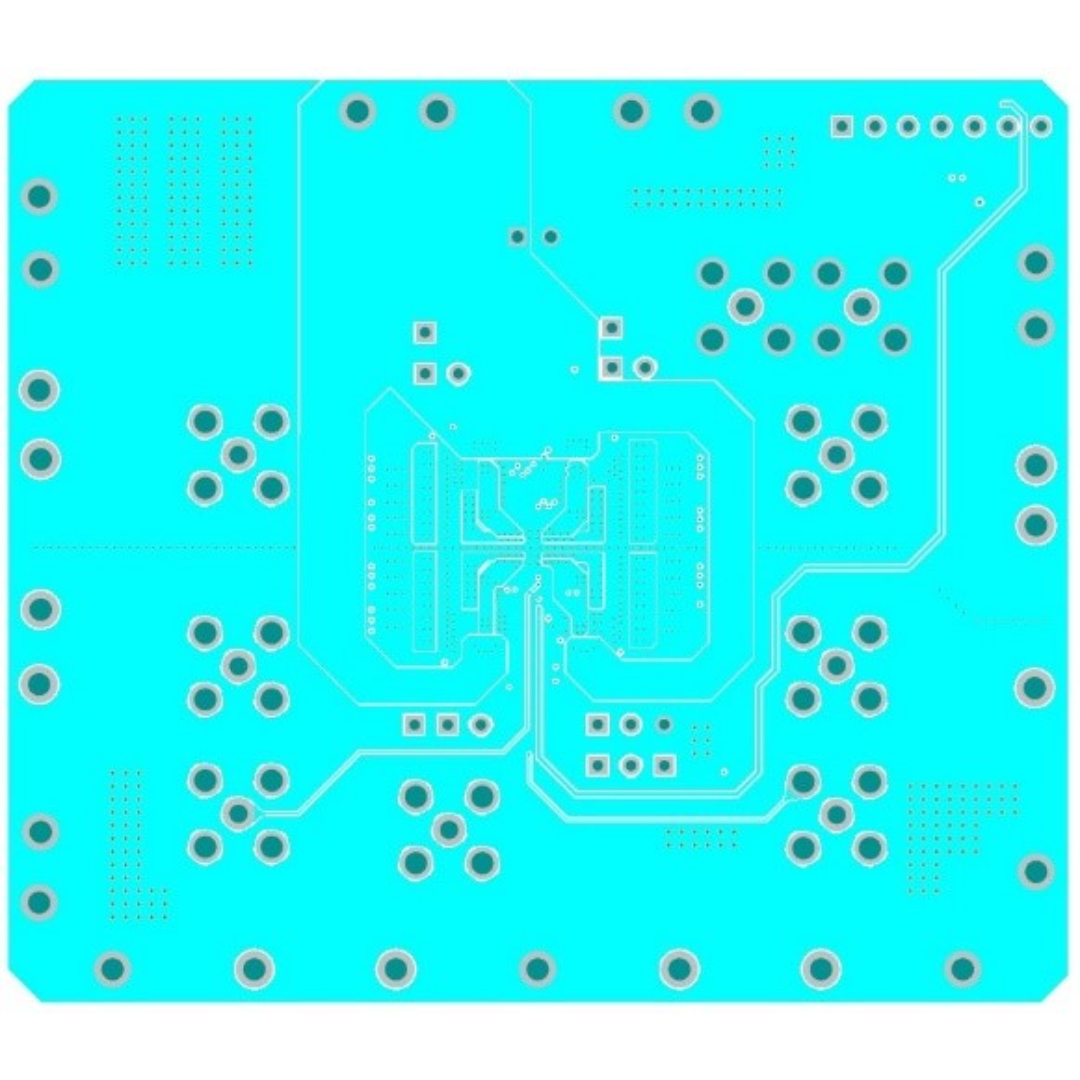

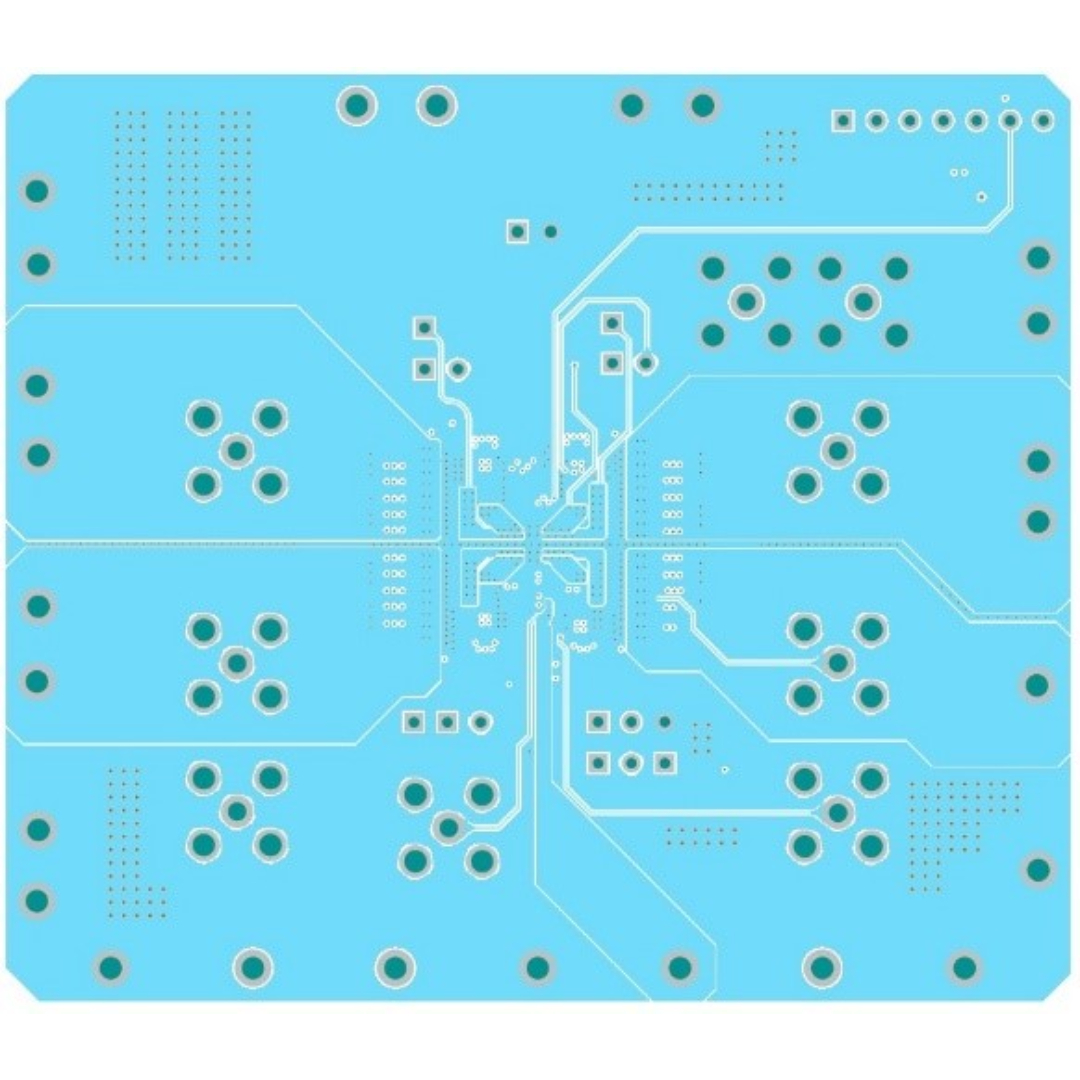

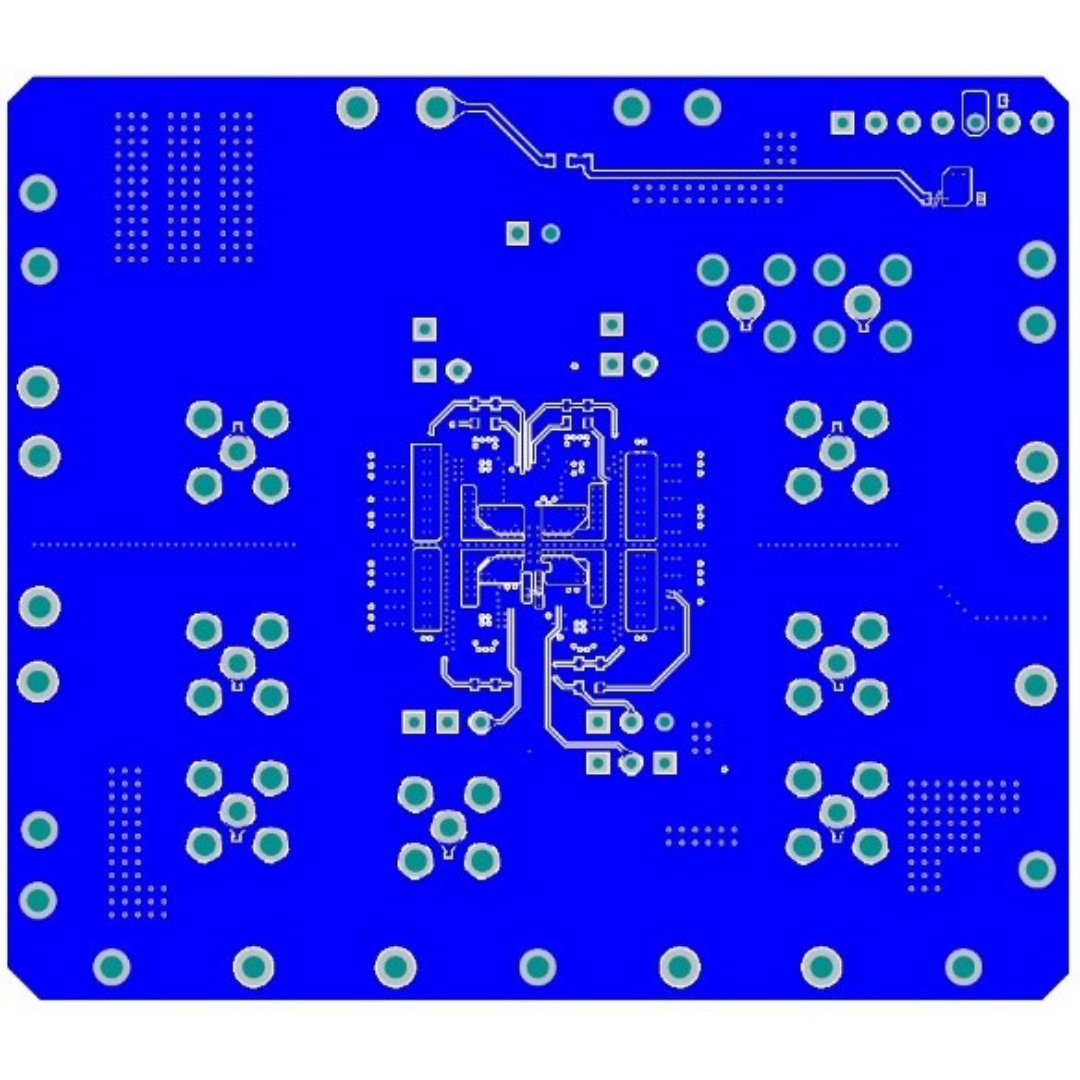

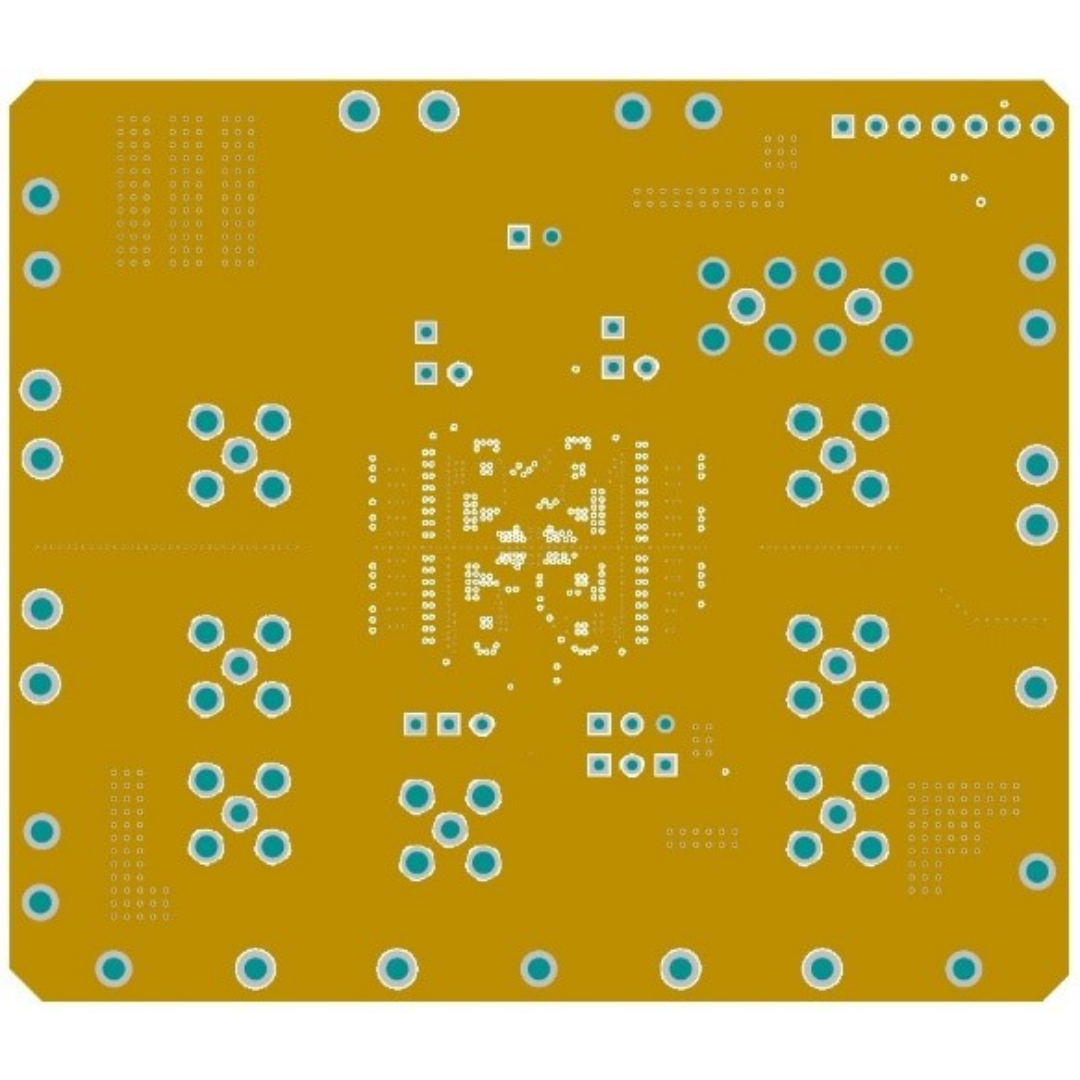

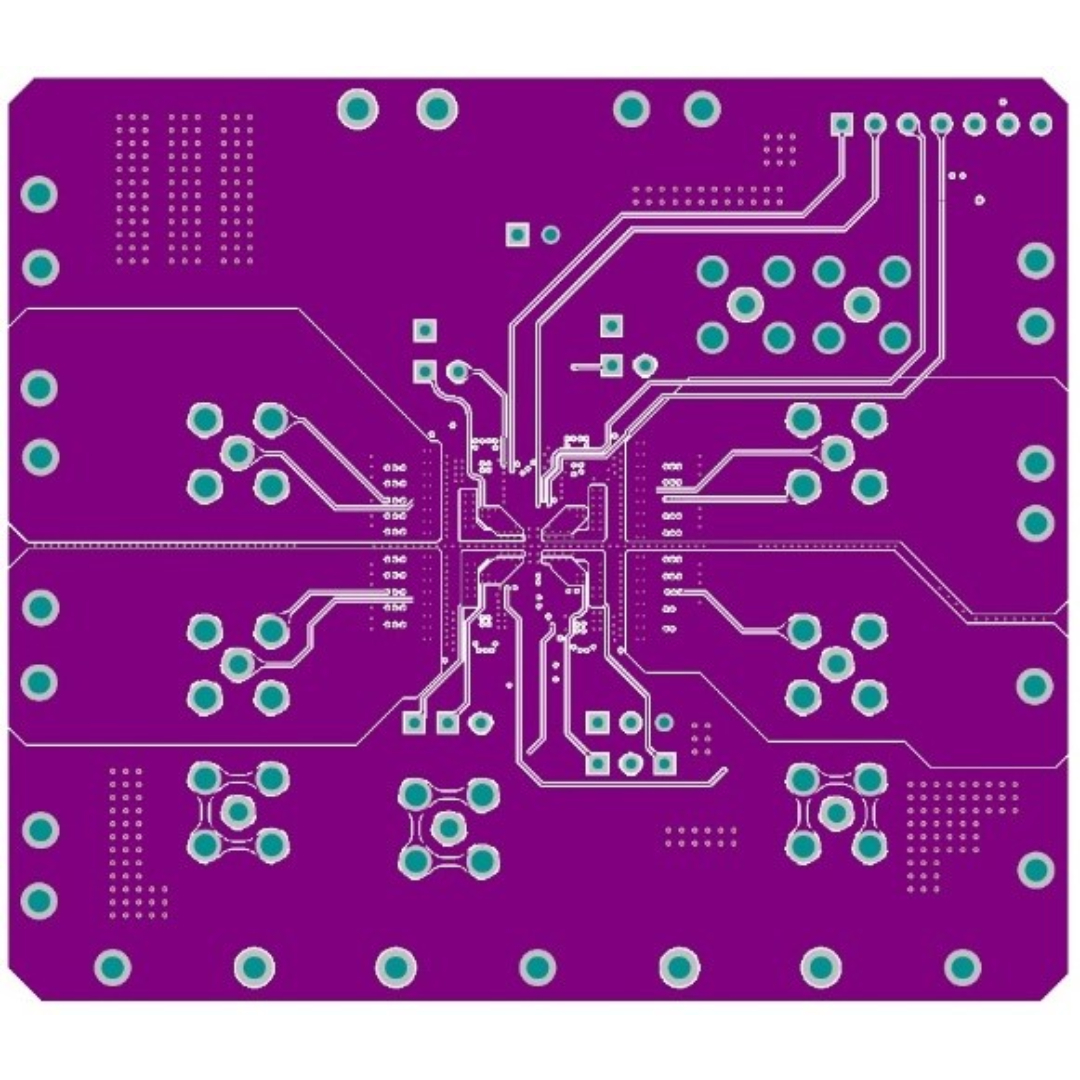

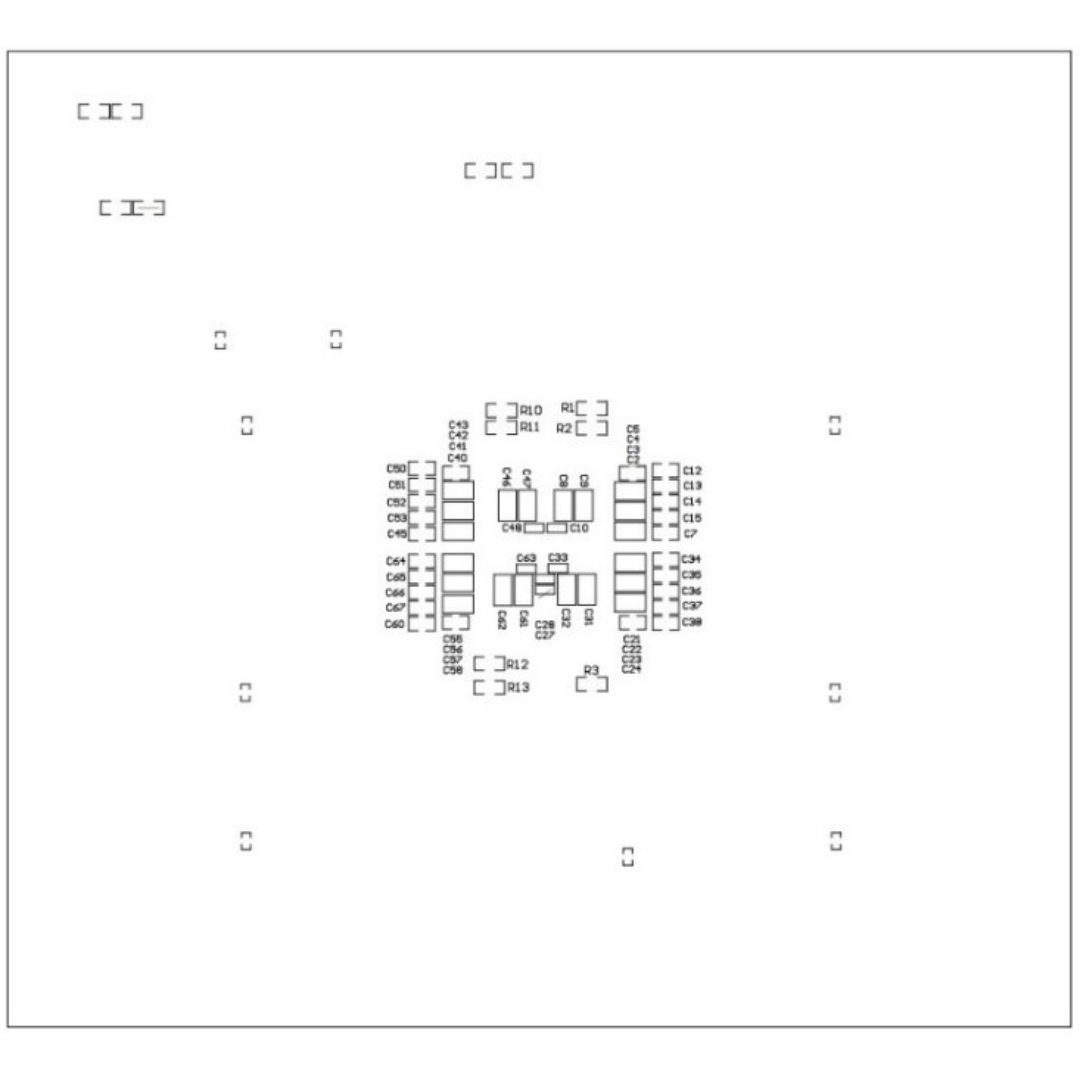

Evaluation Board

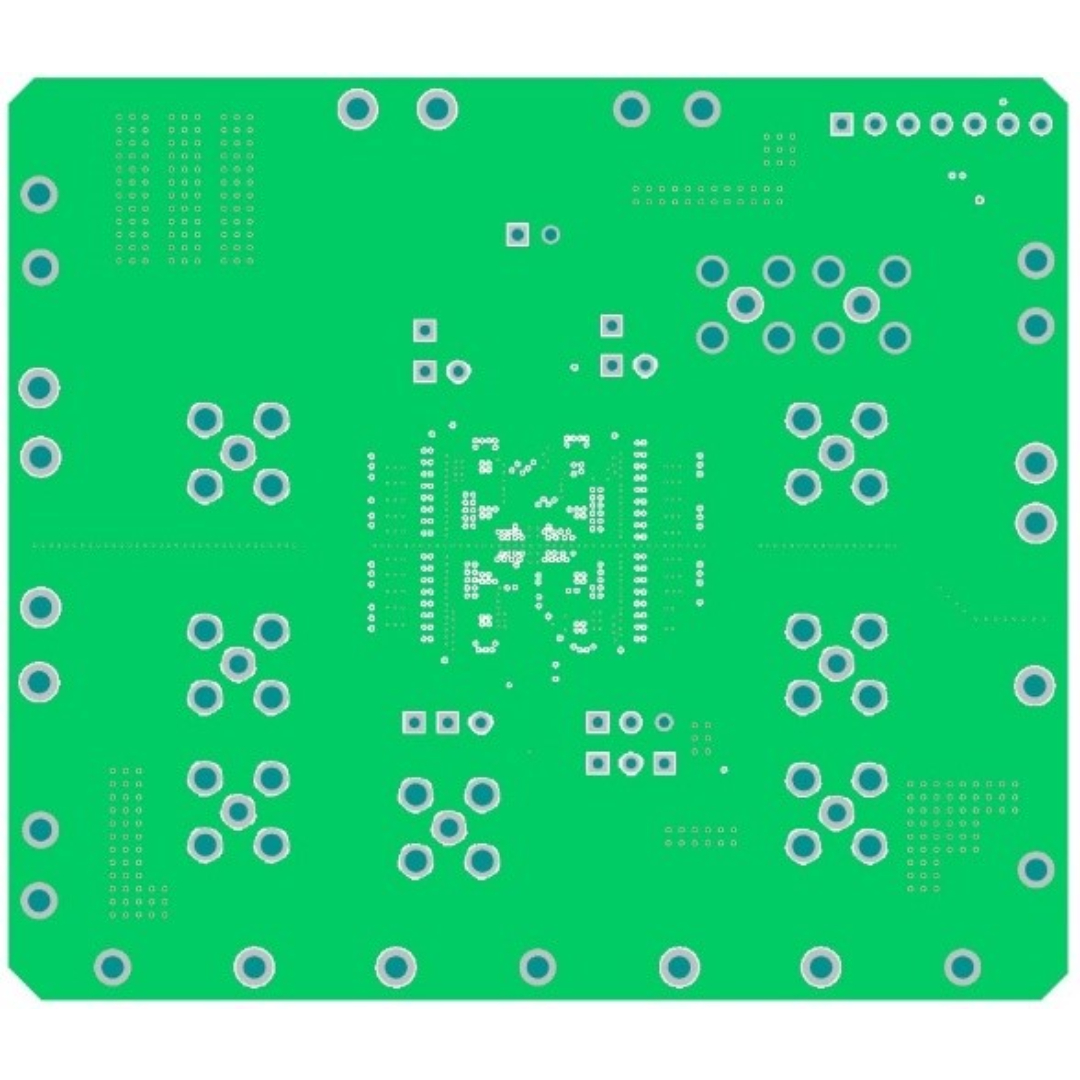

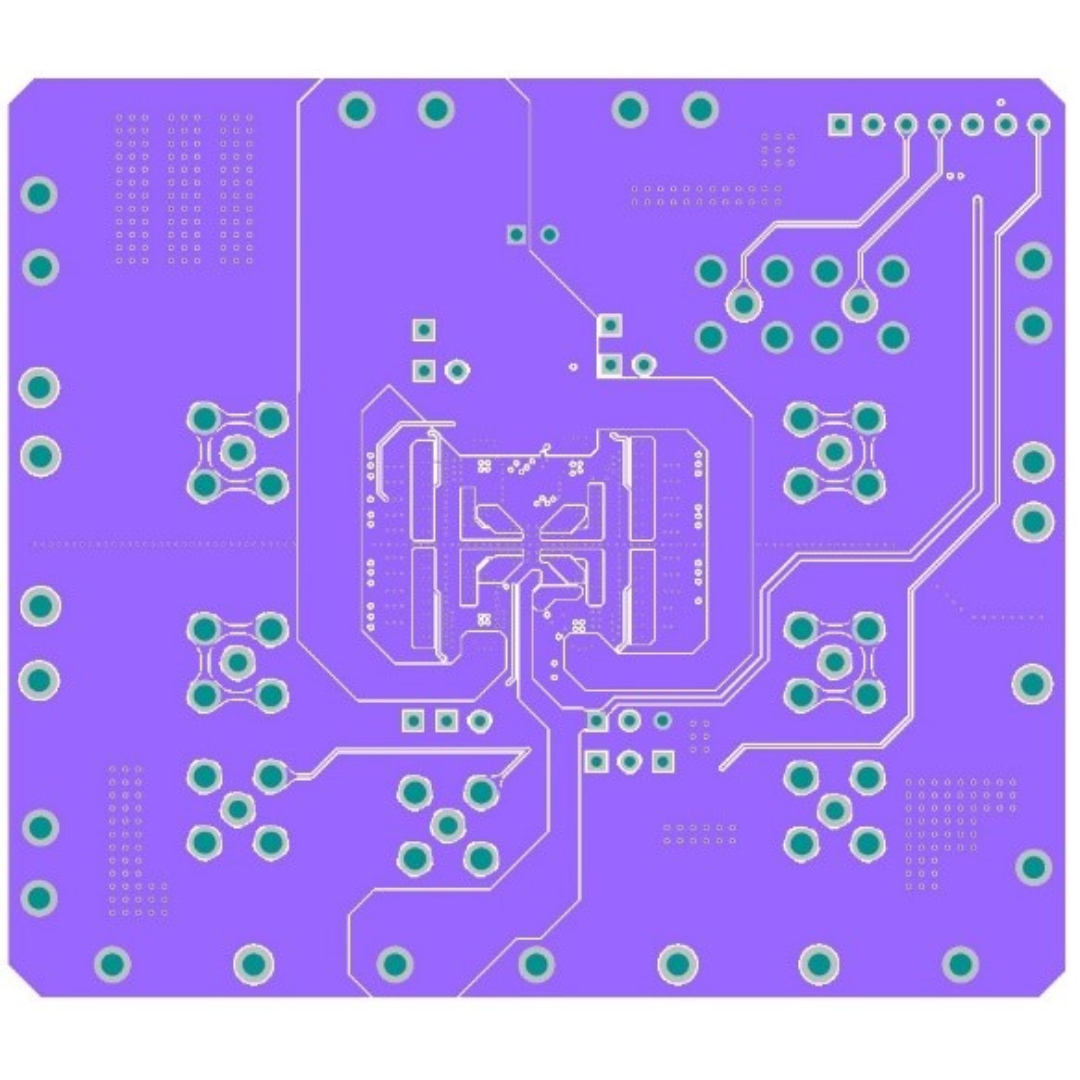

Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

EVB_SY21566WDQ

EVB File

The EVB_SY21566WDQ is intended for evaluating power management unit for DDR5 with 4 Buck regulator and 2 LDOs.
