SY23416YFAC

Production
Flyback Regulator With Primary Side CV/CC Control For Adapters and Chargers
Datasheet
SY23416YFAC Flyback Regulator With Primary Side CV/CC Control For Adapters and Chargers Datasheet
    Part NumberSY23416YFAC
    DescriptionFlyback Regulator with 650V integrated for 18W
    Po_max (W)18
    BV (V)650
    ApplicationIsolation
    No Load Loss<75mW
    Protection ModeOCP/OVP
    Standards & Certification
    PackageSO8
    • Tight PSR CC/CV Regulation Over Entire Operating Range
    • QR-mode Operation for High Efficiency
    • PWM/PFM Control for High Average Efficiency
    • Fast Dynamic Load Transient Response
    • Cable Compensation for Better Load Regulation
    • Low Start Up Current: 5μA Max
    • Minimum Frequency Limitation 500Hz
    • No-load Power is Less than 50mW
    • Reliable Protections for OVP, SCP, OTP, OCP
    • Reliable Protections for Safety Requirement
    • Maximum Switching Frequency Limitation 125kHz
    • Integrated 650V/2.2ΩMOSFET
    • Compact Package: SO8

    Evaluation Board

    • 2023-03-02_110001

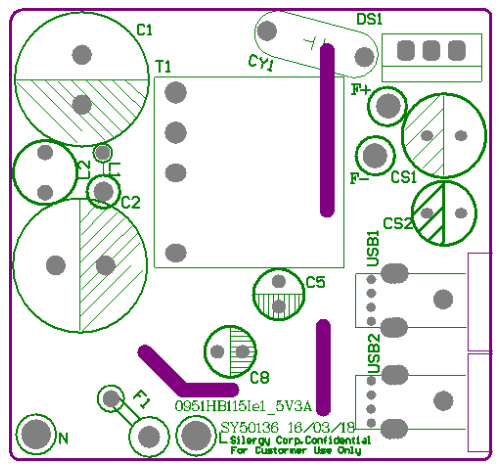

      Photo of evaluation board

    • 2023-03-02_105949

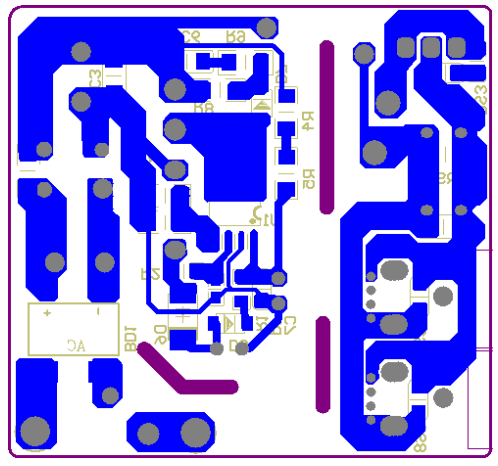

      Photo of evaluation board

    EVB_SY23416YFAC

    The EVB_SY23416YFAC is intended for evaluating Flyback Regulator With Primary Side CV/CC Control For Adapters and Chargers
