High- and Low-Side, Bidirectional, Zero-Drift, High-accuracy Current/Power Monitor with Accumulator and Programmable Alert
Datasheet
SY24657VSS High- and Low-Side, Bidirectional, Zero-Drift, High-accuracy Current/Power Monitor with Accumulator and Programmable Alert Datasheet
    Part NumberSY24657VSS
    DescriptionHigh-accuracy Power Monitor
    Vcc_min (V)2.7
    Vcc_max (V)5.5
    CM Sense Range0-36V
    DM Sense Range±81.92mV
    Iq (uA)320
    Accuracy (max)/
    Gain Error (max)±0.45%
    Offset (max)±10uV
    Features / Special Function16-bit ADC for BUS &Shunt Voltage
    PackageCSP1.39x1.68-12
    • Senses Bus Voltages from 0V to 36V
    • High-Side or Low-Side Sensing
    • Embedded 16bit ADC
    • Reports Current, Voltage, and Power
    • Integrated Power Accumulator for Average Power Monitoring
    • High Accuracy:
    •  --0.45% Gain Error (Max)
    •  --±10μV Shunt Offset (Max)
    • Low IB: 1nA (Max)
    • Configurable Averaging Options
    • Abundant Alert Sources Setting
    • 1.8V I2C, SMBus Compliant Interface
    • 16 Programmable Addresses
    • Operates from 2.7V to 5.5V Power Supply
    • Start-Up Mode Options:
    •  -- SY24657: Active Conversion
    • Industrial Temperature: –40°C~125°C
    • Package: CSP1.39×1.68-12

    Evaluation Board

    • 2

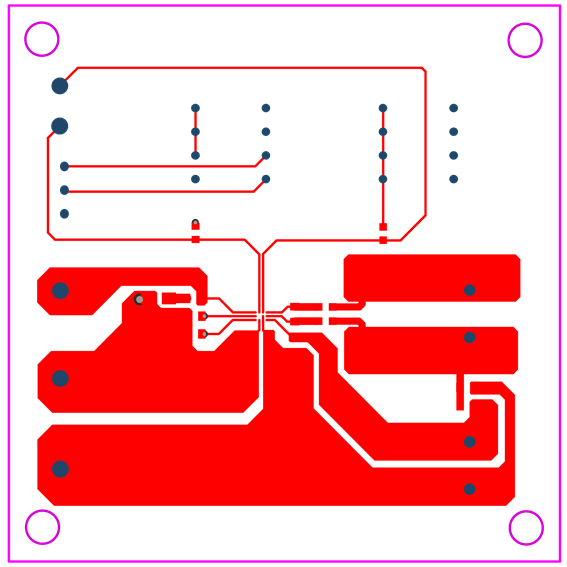

      Photo of evaluation board

    • 3

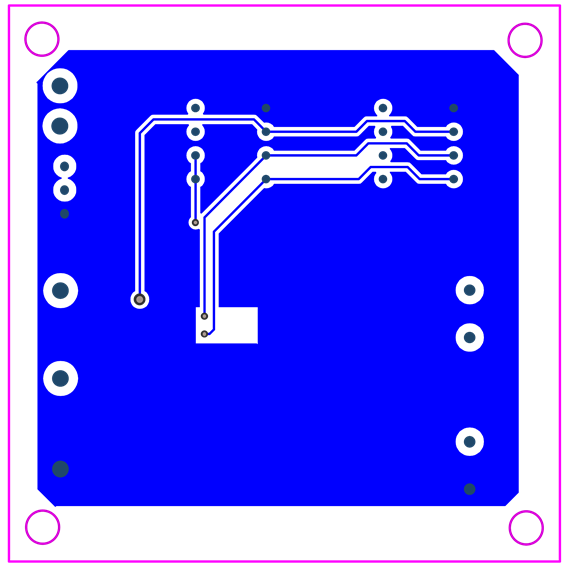

      Photo of evaluation board

    • 1

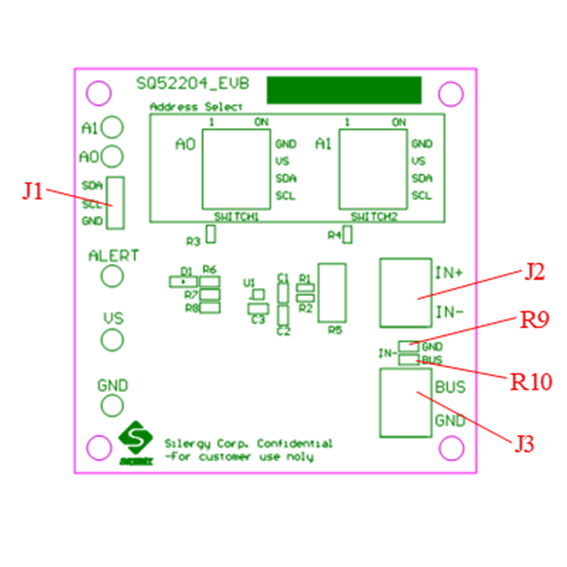

      Photo of evaluation board

    EVB_SY24657VSS

    The EVB_SY24657VSS is intended for evaluating High- and Low-Side, Bidirectional, Zero-Drift, High-accuracy Current/Power Monitor with Accumulator and Programmable Alert.
