SY80703SYC

Production
High Efficiency, 2.4MHz, 3A Synchronous Step Down Regulator
Datasheet
SY80703SYC High Efficiency, 2.4MHz, 3A Synchronous Step Down Regulator Datasheet
    Part numberSY80703SYC
    Channel(#)1
    Vin (min) (V)2.5
    Vin (max) (V)6.0
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)2400
    Vout (min) (V)0.788
    Vout (max) (V)0.812
    Iout (max) (A)3
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)±1.5%
    Vout accuracy(±%)
    Control mode
    Duty cycle (max)(%)
    Operation mode
    Iq (typ) (uA)23
    Features
    PackageDFN2×2-7
    Operating temperature range(°C)-40°C to 125°C
    Functional safety category
    • 2.5~6.0V Input Voltage Range
    • 23μA Low Quiescent Current
    • Low RDS(ON) for Internal Switches (Top/Bottom) 31mΩ /23mΩ
    • Instant PWM Control Achieve Ultra Fast Dynamic Response
    • 2.4MHz Switching Frequency Minimizes the External Components
    • Internal Soft-start Limits the Inrush Current
    • 100% Drop Out Operation
    • Output Auto Discharge Function
    • Hiccup Mode for Short Circuit Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2×2-7

    The SY80703 is a high efficiency 2.4MHz synchronous step down DC/DC regulator which is capable of delivering up to 3A output currents. It can operate over a wide input voltage range from 2.5V to 6V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

    Evaluation Board

    • 幻灯片1

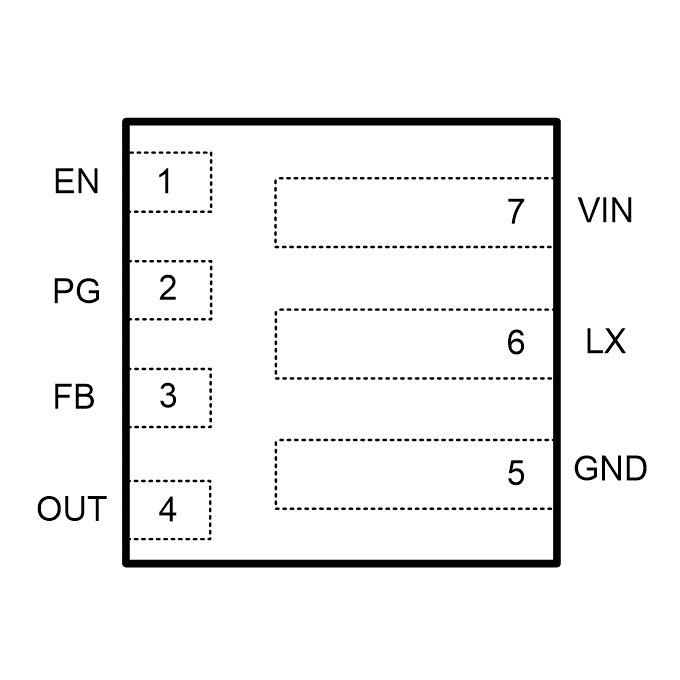

      Photo of evaluation board

    • 幻灯片3

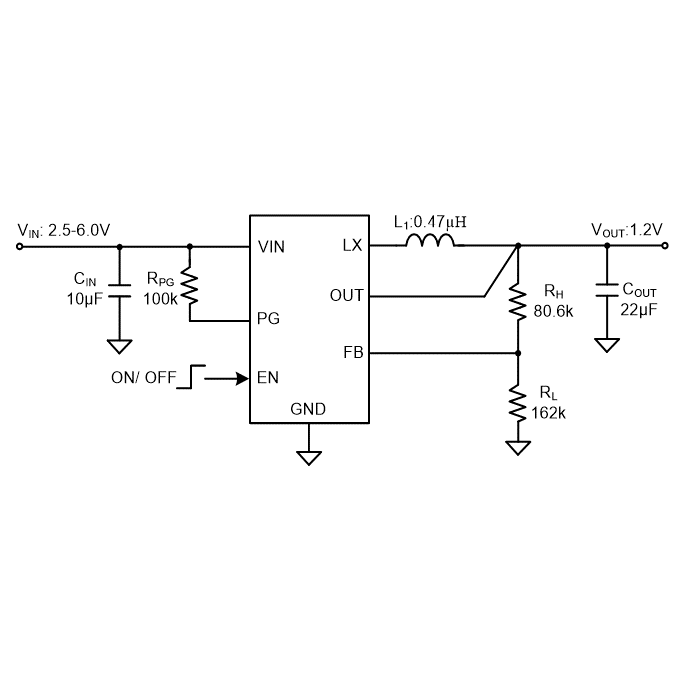

      Photo of evaluation board

    • 幻灯片2

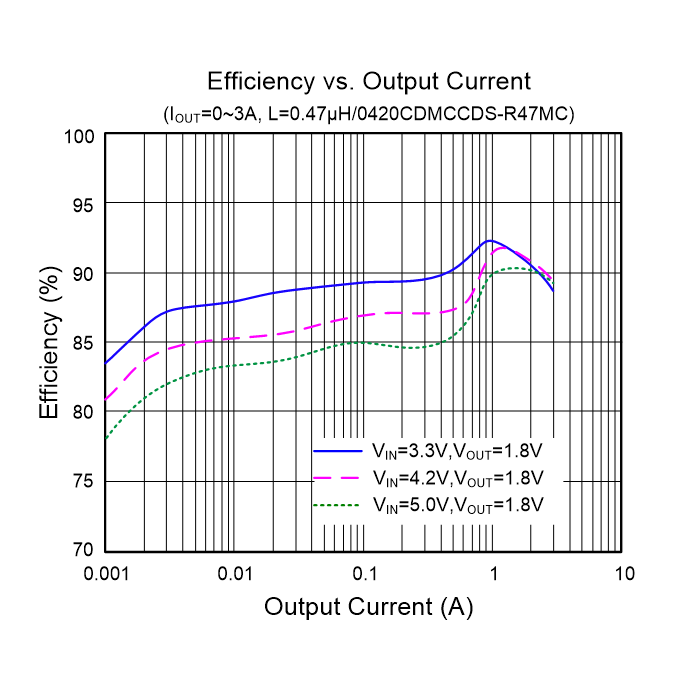

      Photo of evaluation board

    EVB_ SY80703SYC

    EVB_ SY80703SYC_1 is intended for evaluating 2.4MHz, 3A synchronous Buck regulator. It features Enable control.
