High Efficiency 3.0MHz, 0.6A Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number | SY20213BDTC |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 1.85 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Switching frequency (min)(kHz) | 3000 |
|---|
| Switching frequency (max)(kHz) | 3000 |
|---|
| Vout (min) (V) | 0.4 |
|---|
| Vout (max) (V) | 5 |
|---|
| Iout (max) (A) | 0.6 |
|---|
| Vout2 (min)(V) | |
|---|
| Vout2 (max )(V) | |
|---|
| Iout2 (max)(A) | |
|---|
| Vref accuracy (±%) | 2 |
|---|
| Vout accuracy(±%) | |
|---|
| Control mode | Clock+Ipeak |
|---|
| Duty cycle (max)(%) | 100 |
|---|
| Operation mode | FCCM/PFM Selectable |
|---|
| Iq (typ) (uA) | 40 |
|---|
| Features | Soft start |
|---|
| Package | DFN1.45×1-6 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- 1.85~5.5V Input Voltage Range
- 3MHz Switching Frequency
- 40μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (PFET/NFET): 350mΩ/250mΩ
- Fixed 100μs Soft-start Time
- PFM/CCM Operation Mode During Light Load Programed by MODE Pin
- Hic-cup Mode Protection for Hard Short Condition
- RoHS Compliant and Halogen Free
- Compact Package: DFN1.45x1-6
The SY20213B is a high efficiency 3MHz synchronous step down DC/DC regulator IC capable of delivering up to 0.6A output current. It can operate in PFM or CCM mode during light load programed by MODE pin. It can operate over a wide input voltage range from 1.85V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

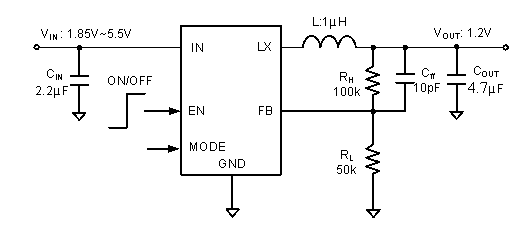

The EVB_SY20213BDTC is intended for evaluating 3MHz, 0.6A, 1.85~5.5V input, 1.2V output synchronous Buck regulator. It features enable control, output voltage selection inputs.
