4.5-16V Input, 15A Output, Step Down DC/DC Converter
| Part Number | SY20688VVC |
|---|
| Vin_min (V) | 4.5 |
|---|
| Vin_max (V) | 16 |
|---|
| Io_max (A) | 15 |
|---|
| Vref Accuracy | |
|---|
| Efficiency up to | 92% @ 12VIN, 3.3VOUT |
|---|
| Fsw (MHz) | Adj |
|---|
| Iq (uA) | |
|---|
| Rdson1 | |
|---|
| Rdson2 | |
|---|
| Interface | |
|---|
| Package | QFN7×8-52 |
|---|
- Wide Input Voltage Range: 4.5V to 16V. Capable of 15A Constant Output Current
- High Output Voltage Accuracy Over Temperature Range
- Instant PWM Architecture to Achieve Fast Transient Response
- Pseudo 600kHz, 800kHz and 1000kHz Switching Frequency Selection
- Reliable Protection Mode:
- Auto-recovery Mode for UVP, UVLO, OTP and OVP
- Hic-cup Mode for OCP and SCP
- Start-up with Pre-biased Voltage
- Adjustable Input Voltage UVLO by EN Pin
- Adjustable Soft-start Time Limits the Inrush Current
- Remote Sensing at Point of Load Side
- Power Good Indicator
- Compact Package: QFN7×8-52
Evaluation Board

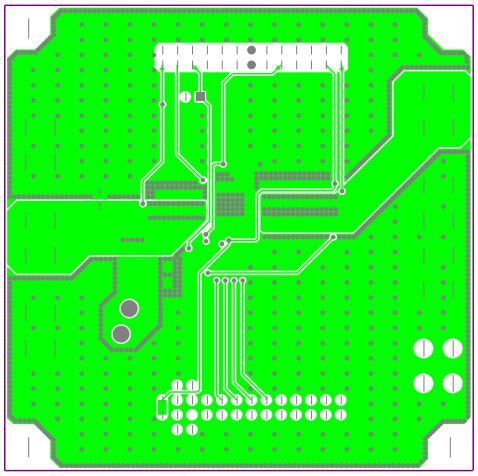

Photo of evaluation board

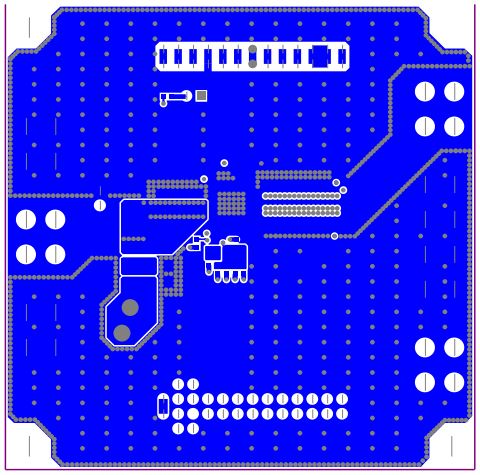

Photo of evaluation board

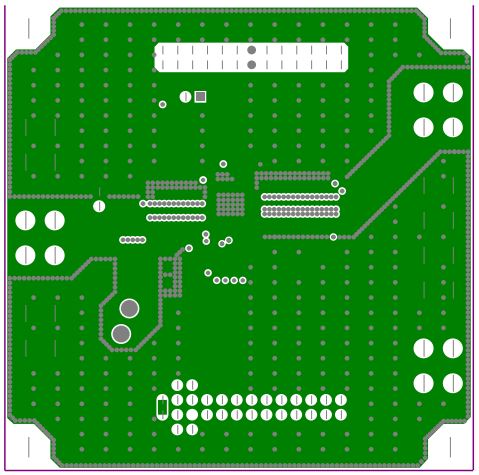

Photo of evaluation board

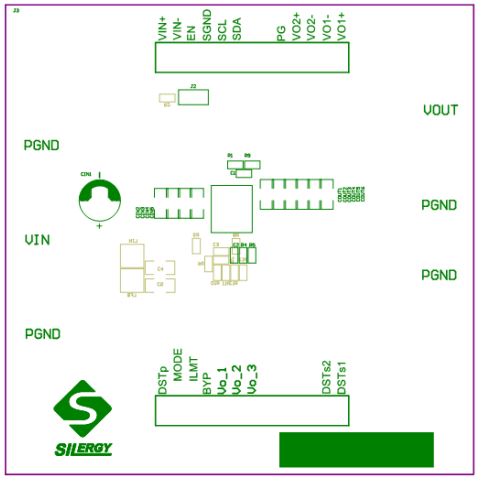

Photo of evaluation board

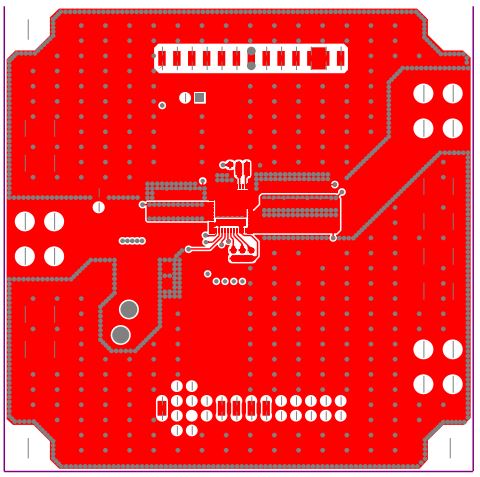

Photo of evaluation board
The EVB_SY20688VVC is used to evaluate 600/800/1000kHz, 15A inductor built-in synchronous Buck regulator SY20688VVC.
